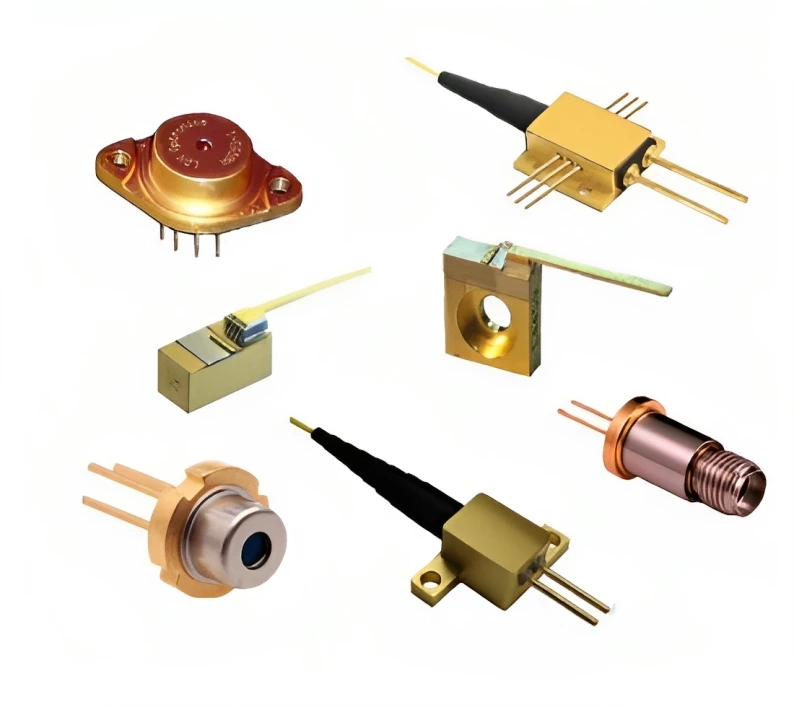

Thumbnail of LDX-3620-808: 808nm 6000mW Multimode Laser Diode photo 1

Description

The LDX-XXXX-808 is a high-power, multimode laser diode designed to provide reliable and efficient laser performance. With a wavelength of 808nm, it offers exceptional output power suitable for a wide range of applications. This laser diode is available in various configurations to meet your specific requirements.

LDX-3620-808: 808nm 6000mW Multimode Laser Diode

Visit the RPMC Lasers, Inc. Store

Specifications

Center Wavelength: 0.808 um
Output Power: 6000 mW
Operating Temperature: 25 °C
Emitter Size: 200 um
Output From Fiber: 4800 mW
Min Fiber Size HHL & BTF: 200 um
Min Fiber Size 9mm SMA: 350 um
Threshold Curren: 750 mA
Operating Current: 5500 mA
Operating Voltage: 1.8 V
Beam Divergence (FWHM): 7 θ || (°)
Beam Divergence (FWHM): 36 θ⊥ (°)
Spectral Width (FWHM): 1.8 nm
Polarization: TE

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-power output: The LDX-XXXX-808 offers up to 10,000mW of output power in free space and up to 8,000mW from the fiber, making it suitable for a wide range of applications.
  • High efficiency: This laser diode is designed for high efficiency, ensuring reliable and
    consistent performance.
  • Customization options: RPMC Lasers Inc. provides custom packaging and design options to meet your specific needs.
  • Wide wavelength range: Custom wavelengths and laser designs are available to suit your application requirements.

Applications

  • Laser material processing
  • Medical equipment
  • Laser-based sensors
  • Research and development
  • Fiber laser pumping

Frequently Asked Questions

What is the wavelength of the LDX-3620-808 laser diode?
The wavelength of the LDX-3620-808 laser diode is 808nm.
What is the output power of the LDX-3620-808 laser diode?
The output power of the LDX-3620-808 laser diode is 6000mW in free space packages or 4800mW from the fiber in fiber coupled packages.
What applications is the LDX-3620-808 laser diode suitable for?
The LDX-3620-808 laser diode is suitable for diode laser solutions, scientific and industrial applications, and OEM applications.
Is custom packaging available for the LDX-3620-808 laser diode?
Yes, custom packaging is available for the LDX-3620-808 laser diode.
Are custom wavelengths and laser designs available for the LDX-3620-808 laser diode?
Yes, custom wavelengths and laser designs are available for the LDX-3620-808 laser diode.

Got more questions? Use the inquiry form to ask the supplier directly.
