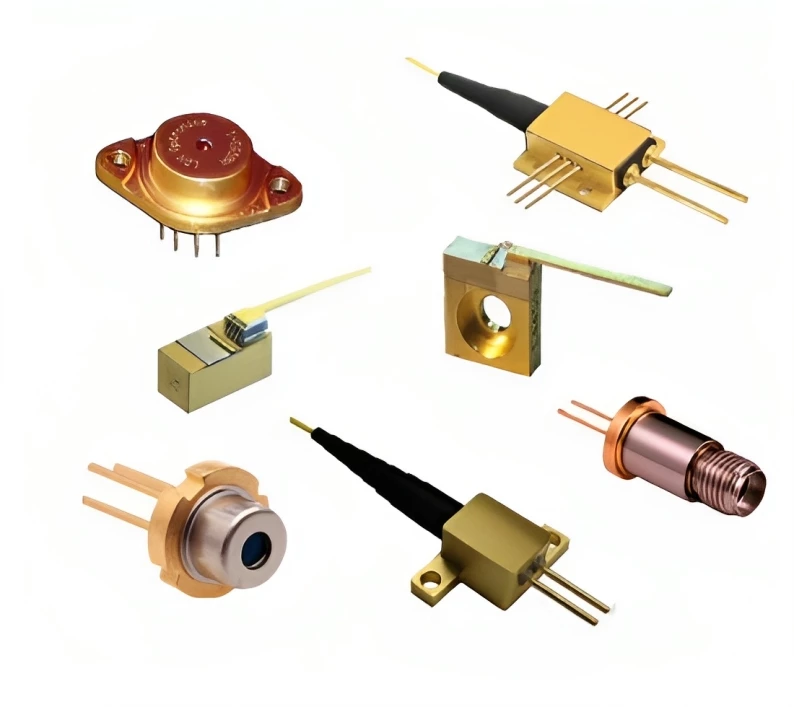

Thumbnail of LDX-3520-860: 860nm 5000mW Multimode Laser Diode photo 1

Description

The LDX-XXXX-860 is a versatile multimode laser diode with a wavelength of 860nm. It offers high output power and dynamic range, making it suitable for a wide range of applications.

Custom packaging options are available, and custom wavelengths and laser designs can be accommodated upon request.

LDX-3520-860: 860nm 5000mW Multimode Laser Diode

Visit the RPMC Lasers, Inc. Store

Specifications

Center Wavelength: 0.86 um
Output Power: 5000 mW
Operating Temperature: 25 °C
Threshold Current: 750 mA
Operating Current: 4800 mA
Operating Voltage: 1.8 V
Beam Divergenc E (FWHM): 7 θ// (°)
Spectral Width FWHM: 3.0 nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 860nm
  • Output Power: Up to 5000mW (free space), Up to 4000mW (fiber)
  • High output power and dynamic range
  • High efficiency
  • Custom packaging available
  • Custom wavelengths and laser designs are available

Applications

  • Laser diode modules
  • Fiber optic communication
  • Industrial laser systems
  • Research and development
  • Biophotonics applications
  • Defense and aerospace technology

Frequently Asked Questions

What is the output power of the LDX-3520-860 laser diode?
The LDX-3520-860 laser diode produces 5000mW in free space packages or 4000mW from the fiber in fiber coupled packages.
What is the wavelength of the LDX-3520-860 laser diode?
The LDX-3520-860 laser diode has a wavelength of 860nm.
What applications is the LDX-3520-860 laser diode suitable for?
The LDX-3520-860 laser diode is suitable for diode laser solutions, scientific and industrial applications, and OEM applications.
Is custom packaging available for the LDX-3520-860 laser diode?
Yes, custom packaging is available for the LDX-3520-860 laser diode.
Are custom wavelengths and laser designs available for the LDX-3520-860 laser diode?
Yes, custom wavelengths and laser designs are available for the LDX-3520-860 laser diode.

Got more questions? Use the inquiry form to ask the supplier directly.
