LDX-3310-860 Multimode Laser Diode 860nm
Description
The LDX-XXXX-860 is a versatile multimode laser diode with a wavelength of 860nm. It offers high output power and dynamic range, making it suitable for a wide range of applications.
Custom packaging options are available, and custom wavelengths and laser designs can be accommodated upon request.
LDX-3310-860 Multimode Laser Diode 860nm
Specifications |
|
|---|---|
| Center Wavelength: | 0.860 um |
| Output Power: | 3000 mW |
| Operating Temperature: | 25 °C |
| Threshold Current: | 400 mA |
| Operating Current: | 2800 mA |
| Operating Voltage: | 1.8 V |
| Beam Divergence (FWHM): | 7 θ// (°) |
| Spectral Width (FWHM): | 3 nm |
Features
- Wavelength: 860nm
- Output Power: Up to 5000mW (free space), Up to 4000mW (fiber)
- High output power and dynamic range
- High efficiency

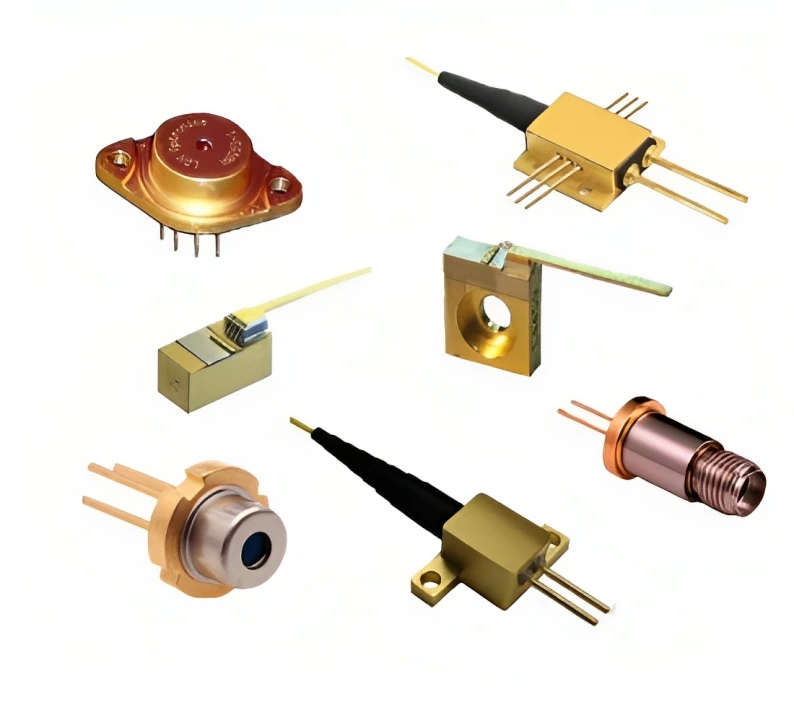

- Custom packaging available
- Custom wavelengths and laser designs are available
Applications
- Laser diode modules
- Fiber optic communication
- Industrial laser systems
- Research and development
- Biophotonics applications
- Defense and aerospace technology
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The wavelength of the LDX-3310-860 laser diode is 860nm.
The LDX-3310-860 laser diode produces 3000mW from a 100um emitter in the free space packages or 2400mW from the fiber in the fiber coupled packages.
The LDX-3310-860 laser diode can be used in diode laser solutions, scientific and industrial applications, and OEM applications.
Yes, custom packaging is available for the LDX-3310-860 laser diode.
Yes, custom wavelengths and laser designs are available for the LDX-3310-860 laser diode.
