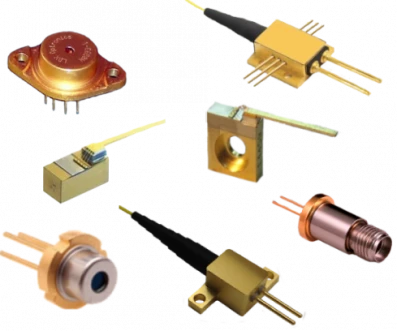

Thumbnail of LDX-3115-685: 685nm 1200mW Multimode Laser Diode photo 1

Description

This 685nm diode laser produces 1200mW from a 150um emitter in the free space packages or 960mW from the fiber in the fiber coupled packages. It has a low threshold current and high slope efficiency, which results in a low operating current which enhances reliability.



LDX-3115-685: 685nm 1200mW Multimode Laser Diode

Visit the RPMC Lasers, Inc. Store

Specifications

Center Wavelength: 0.685 um
Output Power: 1200 mW
Emitter Size: 150 um

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 685nm
  • Output Power:  1200mW free space, 960mW from the fiber
  • High output power and dynamic range
  • High efficiency
  • Custom packaging available
  • Custom wavelengths and laser designs available

Applications

  • Medical Applications: Laser diodes in the 680nm-760nm range are often used in medical devices for procedures such as photodynamic therapy and laser surgery.
  • Industrial Applications: These laser diodes are suitable for industrial applications including material processing, laser cutting, and welding.
  • Scientific Research: The precise wavelength and power output make these diodes ideal for scientific experiments and research in fields such as spectroscopy and microscopy.
  • Telecommunications: Laser diodes are used in fiber optic communications for data transmission over long distances.
  • Consumer Electronics: These diodes can be used in devices such as laser pointers, barcode scanners, and optical disc drives.
  • Defense and Aerospace: The reliability and precision of these laser diodes make them suitable for use in targeting systems and rangefinders.
  • Security Systems: Laser diodes are used in security systems for intrusion detection and surveillance.

Frequently Asked Questions

What is the output power of the LDX-3115-685 laser diode?
The LDX-3115-685 laser diode produces 1200mW from a 150um emitter in the free space packages or 960mW from the fiber in the fiber coupled packages.
What is the wavelength of the LDX-3115-685 laser diode?
The wavelength of the LDX-3115-685 laser diode is 685nm.
Is the LDX-3115-685 685nm NIR laser diode customizable?
Yes, the LDX-3115-685 laser diode has custom packaging available and custom wavelengths and laser designs available.
What is the operating temperature range of the LDX-3115-685 laser diode?
The operating temperature range of the LDX-3115-685 laser diode is not provided in the product description.
What is the polarization of the LDX-3115-685 685nm NIR laser diode?
The polarization of the LDX-3115-685 laser diode is not provided in the product description.

Got more questions? Use the inquiry form to ask the supplier directly.
