Description
This 680nm diode laser produces 1200mW from a 150um emitter in the free space packages or 960mW from the fiber in the fiber coupled packages. It has a low threshold current and high slope efficiency, which results in a low operating current which enhances reliability.
LDX-3115-680: 680nm Multimode Laser Diode
Specifications
| Center Wavelength: | 0.68 um |
|---|---|
| Output Power: | 1200 mW |
| Emitter Size: | 150 um |
Download Data Sheet
Features
- Wavelength: 680nm
- Output Power: 1000mW free space, 960mW from the fiber
- High output power and dynamic range
- High efficiency

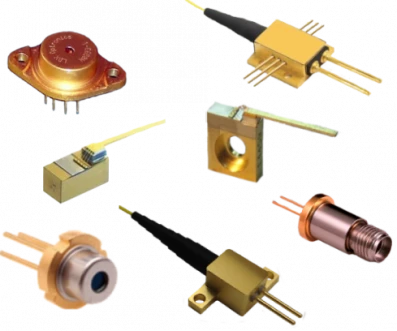

- Custom packaging available
- Custom wavelengths and laser designs available
Frequently Asked Questions
What is the output power of the LDX-3115-680 laser diode?
The LDX-3115-680 laser diode produces 1200mW from a 150um emitter in the free space packages or 960mW from the fiber in the fiber coupled packages.
What is the wavelength of the LDX-3115-680 laser diode?
The LDX-3115-680 laser diode has a wavelength of 680nm.
Is custom packaging available for the LDX-3115-680 laser diode?
Yes, custom packaging is available for the LDX-3115-680 laser diode.
What is the operating temperature range for the LDX-3115-680 laser diode?
The operating temperature range for the LDX-3115-680 laser diode is not specified in the product description.
Are custom wavelengths and laser designs available for the LDX-3115-680 laser diode?
Yes, custom wavelengths and laser designs are available for the LDX-3115-680 laser diode.
