LDX-3105-860: 860nm Multimode Laser Diode
Description
LDX Optronics’ 860–1030 nm Laser Diodes offer superior performance for fiber-coupled and free-space applications, combining reliability, high output power, and narrow spectral width. Designed with precision in mind, these laser diodes feature emitter sizes optimized for efficient fiber coupling, enabling seamless integration into advanced optical systems. They maintain excellent thermal stability across a wide operating temperature range and provide low threshold currents for energy-efficient operation.
Available in various packaging options including HHL, BTF, and 9 mm SMA, these diodes cater to diverse system requirements. Their tight beam divergence and strong polarization properties ensure high beam quality, ideal for demanding applications such as medical instrumentation, industrial sensing, and optical communications. LDX Optronics' commitment to stringent quality standards ensures each laser diode delivers consistent performance with minimal degradation over time.
Whether you are building precision measurement devices, developing laser pumping solutions, or designing cutting-edge optical sensors, LDX Optronics’ 860–1030 nm laser diodes offer the power, efficiency, and reliability you need for optimal results.
LDX-3105-860: 860nm Multimode Laser Diode
Specifications |
|
|---|---|
| Center Wavelength: | 0.86 um |
| Output Power: | 1000 mW |
| Emitter Size: | 50 mm |
| Minimum Fiber Size (HHL & BTF): | 100 um |
| Minimum Fiber Size (9 Mm SMA): | 200 um |
| Output From Fiber: | 800 mW |
| Operating Temperature: | 25 °C |
| Threshold Current (Typical): | 150 mA |
| Operating Current (Typical): | 1000 mA |
| Operating Voltage (Typical): | 1.8 V |
| Beam Divergence (FWHM) θ//: | 7 |
| Beam Divergence (FWHM) θ⊥: | 40 |
| Spectral Width (FWHM): | 3.0 |
| Polarization: | TE |
| Acceptable Packages: | 1.4-16 |
Features
- Wide Wavelength Range: Covers 860 nm to 1030 nm for versatile application support
- High Output Power: Optimized for efficient fiber and free-space coupling
- Low Threshold Current: Ensures high energy efficiency and reduced heat generation
- Excellent Beam Quality: Low divergence and narrow spectral width for precision targeting

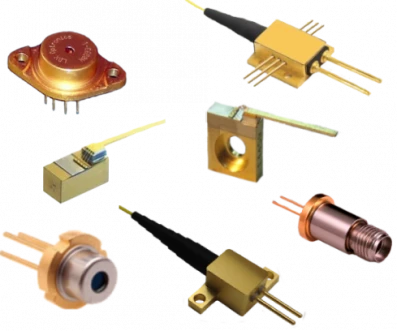

- Flexible Packaging: Available in HHL, BTF, and 9 mm SMA packages
- Thermally Stable Operation: Reliable performance across a wide temperature range
Applications
- Medical Instrumentation: Ideal for diagnostic and therapeutic laser systems.
- Industrial Sensing and Inspection: Enhances performance in precise measurement systems.
- Fiber Optic Communications: Reliable source for high-speed data transmission.
- Laser Pumping: Suitable for pumping solid-state or fiber lasers.
- Scientific Research: Perfect for laboratory use requiring high beam quality and stability.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The wavelength of the LDX-3105-860 laser diode is 860nm.
The LDX-3105-860 laser diode produces 1000mW from a 50um emitter in the free space packages or 800mW from the fiber in the fiber coupled packages.
The LDX-3105-860 laser diode is suitable for diode laser solutions, scientific and industrial applications, and OEM applications.
Yes, custom packaging is available for the LDX-3105-860 laser diode.
Yes, custom wavelengths and laser designs are available for the LDX-3105-860 laser diode.
