Description
The FVLD-520-1000M is a multimode laser diode with a continuous wave (CW) output power of 1000mW at 520nm. It is supplied in a 9mm TO can with Zener Diode. This laser diode is suitable for various opto-electronic applications.

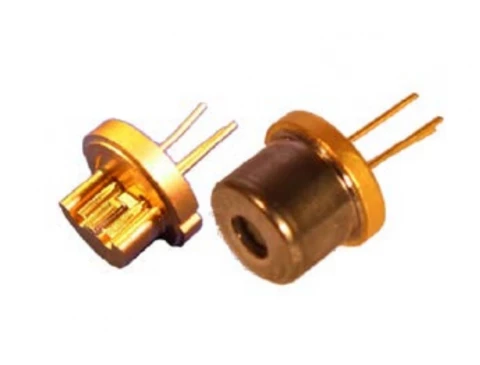

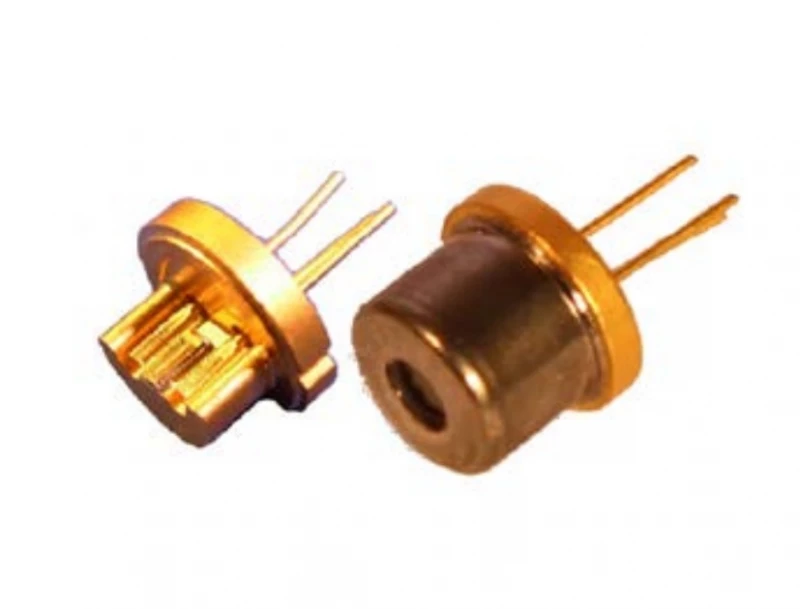

Laser Diode FVLD-520-1000M
Specifications
| Center Wavelength: | 0.52 um |
|---|---|
| Output Power: | 1000 mW |
| Forward Current: | 1.8 A |
| Reverse Current (LD): | 85 mA |
| Storage Temperature: | -40 to +85 ℃ |
| Operating Temperature (Case): | 0 to +50 °C |
| Threshold Current: | 300 mA |
| Forward Voltage: | 4.6 V |
| Slope Efficiency: | 0.83 W/A |
| Beam Divergence Parallel: | 5 deg |
| Beam Divergence Perpendicular: | 55 deg |
| Beam Pointing Accuracy: | ±5 deg |
Download Data Sheet
Features
- Multimode laser diode with 1000mW CW output power
- Wavelength of 520nm for efficient performance
- Supplied in a 9mm TO can with Zener Diode
- Suitable for various opto-electronic applications
Applications
- Laser pointers
- Laser modules
- Laser displays
- Laser-based instruments
- Scientific research
- Industrial applications
Frequently Asked Questions
Is the FVLD-520-1000M laser diode available for purchase?
The product description states that it is preliminary, so it is unclear if the FVLD-520-1000M laser diode is currently available for purchase.
What applications is the FVLD-520-1000M laser diode suitable for?
The FVLD-520-1000M laser diode is suitable for use in various opto-electronic applications.
What is the package size of the FVLD-520-1000M laser diode?
The FVLD-520-1000M laser diode is supplied in a 9mm TO can with Zener Diode.
What is the output power of the FVLD-520-1000M laser diode?
The FVLD-520-1000M laser diode has a 1000mW CW output power at 520nm.
What type of laser diode is the FVLD-520-1000M?
The FVLD-520-1000M is a multimode laser diode.
