FP Laser Diode 2700nm 5mW - FNPL-5S-2700-FP - Get a price quote from FLC

Description

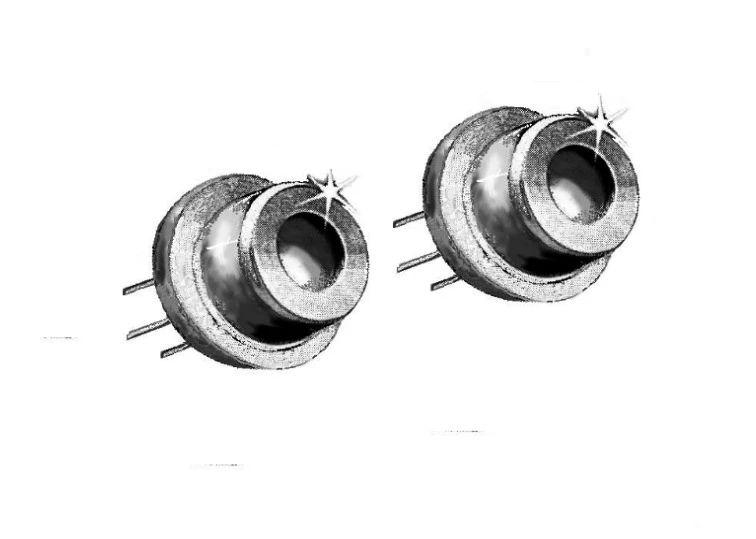

The FNPL-5S-2700-FP is a continuous wave (CW) semiconductor laser diode designed to operate at a wavelength of 2700nm. It is available in standard TO-5.6 and TO-9 packages, with optional monitor diode for power output stabilization.

The TO-5 package also offers integrated features like a thermoelectric cooler (TEC), thermistor, and monitor diode. Custom mounts can be provided upon request.

Specifications

Center Wavelength:	2.7 um
Output Power:	5 mW
Threshold Current:	60 mA
Forward Current:	100 mA
Operating Voltage:	4 V
Beam Divergence (Parallel):	30 deg.
Beam Divergence (Perpendicular):	50 deg.
Emitting Area (WxH):	40x13 µm
Slope Efficiency:	0.1 mW/mA
Operating Temperature:	-20 to +50 °C
Storage Temperature:	-40 to +80 °C

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Broad emission spectrum
Excellent reliability
Various packaging options available
Optional monitor diode for power output stabilization
Integrated TEC, thermistor, and monitor diode (TO-5 package)
Custom mounts available upon request

Applications

High-performance gas sensing
Gas sensing applications
Sensing of liquids
Free space communications
Spectroscopy

Request Quote

To: FLC - Frankfurt Laser Company GmbH
Re: FP Laser Diode 2700nm 5mW - FNPL-5S-2700-FP

Name

Work Email

Organization

Country

Phone

Qty.

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: Germany
Sold by:: FLC - Frankfurt Laser Company GmbH
On FindLight:: since 2015

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the wavelength of the FNPL-5S-2700-FP laser diode?

The FNPL-5S-2700-FP laser diode operates at a wavelength of 2700nm.

What packages is the FNPL-5S-2700-FP laser diode available in?

The FNPL-5S-2700-FP laser diode is available in standard TO-5.6 and TO-9 packages.

What are the integrated features of the TO-5 package?

The TO-5 package offers integrated features like a thermoelectric cooler (TEC), thermistor, and monitor diode.

What applications is the FNPL-5S-2700-FP laser diode suitable for?

The FNPL-5S-2700-FP laser diode is suitable for high-performance gas sensing, gas sensing applications, sensing of liquids, free space communications, and spectroscopy.

What is the typical operating temperature range for the FNPL-5S-2700-FP laser diode?

The typical operating temperature range for the FNPL-5S-2700-FP laser diode is -20 to +50 °C.
