Description

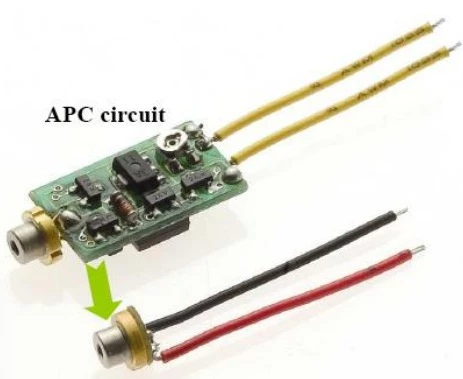

he FARL-7S-650-TO56-85°-APC is a laser diode designed for high-temperature operation at 635nm. It features a built-in automatic power control (APC) mechanism, ensuring stable output power.
With its high reliability and easy-to-use voltage-driven operation, this laser diode is suitable for various high-precision measuring instruments, industrial markers, survey and engineering instruments, and more.
LASER DIODE FARL-7S-650-TO56-85°-APC
Specifications
Center Wavelength: | 0.65 um |
---|---|
Output Power: | 7 mW |
Operating Current: | 26 mA |
Variable Resistor: | 9 KΩ |
Beam Divergence Parallel: | 6 deg. |
Beam Divergence Perpendicular: | 32 deg. |
Static Alignment: | ±3 deg. |
Positional Accuracy: | ±80 µm |
Power-Temp. Stability (25-85°C): | -10 % |
Power-Vcc Stability (2.5-6.0V): | -10 % |
Features
- High-temperature operation (85°C)
- Built-in automatic power control (APC)
- High reliable operation
- Stable output power
- Voltage-driven and easy to use
Applications
- High precision measuring instruments
- High precision industrial markers
- Survey and engineering instruments
Frequently Asked Questions
What is the application of the FARL-5S-650-TO56 laser diode?
The FARL-5S-650-TO56 laser diode can be used as a general-purpose red laser light source, in industrial laser markers, measuring instruments, and laser pointers.
What is the reliability of the FARL-5S-650-TO56 laser diode?
The FARL-5S-650-TO56 laser diode is highly reliable due to its high precision assembly.
What is the mode of operation of the FARL-5S-650-TO56 laser diode?
The FARL-5S-650-TO56 laser diode operates in FFP single lateral mode.
What is the wavelength of the FARL-5S-650-TO56 laser diode?
The wavelength of the FARL-5S-650-TO56 laser diode is 650nm.
What is the output power of the FARL-5S-650-TO56 laser diode?
The output power of the FARL-5S-650-TO56 laser diode is 5mW.
