EP1550-NLW-B-100: 1550nm Narrow Linewidth Laser Diode

Description

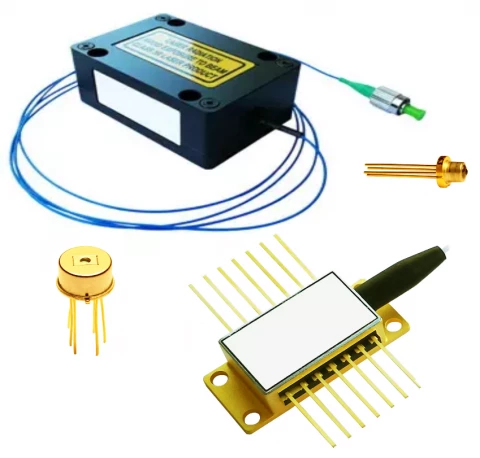

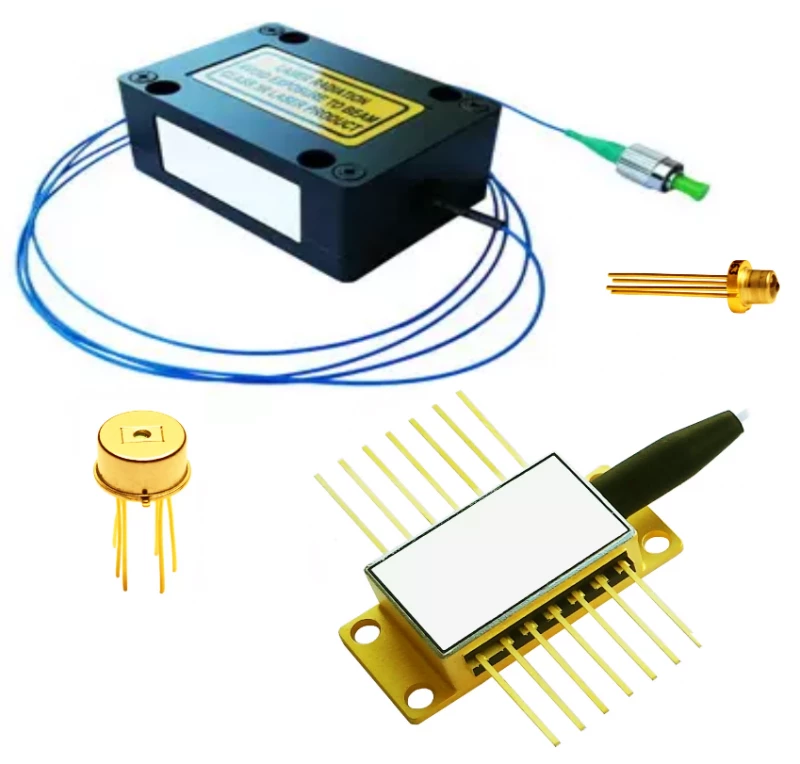

The REP series includes high-performance, tunable, single-frequency (DFB-like) diode lasers and Fabry-Perot laser diodes in wavelengths from 1270nm thru 2350nm, designed to address challenges in Gas Sensing, LIDAR, Spectroscopy, and Telecom. The REP series includes high-power and narrow linewidth options, covering various product ranges at the most popular wavelengths, and providing customizable units with multiple packaging options, including the Fiber coupled 14-pin butterfly, TO39 (w/TEC), and TO56.

Benefits:

Discrete-Mode manufacturing technology provides industry-leading performance and fully scalable, consistent production and integration capability.
Highly customizable units with several package options enable customers to choose the right product for their specific needs.
High-power and narrow linewidth options allow customers to optimize performance for their particular applications.
Various product ranges at the most popular wavelengths provide customers with a wide range of options to choose from.

Specifications

Center Wavelength:	1.55 um
Output Power:	5 mW
Optical Linewidth:	100 kHz
Wavelength Tolerance:	+/- 2 nm
Side Mode Suppression Ratio (SMSR):	40 dB
Threshold Current:	40 mA
Temperature Tuning Coefficient:	0.09 nm/◦C
Current Tuning Coefficient:	3 pm/mA
Slope Efficiency:	0.03 mW/mA
Thermistor Resistance:	10 kΩ
Thermistor Temp. Coefficient:	-4.4 %/◦C

Download Data Sheet

Features

EP1550-NLW-B-100: 1550nm Narrow Linewidth Laser Diode offers solid performance over a wide operating conditions at an affordable price. It comes with the following key features:

Discrete-Mode (DM) Technology
Excellent Wavelength Tolerance
Narrow Optical Linewidth of less than 130kHz
Low Temperature Tuning Coefficient
Robust 14-pin packaging
Powered by +5 V DC source
Single Mode Fiber, FC/APC Connector
Tunable by Temperature and Current

Applications

Ideal for Telecom and LIDAR Applications: REP1550-NLW-B-100: 1550nm Narrow Linewidth Laser Diode ensures consistent, mode-hop-free operation over wide operating conditions. Thanks to solid performance characteristics, they are ideal for coherent communication and metrology applications.

Name

Work Email

Organization (recommended)

Country

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

RPMC Lasers, Inc.

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the REP1550-NLW-B laser diode?

The REP1550-NLW-B is a 1550nm stabilized narrow-linewidth laser diode designed for gas sensing, LIDAR, spectroscopy, and telecom applications.

What are the benefits of the REP series?

The REP series offers industry-leading performance, customizable units with multiple packaging options, high-power and narrow linewidth options, and various product ranges at the most popular wavelengths.

What are the key features of the EP1550-NLW-B-100 laser diode?

The EP1550-NLW-B-100 laser diode features discrete-mode technology, excellent wavelength tolerance, a narrow optical linewidth of less than 130kHz, low temperature tuning coefficient, and robust 14-pin packaging.

What are the applications of the REP1550-NLW-B-100 laser diode?

The REP1550-NLW-B-100 laser diode is ideal for telecom and LIDAR applications, ensuring consistent, mode-hop-free operation over wide operating conditions.

What is the laser safety classification of the REP1550-NLW-B laser diode?

The REP1550-NLW-B laser diode is a Class 3R Laser Product as defined by International Standard IEC 60825-1, emitting invisible laser radiation from the end of the fiber or connector. Laser safety labels are affixed to the outside of the shipping carton.
