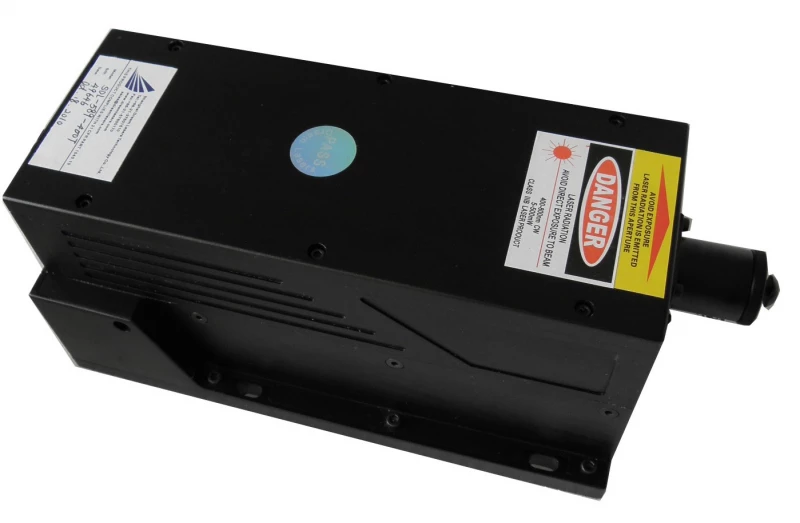

50W 808nm Diode Laser with Customizable Options

Name: 50W 808nm Diode Laser with Customizable Options
Brand: Shanghai Dream Lasers Technology Co., Ltd.
Availability: InStock

Description

The SDL-808-LM-50000T is a high-power diode laser system emitting at 808nm. With an output power of 50W, this laser is designed for a wide range of industrial and scientific applications. It features TTL modulation and customizable options such as longer operation periods, improved power stability, analog modulation, line output versions, and fiber-coupled versions. The laser system is compact, easy to operate, and has a long lifetime of up to 10,000 hours.

Specifications

Center Wavelength:	0.808 um
Output Power:	4000000 mW

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

4 or 8 hours Longer operation period output power stability are available on request.
Better (<3%,<1%) power stability are available on request.
Analog Modulation >2KHz or higher as option.
Up to 30Khz TTL modulation on request.
Line output version are available on request.
Fiber coupled version are available on request.
Longer warranty on request.
Other custom-made design is available, please contact us for details.

Applications

Industrial manufacturing: laser cutting, welding, and marking
Medical: dermatology, surgical procedures, and therapy
Scientific research: materials processing, spectroscopy, and microscopy
Defense and security: LIDAR, target designation, and countermeasures

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Ships from:

China

Sold by:

Shanghai Dream Lasers Technology Co., Ltd.

On FindLight:

since 2023

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the output power of the SDL-808-LM-50000T diode laser?

The output power of the SDL-808-LM-50000T diode laser is 50W.

What is the wavelength of the SDL-808-LM-50000T diode laser?

The wavelength of the SDL-808-LM-50000T diode laser is 808±5nm.

Can the power stability of the SDL-808-LM-50000T diode laser be improved?

Yes, better power stability (<3%, <1%) is available on request.

Is analog modulation available for the SDL-808-LM-50000T diode laser?

Yes, analog modulation (>2KHz or higher) is available as an option.

Are there any customizable options for the SDL-808-LM-50000T diode laser?

Yes, customizable options such as longer operation periods, improved power stability, analog modulation, line output versions, and fiber-coupled versions are available on request.
