Description
The Amonics High Power Femtosecond Fiber Laser (AFSFL Series) is an advanced passive mode-locked fiber laser designed to generate ultra-short soliton pulses without external clocks. It offers selectable pulse widths from 100 fs to 600 fs and tunable output power levels up to 300 mW, ensuring versatility for various ultrafast applications. The laser operates in the 1535 nm to 1565 nm wavelength range with typical repetition rates between 10 MHz and 20 MHz.
Featuring a turnkey microprocessor-controlled design, it comes with alarms, status indicators, and integrated RS232 or optional Ethernet computer interfaces for easy control, diagnostics, and data acquisition.
Engineered for exceptional performance and reliability, it delivers linear polarized outputs (AFSFL-PM model) with a high polarization extinction ratio. Its low timing jitter, high output isolation, and optional phase-lock loop make it ideal for demanding applications such as 3D optical micro/nano fabrication, nonlinear ultrafast spectroscopy, terahertz wave generation, and nano-material spectroscopy.

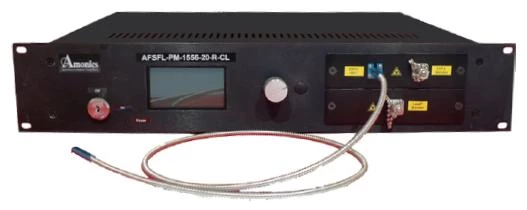

Available in benchtop or 2U rackmount casings, the AFSFL is manufactured under strict ISO 9001:2015 certified quality standards, ensuring durability and operational excellence in advanced photonics laboratories worldwide.
Femtosecond Fiber Laser - AFSFL-PM-300fs-1mW
Specifications
| Wavelength: | 1550 nm |
|---|---|
| Repetition Rate: | 40 MHz |
| Output Power: | 1 W |
| Pulse Duration: | 300 fs |
| Output Power Options: | 1, 10, 100, 200 mW |
| Wavelength Range: | 1535 - 1565 nm |
| Repetition Rate: | 20 - 40 MHz |
Download Data Sheet
Features
- Ultra-Short Pulse Generation: Passive mode-locking produces soliton pulses without external clocks.
- High Output Power: Delivers up to 300 mW average power for demanding ultrafast applications.
- Selectable Pulse Width: Options of 100 fs, 300 fs, or 600 fs to suit diverse research needs.
- Linear Polarization Output: Ensures stable performance with a typical PER of 23 dB (AFSFL-PM model).
- Low Timing Jitter: Guarantees precise temporal resolution in ultrafast experiments.
- Remote Control Interface: RS232 standard control with optional Ethernet TCP/IP connectivity.
- Turnkey Operation: Microprocessor-controlled with alarms, indicators, and intuitive software.
- Highly Reliable and Durable: Engineered for long-term stable operation under rigorous conditions.
Applications
- 3D Optical Micro/Nano Fabrication: Enables high-precision structuring for micro-machining and nanofabrication.
- Nonlinear Ultrafast Spectroscopy: Ideal for time-resolved studies in material science and physics.
- Terahertz Waves Generation: Facilitates the production of THz radiation for advanced spectroscopy.
- Nano-Material Spectroscopy: Supports ultrafast characterization and analysis of nano-scale materials.
Frequently Asked Questions
What is the Amonics Femtosecond Fiber Laser used for?
What is the output power of the Amonics Femtosecond Fiber Laser?
What is the pulse width of the Amonics Femtosecond Fiber Laser?
What type of output does the Amonics Femtosecond Fiber Laser have?
What type of control interface does the Amonics Femtosecond Fiber Laser have?
