MFL-1: 1um CW Fiber Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description

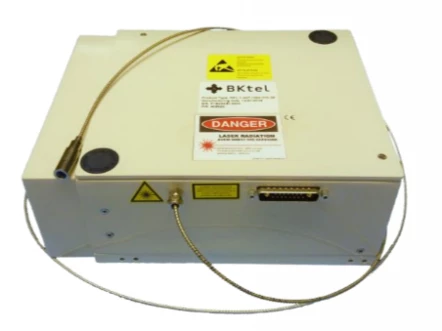

The BKtel MFL-1 1064nm High Power Fiber Laser is an industrial-grade laser solution designed for high-performance applications in test and measurement, materials processing, and general photonics experimentation. Operating in the 1060–1080 nm range, this fiber laser delivers up to 60 W of output power with tunability from 10% to 100%, making it a versatile tool for both research and industrial settings.
Engineered with a rugged 3 mm armored fiber cable and housed in a robust structure, the MFL-1 offers excellent reliability and ease of integration. It supports both continuous wave (CW) and modulated modes with modulation frequencies up to 2 kHz, while maintaining a stable output with power fluctuation within ±2%. The beam features near-diffraction-limited quality (M² ≈ 1.1) and a Gaussian output profile with a 5.0 mm 1/e² beam diameter.
With a compact form factor and RS-232 communication interface, this laser is easily configurable and ideal for environments requiring high power, stability, and flexible output control. Evaluation boards and custom configurations are also available upon request to meet specific application needs.
MFL-1: 1um CW Fiber Laser
Specifications |
|
|---|---|
| Center Wavelength: | 1064 nm |
| Output Power: | 60 W |
| Output Mode: | Continuous Wave (CW), Modulated |
| Beam Quality (M^2): | 1.1 |
| Spectral Linewidth: | Not Specified |
| Output Power Stability: | 1.75% ~ 2% |
| Output Fiber Type: | Other / Non-specified |
| Output Fiber Length: | Not Specified |
| Interface: | RS-232 |
| Cooling: | Air Cooled |
| Electrical Requirements: | Other / Not Specified |
| Modulation Frequency: | 2 kHz |
| Output Power Tunability: | 10% – 100% |
| Beam Profile: | Gaussian |
| Polarization: | Random / Linear |
| Signal Linewidth: | <1 nm |
| Power Supply Voltage: | 24 VDC |
| Operating Temperature Range: | +15 to +30 °C |
| Eam Diameter (1/e²): | 5.0 mm |
| Optical Output: | Collimator |
| Optical Fiber Type: | 3 mm armored cable |
| Communication Interface: | RS-232 |
| Evaluation Board: | Available upon request |
| Custom Configurations: | Available upon request |
Features
- High Output Power: Delivers up to 60 W for demanding applications
- Wavelength Range: Operates between 1060–1080 nm with narrow linewidth <1 nm
- CW and Modulated Modes: Supports continuous and pulsed operation up to 2 kHz
- Excellent Beam Quality: Near-diffraction-limited output with M² of 1.1
- Robust Design: Housed in a durable chassis with armored 3 mm fiber cable
- Flexible Control: RS-232 interface for seamless integration and monitoring
Applications
- Test & Measurement: Provides stable, high-power light sources for optical analysis
- Industrial Applications: Ideal for material processing, welding, or precision machining
- Scientific Research: Supports laboratory use in high-precision photonic experiments
- OEM System Integration: Suitable for custom laser systems requiring fiber-coupled output
Frequently Asked Questions
The MFL-1 laser is available with either standard or polarization maintaining (PM) fiber depending on whether your application calls for linear or random polarization.
Yes, the MFL-1 laser has a robust industrial design and is suitable for a wide range of industrial applications such as welding and cladding.
Yes, the MFL-1 laser offers output power tunability ranging from 10% to 100% of maximum output power.
The MFL-1 laser can provide up to 60W of output power.
The MFL-1 laser has a wavelength of 1064nm.
