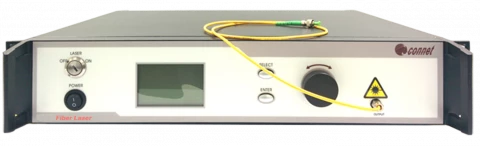

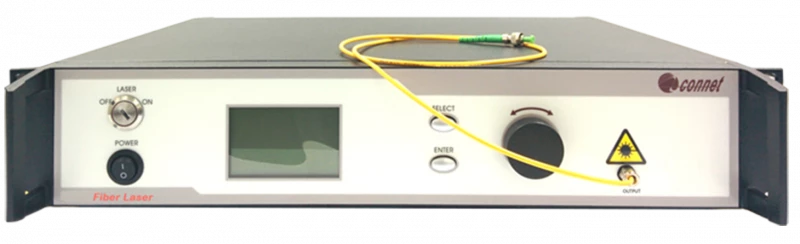

Thumbnail of 2.0um Band MHz Narrow Linewidth Fiber Laser photo 1

Description

The Connet 2.0um Band MHz Narrow Linewidth Fiber Laser is a high-performance continuous wave (CW) fiber laser that operates in the 2.0um wavelength band. It utilizes a master oscillator power amplifier (MOPA) structure with built-in MHz level narrow linewidth seed laser to achieve high output power and excellent performance.

With advanced suppression techniques for fiber nonlinear effects, such as stimulated Brillouin scattering (SBS), it ensures stable operation even at high power levels. The integrated benchtop design and user-friendly interface make it suitable for laboratory applications, and the optional OEM modular laser allows for easy system integration.

2.0um Band MHz Narrow Linewidth Fiber Laser

Visit the Connet Laser Technology Co., Ltd. Store

Specifications

Center Wavelength: 2050 nm
Output Power: 0.1 W
Output Mode: Continuous Wave (CW)
Beam Quality (M^2): 1.05
Spectral Linewidth: Not Specified
Output Power Stability: 0.5% ~ 0.6%
Output Fiber Type: PMF
Output Fiber Length: 0.5 m
Interface: Other / Not-specified
Cooling: Other
Electrical Requirements: 110V - 60Hz, 240V - 50Hz
Fiber Connector: FC/APC
Main Output Fiber Connector: FC/APC or Collimator
Storage Temperature: -40 to +85 °C
Operating Temperature: +10 to +50 °C
Output Power Tunable Range: 10-100 %
Output Isolation: 35 dB
Wavelength Tunable Range: 0.3 nm
Polarization Extinction Ratio (PER): 20 dB
Polarization: Linear
Side-mode Suppression Ratio (SMSR): 40 dB
Linewidth: 1-10 MHz

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • MHz linewidth single frequency output
  • Low relative intensity noise
  • High frequency stability
  • Linear polarization with high polarization extinction ratio (PER)
  • Wide range of wavelength options

Applications

  • Atomic cooling and trapping
  • Coherent and spectral combination
  • Frequency doubling
  • LIDAR or sensing
  • Test and measurement
  • Other scientific research

Frequently Asked Questions

What are the applications of the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser?
The Connet 2.0um Band MHz Narrow Linewidth Fiber Laser is suitable for laboratory applications such as atomic cooling and trapping, coherent and spectral combination, frequency doubling, LIDAR or sensing, test and measurement, and other scientific research.
What are the technical parameters of the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser?
The important technical parameters of the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser are displayed on the LCD on the front panel. The output power is adjustable and easy to operate. It has a MHz linewidth single frequency output, low relative intensity noise, high frequency stability, linear polarization, high PER, and various wavelengths available.
What is the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser?
The Connet 2.0um Band MHz Narrow Linewidth Fiber Laser is a fiber laser that adopts MOPA structure design and built-in MHz level narrow linewidth seed laser to realize high output power through the optimized design of cascaded fiber amplifiers.
What is the ordering information for the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser?
The ordering information for the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser includes the operating wavelength, output power in mW, fiber connector type (FC/APC or collimator), and LP for linear polarization.
What is the output power range of the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser?
The output power range of the Connet 2.0um Band MHz Narrow Linewidth Fiber Laser is 0.5 - 100 mW.
