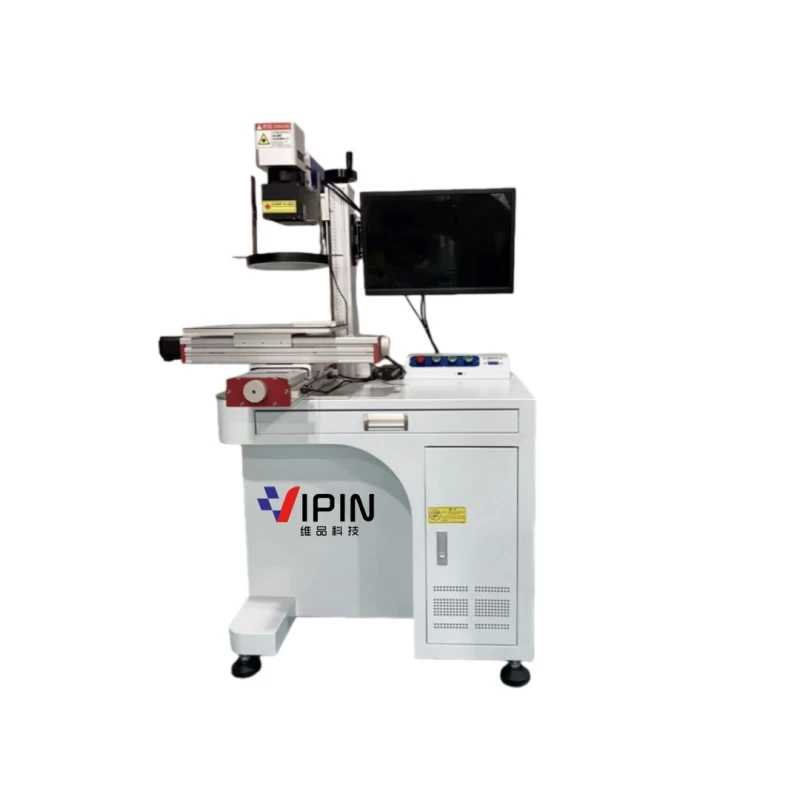

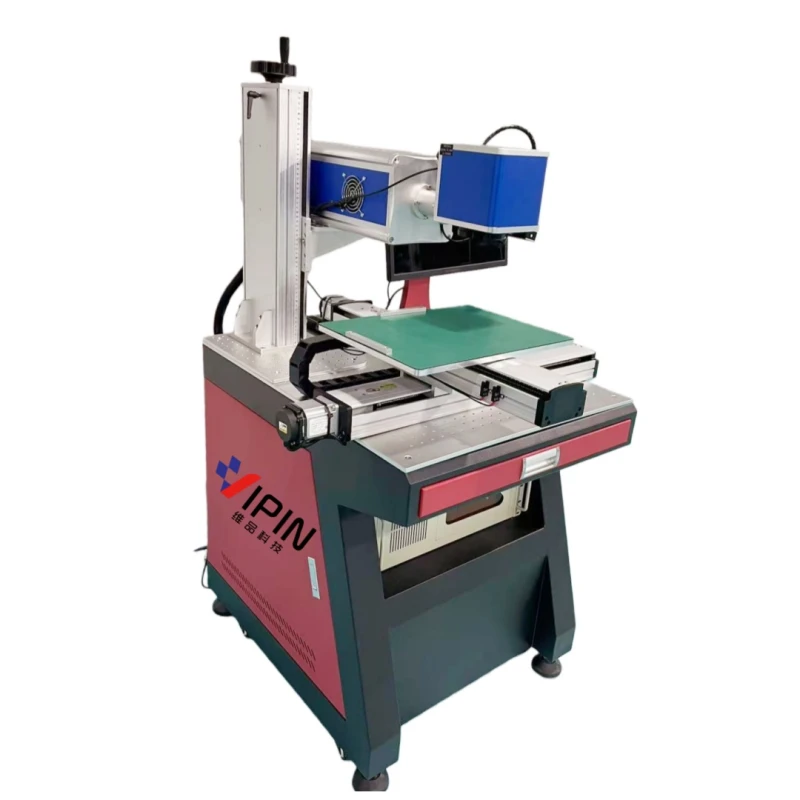

UV Laser Marking Machine with CCD Vision System and XY Platform for PCB and Plastic Marking
The VIPIN-FSD-XY05UV is a 5W UV laser marking machine with CCD visual positioning and XY motion platform, designed for high-precision marking of plastics, glass, and electronic components. Operating at 355 nm, this system enables low-heat “cold” marking, while its vision-guided alignment ensures accurate marking of randomly positioned parts in high-throughput production environments.
The 355 nm UV laser enables “cold marking,” minimizing thermal damage and preventing burning or deformation—ideal for sensitive materials such as plastics, glass, and PCBs.
The integrated CCD visual positioning system uses a high-resolution camera to detect part location and orientation in real time, enabling precise marking without manual alignment and significantly improving production efficiency.
The 300 × 400 mm XY motion platform supports large-area marking and flexible multi-part layouts, making the system suitable for batch processing and automated workflows.
The system supports both UV (355 nm) for plastics and delicate materials and optional fiber (1064 nm) for metals, providing flexibility across a wide range of applications.
One of the standout features of the VIPIN-FSD—XY05UV is its user-friendly operation. The machine is designed to be intuitive, allowing operators to quickly learn and manage its functions. This ease of use is complemented by its ability to save documents and swiftly switch between production lines, significantly reducing downtime and increasing operational efficiency. The machine's capability to mark on PCBs and various product surfaces further underscores its versatility and adaptability in different industrial settings.
In addition to its operational efficiency, the VIPIN-FSD—XY05UV is environmentally friendly, producing no pollution and requiring no consumables. This not only reduces operational costs but also aligns with sustainable business practices. The machine's built-in alarm system ensures that any marking errors are promptly addressed, stopping the process to prevent further issues. This attention to detail and commitment to quality make the VIPIN-FSD—XY05UV/20FB a reliable and valuable asset for any manufacturing operation.
Desktop Laser Engraver CCD Camera EZCAD Software Mark on Metal Plastics VIPin-FSD-XY05UV
Specifications
| Work Area X: | 300 mm |
|---|---|
| Work Area Y: | 400 mm |
| Beam Delivery: | Galvo |
| Laser Source: | Fiber |
| Laser Output Power: | 5 W |
| Laser Wavelength: | 355 nm (UV) |
| Voltage Requirement: | 220V - 50Hz |
| Materials: | Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Wood, Paper, Textile, Granite, Marble, Nylon, Acrylic, Plexiglass |
| Air Assist: | Included |
| Fume Extraction Unit: | Included |
| Safety Enclosure: | Optional |
| Camera Pixel: | 1200W |
| Weight: | Approx 150KG |
| Machine Size: | 600*800*1450mm |
| Language: | Chinese, English |
| Software: | VIPin Laser System |
| Marking Card: | JCZ Card/ PCIE(optional) |
| Light Source Control: | Digital Controller |
| Light Source: | Combo Strip Light/Ring Light |
| Repeating Accuracy: | ±0.03mm |
| Camera Lens: | 12mm |
| Style No.: | FSD-XY05UV |
| Positioning: | CCD Visual Marking Positioning |
| Work Mode: | Laser Fixed |
| Focus Adjustable Mode: | Manual |
| Z Axis: | 0-550mm |
| XY Module Travel: | 300mm*400mm |
| Field Lens Range: | 100mm*100mm |
| Laser Power: | 5W |
| Laser Type: | Fiber |
