Description

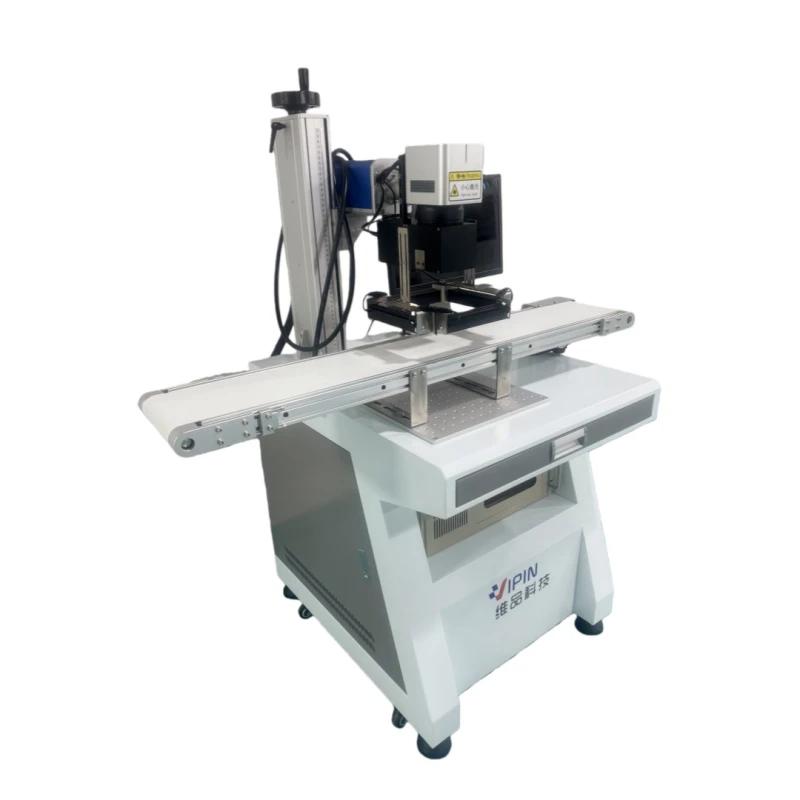

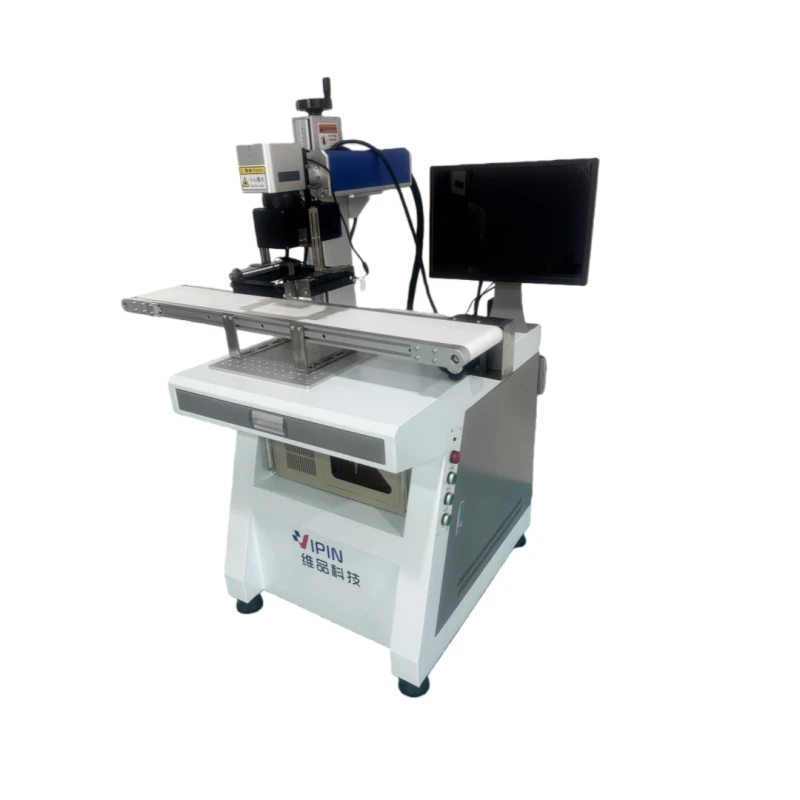

The Visual Laser Engraver Marking Barcodes Streamline High Speed Marking is a 20W fiber laser marking machine with integrated CCD visual positioning, engineered for high-speed, high-precision industrial marking across a wide range of manufacturing applications. Operating at 1064 nm wavelength, this system delivers stable, permanent, and high-contrast laser marks on metals, coated materials, and select engineering plastics.

Designed for modern smart manufacturing environments, the system combines a powerful fiber laser source with an intelligent vision-guided CCD alignment system, enabling automatic detection, positioning, and marking of parts, even when they are randomly placed or inconsistently oriented on the work surface. This significantly reduces manual alignment requirements, improves production efficiency, and ensures consistent marking accuracy in high-volume workflows.

The VIPIN-FSD-C20FB is widely used for PCB marking, electronic component identification, industrial part serialization, and traceability applications, where precision and repeatability are critical. Its ability to integrate into automated production lines makes it ideal for OEM manufacturers and industrial integrators seeking scalable laser marking solutions.

With a compact industrial design, flexible marking configurations, and support for automated workflows, this system is optimized for both standalone operation and integration into Industry 4.0 production environments. Whether used for batch processing or continuous production, it delivers reliable performance, minimal maintenance, and long-term operational stability.

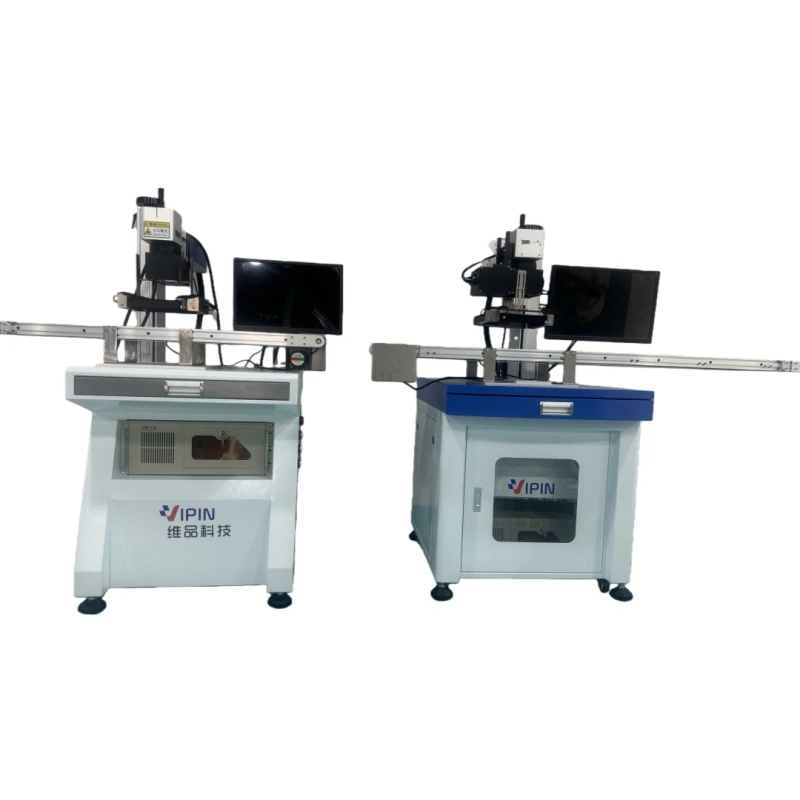

UV Fiber Laser Marking Machines 5W 20W 30W CCD Positioning Laser Applications

Specifications

Work Area X: 300 mm
Work Area Y: 300 mm
Beam Delivery: Galvo
Laser Source: Fiber
Laser Output Power: 20 W
Laser Wavelength: 1064 nm (IR)
Voltage Requirement: 220V - 50Hz
Materials: Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Wood, Paper, Textile, Granite, Marble, Nylon, Acrylic, Plexiglass
Air Assist: Included
Fume Extraction Unit: Included
Safety Enclosure: Not Included
Repeating Accuracy: ±0.1mm (Flat Surface)
Weight: Approx 90KG
Machine Size: 600*800*1500mm
Power Supply: Single-phase, AC220V±20%/50HZ, 10A, 2KW
Language: Chinese, English
Conveyor System Size: 1100mm*150mm/1500mm*200mm/1500mm*300mm (optional)
Conveyor System Color: Black/white (optional)
Software: VIPin Laser System
Movement Control: Unit/servo motor/stepping motor/electric relay
Feeding Method: Linear Module
Marking Card: JCZ Card
Light Source Control: Digital Controller
Light Source: Combo Strip Light/Ring Light
Style No.: VIPIN-FSD-C20FB
Camera Lens: 12mm
Positioning: CCD Visual Marking Positioning
Work Mode: Laser Fixed
Focus Adjustable Mode: Manual (Red light indicates)
Z Axis: 0-550mm (Adjustable Manually)
Marking Range: 30mm*30mm-300mm*300mm (Optional)
Field Lens Range: 100mm*100mm
Laser Power: 5W/20W or 30W
Laser Type: Fiber

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-Precision Visual Laser Marking – Integrated CCD camera (1200W pixels) with visual positioning ensures ±0.1 mm repeatability on flat surfaces for crisp, accurate marking of fine details, micro text, barcodes, and QR codes.
  • Dual Laser Options for Diverse Materials – Available in UV (355 nm, 5 W) and Fiber (1064 nm, 20 W / 30 W) configurations to cover a wide range of applications, including plastics, PCBs, coated metals, anodized aluminum, stainless steel, and more.
  • Flexible Marking Area & Field Lens – Standard field lens covers 100 × 100 mm, with optional marking ranges from 30 × 30 mm up to 300 × 300 mm, allowing both small-part precision and large-area product marking.
  • Manual Z-Axis Adjustment for Varying Heights – 0–550 mm manual Z-axis travel with red-light focus indication makes focusing quick and straightforward for different product heights and jig setups.
  • Easy-to-Use VIPin Laser Software – Intuitive VIPin Laser System supports characters, letters, serial numbers, barcodes, QR codes, and graphic data, with user-friendly interfaces in Chinese and English for fast setup and daily operation.
  • Fast Job Change & Document Management – Marking files and process documents can be saved, recalled, and switched quickly to support multi-product production lines, short-run batches, and high-mix manufacturing.
  • Robust Process Control & Error Handling – Built-in alarm function notifies operators when a marking is missed, and the system can automatically stop processing on NG (no good) parts to prevent scrap and mis-marked products.
  • Non-Contact, Clean, and Consumable-Free – Laser marking is a non-contact process with no ink, no chemicals, and no consumables, resulting in low operating cost, no secondary pollution, and minimal maintenance compared to inkjet or label printing.
  • Stable Laser Performance for 24/7 Production – UV and fiber laser sources are designed for long life, high stability, and low failure rates, suitable for continuous industrial operation and integration in automated production lines.
  • Integrated Conveyor Solutions – Optional conveyor systems in black or white with sizes 1100 × 150 mm, 1500 × 200 mm, or 1500 × 300 mm support in-line marking, improving throughput and enabling seamless connection to existing production lines.
  • Versatile Lighting for Reliable Vision – Combination of strip light and ring light with a digital controller optimizes illumination conditions for different surfaces and colors, ensuring stable image capture and accurate visual positioning.
  • Industrial-Grade Motion Control – Linear module feeding with servo motor / stepping motor / electric relay motion control delivers smooth, repeatable movement and precise positioning for high-quality marking at production speed.
  • JCZ Marking Card for Compatibility – Uses a high-reliability JCZ control card, widely adopted in industrial laser marking systems, for robust performance and compatibility with standard marking software ecosystems.
  • Support for Custom Software Development – Open to software customization, allowing integration with MES/ERP, custom UIs, automated code generation, database connectivity, and traceability systems tailored to specific factory needs.
  • Compact, Space-Saving Footprint – Machine size of 600 × 800 × 1500 mm and an approximate weight of 90 kg make it easy to integrate into existing manufacturing cells and production lines without large space requirements.
  • Stable Power and Simple Installation – Operates on standard single-phase AC 220 V ±20%, 50 Hz, 10 A, 2 kW, simplifying electrical installation in most industrial environments.
  • Wide Application Range – Ideal for PCB marking, electronic components, plastics, auto parts, medical devices, instruments, and general industrial products, providing permanent, high-contrast, and traceable identification.
  • High Marking Quality on Sensitive Materials (UV) – UV laser option supports cold marking with minimal heat-affected zone, suitable for sensitive substrates, fine pitch components, and applications where high contrast and low damage are critical.

Applications

  • Electronics Manufacturing & PCB Production
    • High‑precision marking of PCB boards (single, double, and multi‑layer) with barcodes, QR codes, and serial numbers for full traceability.
    • Direct marking of fiducials, polarity marks, test points, and component outlines to assist with SMT and assembly alignment.
    • Marking on PCB solder mask, copper layers, and flex circuits without damaging internal structures.
    • Laser coding on FPC (flexible printed circuits) for smartphones, tablets, and wearables.
    • Replacement of inkjet codes on PCBs with permanent, high‑contrast laser marks to meet IPC and quality standards.
  • Semiconductor & Microelectronics
    • Fine marking of semiconductor wafers, IC packages, and chips with tiny characters, logos, and 2D codes.
    • Marking on BGA, QFN, SOP, and other microelectronic packages with minimal heat‑affected zone.
    • Identification coding for sensors, MEMS devices, and optoelectronic components.
    • Non‑contact marking on sensitive electronic parts where mechanical or thermal stress must be minimized.
  • Consumer Electronics & Mobile Devices
    • Marking serial numbers, QR codes, and logos on metal housings, battery covers, and frames of phones, tablets, and laptops.
    • High‑resolution marking on plastic and coated components such as chargers, adapters, earphones, and power banks.
    • Laser etching on keypads, buttons, and small plastic parts with clean, sharp edges.
    • Marking on internal parts (connectors, shielding, brackets) for assembly and after‑sales traceability.
  • Medical Devices & Instruments
    • Permanent UDI and traceability codes on surgical tools, dental instruments, and stainless‑steel components.
    • Precise marking on plastic and polymer medical parts (syringes, housings, connectors) without contaminating surfaces.
    • Low‑thermal UV marking on delicate medical disposables and diagnostic components.
    • Marking graduated scales, identification numbers, and brand logos on reusable medical instruments.
  • Automotive & EV Components
    • Laser marking VIN‑related codes, serial numbers, and data matrix codes on automotive electronics modules (ECU, sensors, controllers).
    • Marking on connectors, wiring harness tags, plastic housings, and small metal parts.
    • QR codes and barcodes on EV battery modules, BMS boards, and power electronics PCBs.
    • Anti‑counterfeit and traceability codes for safety‑critical components.
  • Industrial Automation & Machinery Parts
    • Marking part numbers, model IDs, and batch codes on metal and plastic machine components.
    • Laser logos and identification on control panels, switches, and industrial connectors.
    • Durable coding on enclosures and nameplates where labels or ink may fail.
  • Plastic Components & Polymer Products
    • High‑contrast marking on ABS, PC, PVC, PET, PBT, nylon, and other engineering plastics.
    • Color change and frosted effect marking on coated and painted plastic surfaces.
    • Marking small plastic parts for household appliances, tools, and consumer goods.
    • Permanent replacement of stickers and printed labels on plastic housings and casings.
  • Metal Parts & Tools
    • Laser engraving and marking on stainless steel, aluminum, brass, copper, and coated metals.
    • Branding and identification of tools, fasteners, fittings, and precision machined parts.
    • Data matrix and QR code marking for lifecycle tracking of metal components.
    • Corrosion‑resistant, non‑contact marks suitable for harsh industrial environments.
  • Packaging, Labels & Product Coding
    • High‑speed online marking of date codes, batch numbers, and production lines on cartons and packaging films.
    • Marking variable data on labels, nameplates, and tags directly on the conveyor.
    • Non‑contact coding on coated paperboard, plastics, and certain thin films without ink or consumables.
    • Integration with vision and conveyor systems for automatic code verification and rejection of NG products.
  • Security Marking & Anti‑Counterfeiting
    • Micro‑text and micro‑QR marking for hidden or difficult‑to‑replicate identifiers.
    • Marking company logos, security codes, and encrypted IDs on high‑value components.
    • UV laser marking on materials and coatings for invisible or low‑contrast security patterns (depending on substrate).

Frequently Asked Questions

What types of lasers does the Visual Laser Marking Machine use?
The machine uses UV and Fiber lasers.
What is the laser power range for the Visual Laser Engraver Marking Barcodes Streamline High Speed Marking?
The laser power options are 5W, 20W, or 30W.
What is the marking range of the machine?
The marking range is optional and can be between 30mm*30mm and 300mm*300mm.
How does the machine ensure precise marking?
The machine uses CCD visual marking positioning and has a repeating accuracy of ±0.1mm on flat surfaces.
What happens if the machine misses a marking?
The machine has an alarm system that calls when marking is missed, and processing stops when NG (No Good).
Can the machine be customized?
Yes, the machine supports customization with software development.
What is the power supply requirement for the Visual Laser Engraver Marking Barcodes Streamline High Speed Marking?
The machine requires a single-phase AC220V±20%/50HZ power supply with a 10A, 2KW capacity.
