Description
The Laser Marking Machine with Rotary Table VIPIN-FSD-CR05UV is a state-of-the-art solution designed for precision and efficiency in laser marking applications. This machine is engineered to provide seamless operation with its user-friendly interface, making it an ideal choice for businesses seeking to enhance their production capabilities. Its robust construction and advanced technology ensure reliable performance, making it a valuable asset for any manufacturing setup.
One of the standout features of the VIPIN-FSD-CR05UV is its ability to handle a wide range of marking tasks with exceptional accuracy. The machine's mechanical positioning system, complemented by a red light indicator, ensures precise alignment and consistent results. This precision is further enhanced by the machine's ability to save documents and switch production lines quickly, allowing for efficient workflow management.
Environmental sustainability is a key consideration in the design of this laser marking machine. The VIPIN-FSD-CR05UV operates without pollution and consumables, making it an eco-friendly choice for businesses committed to reducing their environmental footprint. Additionally, the machine is equipped with an alarm system that alerts operators to any marking errors or processing interruptions, ensuring smooth and uninterrupted operation.
Customization is another significant advantage of the VIPIN-FSD-CR05UV. The machine supports software development, allowing businesses to tailor its functionality to meet specific production needs. This flexibility, combined with its robust performance and ease of use, makes the Rotary Table Laser Marking Machine VIPIN-FSD-CR05UV a versatile and reliable choice for a wide range of industrial applications.

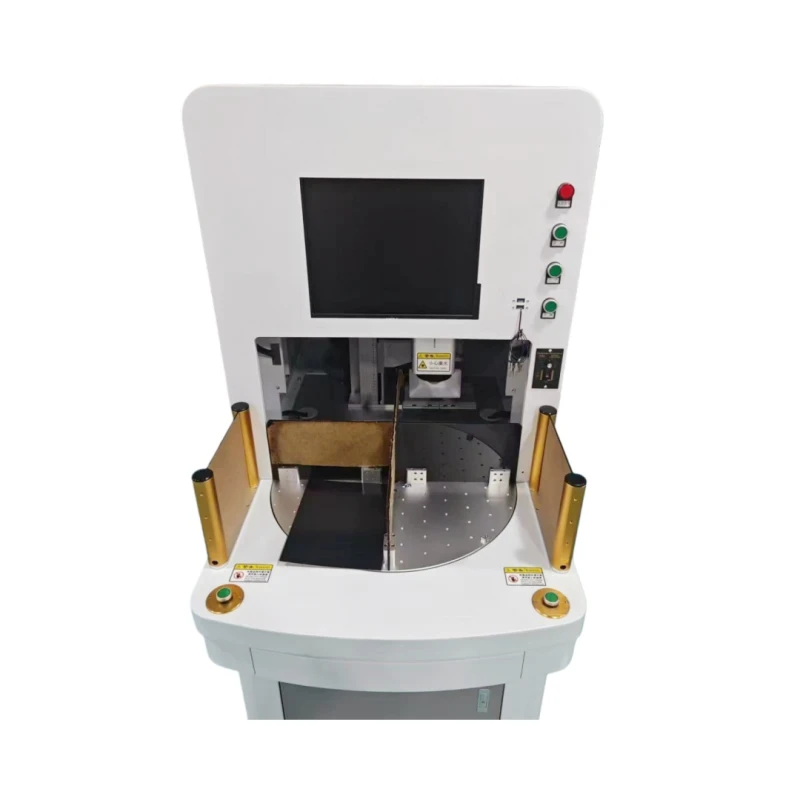

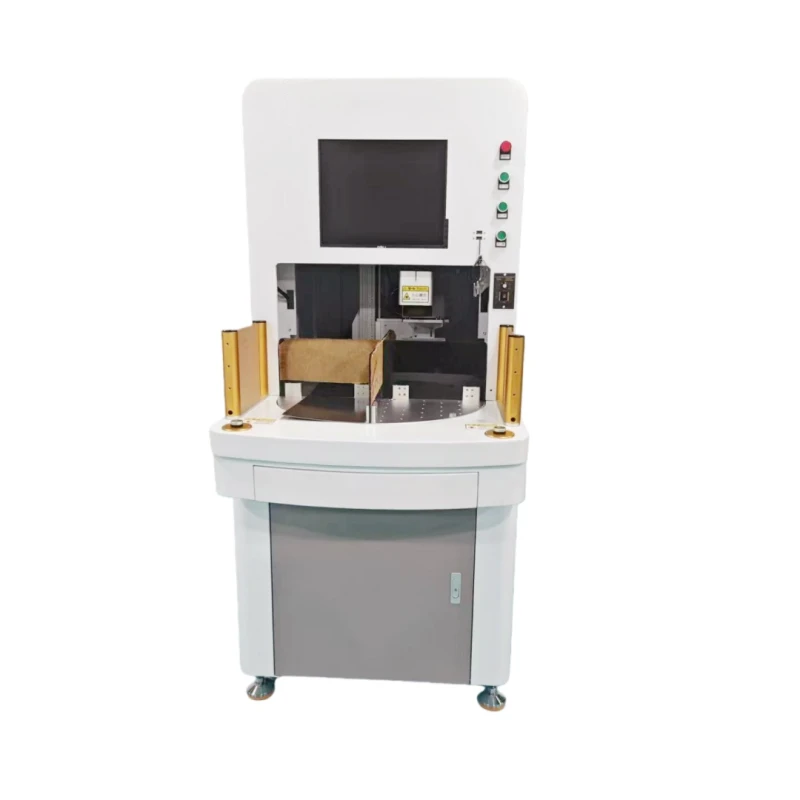

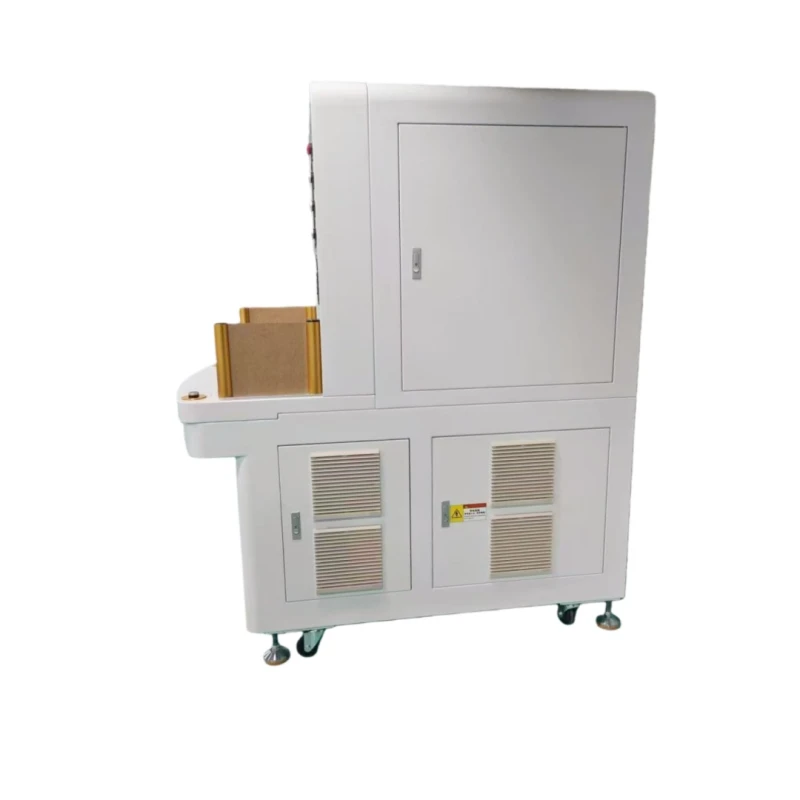

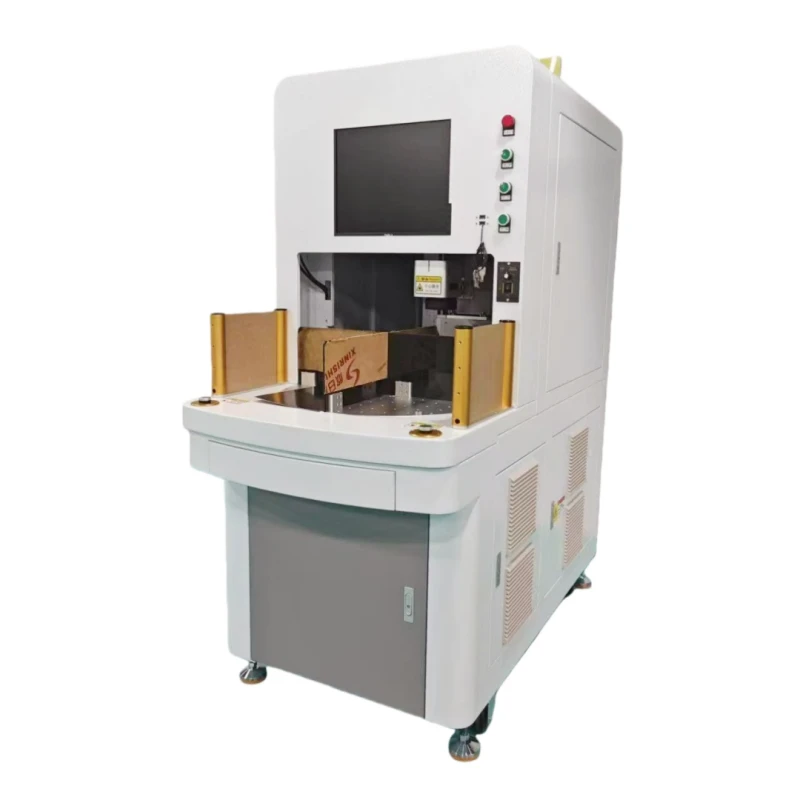

Laser Marking Machine with Rotary Table VIPIN-FSD-CR05UV
Specifications
| Work Area X: | 100 mm |
|---|---|
| Work Area Y: | 100 mm |
| Beam Delivery: | Galvo |
| Laser Source: | Fiber |
| Laser Output Power: | 5 W |
| Laser Wavelength: | 355 nm (UV) |
| Voltage Requirement: | 220V - 50Hz |
| Materials: | Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Wood, Paper, Textile, Granite, Marble, Nylon, Acrylic, Plexiglass, Leather |
| Air Assist: | Included |
| Fume Extraction Unit: | Included |
| Safety Enclosure: | Included |
| Power Supply: | Single-phase, 220VAC, 10A, 2KW |
| Style No.: | VIPIN-FSD-CR05UV |
| Laser Type: | UV/Fiber Laser |
| Field Lens Range: | 200mm*200mm |
| Max Size Range: | 100mm*100mm |
| Z Axis: | 0-550mm (Adjustable) |
| Focus: | Manually or Electric Motorized (optional) |
| Work Mode: | Laser Fixed |
| Positioning: | Mechanical Positioning (Red light indicates) |
| Weight: | Approx 220KG |
| Machine Size: | 1434mm*760mm*1710mm |
| Repeating Accuracy: | ±0.03mm (Flat Surface) |
| Cooling Method: | Air Cooling |
| Language: | Chinese, English |
| Movement Control: | Unit/servo motor/stepping motor/electric relay |
| Software: | VIPin Laser System |
| Rotary Table Diameter: | 600mm (Table segmented into 2,4,8 sectors as required) |
| Work Table Height: | 900mm |
| Light Source: | Combo Strip Light/Ring Light |
| Light Source Control: | Digital Controller |
| Marking Values: | Character, letter, barcode, QR code, Graphic data |
Download Data Sheet
Features
- Easy to Operate: User-friendly interface for seamless operation.
- Mechanical Positioning: Ensures precise and accurate marking with red light indication.
- Quick Production Line Switching: Save documents and switch production lines swiftly.
- Versatile Marking: Capable of marking on the surface of various products.
- Customizable Software: Supports customization with software development for tailored solutions.
- Eco-Friendly: No pollution and no consumables required.
- Intelligent Alarms: Alerts for missed markings and stops processing when necessary.
Applications
- Electronics Industry: Marking on circuit boards, electronic components, and connectors.
- Automotive Industry: Engraving on metal parts, plastic components, and dashboard panels.
- Medical Devices: Marking on surgical instruments, medical tools, and equipment.
- Jewelry and Accessories: Engraving on rings, bracelets, and other metal accessories.
- Tool Manufacturing: Marking on hand tools, power tools, and industrial equipment.
- Packaging Industry: Printing barcodes, QR codes, and logos on packaging materials.
- Promotional Products: Customizing pens, keychains, and other promotional items.
- Plastic Products: Marking on plastic housings, containers, and parts.
- Metal Fabrication: Engraving on metal sheets, plates, and components.
- Aerospace Industry: Marking on aircraft parts, tools, and equipment.
Frequently Asked Questions
What types of lasers does the Rotary Table Laser Marking Machine use?
What is the laser power of the VIPIN-FSD-CR03F?
What is the maximum marking size range for the machine?
How is the machine cooled?
What are the features of the Rotary Table Laser Marking Machine?
What is the positioning method used by the machine?
What languages does the VIPin Laser System software support?
