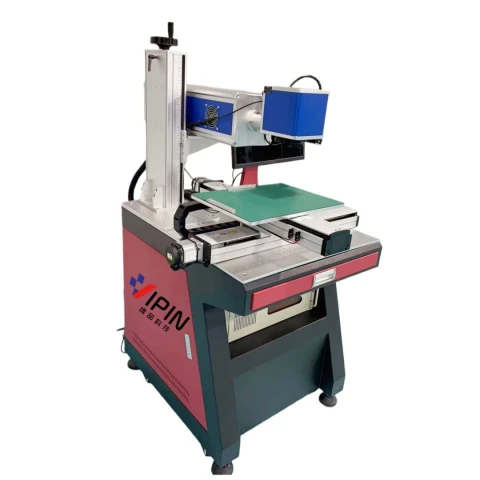

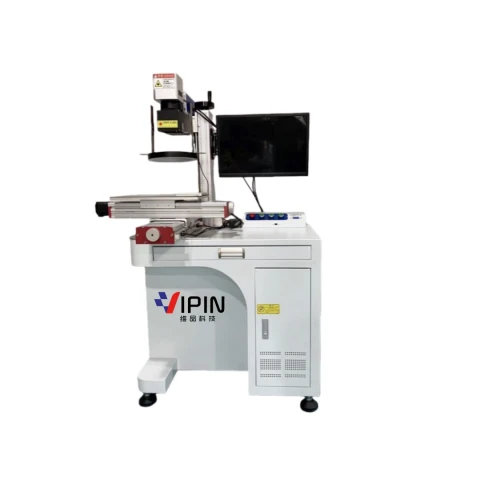

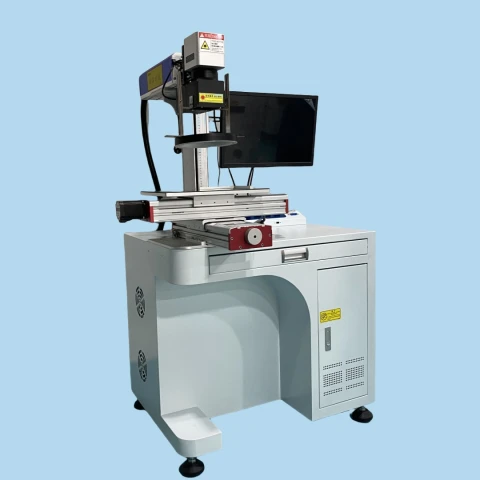

Desktop Laser Engraver CCD Camera EZCAD Software Mark on Metal Plastics

The Desktop Laser Engraver CCD Camera EZCAD Software Mark on Metal Plastics is a 5W UV laser marking machine with CCD visual positioning and XY motion platform, designed for high-precision marking of plastics, glass, and electronic components. Operating at 355 nm, this system enables low-heat “cold” marking, while its vision-guided alignment ensures accurate marking of randomly positioned parts in high-throughput production environments.

The 355 nm UV laser enables “cold marking,” minimizing thermal damage and preventing burning or deformation—ideal for sensitive materials such as plastics, glass, and PCBs.

The integrated CCD visual positioning system uses a high-resolution camera to detect part location and orientation in real time, enabling precise marking without manual alignment and significantly improving production efficiency.

The 300 × 400 mm XY motion platform supports large-area marking and flexible multi-part layouts, making the system suitable for batch processing and automated workflows.

The system supports both UV (355 nm) for plastics and delicate materials and optional fiber (1064 nm) for metals, providing flexibility across a wide range of applications.

One of the standout features of the VIPIN-FSD—XY05UV is its user-friendly operation. The machine is designed to be intuitive, allowing operators to quickly learn and manage its functions. This ease of use is complemented by its ability to save documents and swiftly switch between production lines, significantly reducing downtime and increasing operational efficiency. The machine's capability to mark on PCBs and various product surfaces further underscores its versatility and adaptability in different industrial settings.

In addition to its operational efficiency, the Desktop Laser Engraver CCD Camera EZCAD Software Mark on Metal Plastics is environmentally friendly, producing no pollution and requiring no consumables. This not only reduces operational costs but also aligns with sustainable business practices. The machine's built-in alarm system ensures that any marking errors are promptly addressed, stopping the process to prevent further issues. This attention to detail and commitment to quality make the VIPIN-FSD—XY05UV/20FB a reliable and valuable asset for any manufacturing operation.

Desktop Laser Engraver CCD Camera EZCAD Software Mark on Metal Plastics

Specifications

Work Area X: 300 mm
Work Area Y: 400 mm
Beam Delivery: Galvo
Laser Source: Fiber
Laser Output Power: 5 W
Laser Wavelength: 355 nm (UV)
Marking Speed: Not Specified
Voltage Requirement: 220V - 50Hz
Materials: Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Wood, Paper, Textile, Granite, Marble, Nylon, Acrylic, Plexiglass
Air Assist: Included
Fume Extraction Unit: Included
Safety Enclosure: Optional
Camera Pixel: 1200W
Weight: Approx 150KG
Machine Size: 600*800*1450mm
Language: Chinese, English
Software: VIPin Laser System
Marking Card: JCZ Card/ PCIE(optional)
Light Source Control: Digital Controller
Light Source: Combo Strip Light/Ring Light
Repeating Accuracy: ±0.03mm
Camera Lens: 12mm
Style No.: FSD-XY05UV
Positioning: CCD Visual Marking Positioning
Work Mode: Laser Fixed
Focus Adjustable Mode: Manual
Z Axis: 0-550mm
XY Module Travel: 300mm*400mm
Field Lens Range: 100mm*100mm
Laser Power: 5W
Laser Type: Fiber

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-Precision UV & Fiber Laser Sources – Equipped with 5W UV (355 nm) and 20W Fiber (1064 nm) laser options, ideal for high-contrast, fine-detail marking on metals, plastics, electronic components, and sensitive materials with minimal thermal impact.
  • CCD Visual Positioning for Accurate Marking – Integrated 1200W pixel CCD camera with a 12 mm lens enables visual alignment and automatic positioning, ensuring precise marking placement on PCBs and complex product surfaces.
  • Stable & Repeatable Accuracy – High rigidity design with repeat positioning accuracy of ±0.03 mm on flat surfaces, suitable for applications requiring micro-text, 2D codes, and fine line graphics.
  • Flexible Working Area & Travel Range – Standard field lens range of 100 mm × 100 mm combined with XY module travel of 300 mm × 400 mm and manual Z-axis adjustment from 0–550 mm to accommodate varying product sizes and fixture heights.
  • Versatile Marking Content – Supports characters, barcodes, QR codes, serial numbers, logos, and graphic data for traceability, anti-counterfeiting, branding, and process identification across different industries.
  • Easy-to-Use VIPin Laser Software – Dedicated VIPin Laser System software with a user-friendly interface, supporting Chinese and English, makes setup, editing, and switching between production jobs fast and intuitive.
  • Fast Job Switching & Document Management – Marking files can be saved and recalled quickly, allowing rapid changeover between different products or production lines to maximize uptime and flexibility.
  • Supports Software Customization & Integration – Open to customized software development for MES/ERP integration, data interaction, and special workflows, enabling seamless fit into automated production lines.
  • Intelligent Miss-Mark & NG Detection – System alarms when marking is missed and stops processing upon NG (no good) results, improving process reliability and reducing scrap and rework.
  • Labor-Saving Automated Operation – One operator can supervise multiple machines thanks to visual positioning, stable automation components, and intuitive control, significantly reducing labor cost per marking station.
  • Clean, Eco-Friendly, and Consumable-Free – Non-contact laser marking generates no ink, no chemicals, and virtually no pollution, eliminating consumables and lowering long-term operating costs compared with inkjet or label printing.
  • Multiple Motion Control Options – Utilizes servo/stepper motor and electric relay control for smooth, reliable movement and accurate positioning over the full XY travel range.
  • Flexible Lighting for Vision Tasks – Combo strip light and ring light illumination with digital light source control enhances image contrast on different surface finishes for more reliable CCD recognition.
  • Professional Marking Control Hardware – Compatible with JCZ control card or optional PCIe card to support stable laser control, high-speed marking, and easy integration with industrial PCs.
  • Compact Footprint for Production Lines – Machine size of approximately 600 × 800 × 1450 mm with about 150 kg weight fits easily into standard SMT, PCB, and assembly line layouts while maintaining structural stability.
  • Manual Focus with Red Light Indication – Simple manual focus adjustment with red-light indication helps operators quickly achieve optimal focal position for clear, consistent marking quality.
  • Wide Application Range – Designed for marking on PCB boards and a variety of product surfaces including electronic components, plastic housings, metal nameplates, precision parts, and more in electronics, automotive, medical, and consumer industries.
  • Reliable Fixed-Laser Working Mode – Laser remains fixed while the workpiece is positioned via the XY module, providing stable beam quality and consistent marking results across the entire working area.
  • Manual Material Loading Support – Optimized for manual incoming materials with clear working area access, ideal for small and medium batch production, sampling, and multi-variety flexible manufacturing.

Applications

  • Electronics & PCB Marking – Permanent, high‑contrast coding on printed circuit boards, ICs, microchips, and electronic components for traceability, anti‑counterfeit protection, and quality control.
  • Semiconductor & Microelectronics – Fine UV marking of wafers, small chips, micro‑sensors, and precision electronic parts where low heat input and micron‑level accuracy are critical.
  • Mobile Phone & Consumer Electronics – Logo, serial number, QR/2D code, and decorative marking on mobile phone housings, chargers, adapters, earphones, power banks, and wearables.
  • Metal Parts & Tools – Fiber laser engraving on stainless steel, carbon steel, aluminum, titanium, copper, and alloys for tools, fasteners, machine parts, and industrial components.
  • Automotive & Aerospace Components – Identification marks, barcodes, data matrix codes, and production data on engine parts, nameplates, connectors, clamps, and precision aerospace hardware.
  • Medical Devices & Instruments – Non‑contact, low‑damage marking of surgical tools, stainless steel instruments, implantable components, plastic housings, and medical packaging for UDI and sterilization‑resistant IDs.
  • Plastic & Polymer Marking – High‑contrast UV marking on ABS, PVC, PC, PET, PE, and other engineering plastics without burning or deformation, suitable for keycaps, switches, panels, and plastic enclosures.
  • Packaging, Labels & Coding – Clean, consumable‑free date codes, lot numbers, batch numbers, and QR codes on cartons, laminates, labels, and flexible packaging films.
  • Household Appliances – Branding, function icons, scales, and safety information on appliance panels, knobs, metal and plastic nameplates, and internal electronic modules.
  • Hardware & DIY Products – Serial codes, brand logos, and decorative patterns on locks, hinges, handles, knives, tools, and custom hardware accessories.
  • Jewelry & Watches – Fine fiber laser engraving on precious metals, watch cases, watch backs, clasps, and internal components for branding, serial numbering, and anti‑counterfeit marking.
  • Solar & New Energy – Labeling of photovoltaic junction boxes, connectors, inverters, and battery modules where durable and legible marks are needed.
  • Electrical & Power Components – Marking on terminal blocks, relays, sensors, switches, connectors, cable glands, and industrial plugs for identification and wiring guidance.
  • Tools, Molds & Fixtures – Part numbers, cavity IDs, reference marks, and coordinate systems on molds, dies, jigs, and fixtures to support precision manufacturing and maintenance tracking.
  • Automated Production Lines – Inline visual positioning and marking on moving workpieces, with fast recipe switching for multi‑model or multi‑line production environments.
  • Track & Trace / Industrial Traceability – Direct part marking (DPM) of barcodes and QR codes for full life‑cycle tracking in automotive, electronics, machinery, and capital equipment.
  • Brand Protection & Anti‑Counterfeit – Micro text, complex logos, encrypted QR codes, and fine graphics on high‑value products and components to combat counterfeiting.
  • ID Cards, Tags & Nameplates – Laser engraving of metal nameplates, rating plates, asset tags, industrial labels, and instrument panels with long‑lasting, abrasion‑resistant information.
  • Small Batch & Custom Marking – On‑demand customization of gifts, promotional items, instruments, and prototypes with text, graphics, barcodes, and company logos.
  • Labor‑Saving Multi‑Machine Supervision – Centralized supervision of several marking stations by a single operator in factories demanding high throughput, minimal downtime, and consistent marking quality.

Frequently Asked Questions

What types of lasers does the Desktop Laser Engraver CCD Camera EZCAD Software Mark on Metal Plastics use?
The machine uses UV and Fiber lasers.
What is the laser power available for this machine?
The machine offers laser power options of 5W and 20W.
What are the key features of the Visual Laser Marking Machine?
Key features include easy operation, precise marking, labor-saving capabilities, fast switching of production lines, support for customization, no pollution or consumables, and an alarm system for missed markings.
What is the application area for this Desktop Laser Engraver CCD Camera EZCAD Software Mark on Metal Plastics?
The machine is used for marking on PCBs and the surfaces of various products.
How is the positioning for marking achieved?
Positioning is achieved through CCD Visual Marking Positioning.
What is the repeating accuracy of the machine?
The repeating accuracy is ±0.03mm on flat surfaces.
What software does the machine use and in which languages is it available?
The machine uses the VIPin Laser System software, which is available in Chinese and English.
