Description
The Customized UV Laser Marking Machine VIPin-FSD-SC05UV is a state-of-the-art solution designed to meet the diverse needs of modern manufacturing environments. This machine is engineered to deliver high precision and efficiency, making it an ideal choice for businesses looking to enhance their production capabilities. With its advanced laser technology, the Customized UV Laser Marking Machine VIPin-FSD-SC05UV ensures that every marking is executed with exceptional accuracy, providing a reliable and consistent output that meets the highest industry standards.
One of the standout features of this laser marking machine is its user-friendly operation. Designed with ease of use in mind, it allows operators to quickly adapt and manage the marking process with minimal training. The machine's capability to save documents and swiftly switch between production lines further enhances its operational efficiency, making it a versatile tool for dynamic production environments. Additionally, the machine supports customization through software development, offering businesses the flexibility to tailor its functionality to specific requirements.
Environmental sustainability is a key consideration in the design of the VIPin-FSD-SC05UV. The machine operates without producing pollution or requiring consumables, aligning with eco-friendly manufacturing practices. Its built-in alarm system ensures that any marking errors are promptly addressed, with the process halting automatically to prevent further issues. This attention to detail not only safeguards product quality but also minimizes waste, contributing to a more sustainable production process.

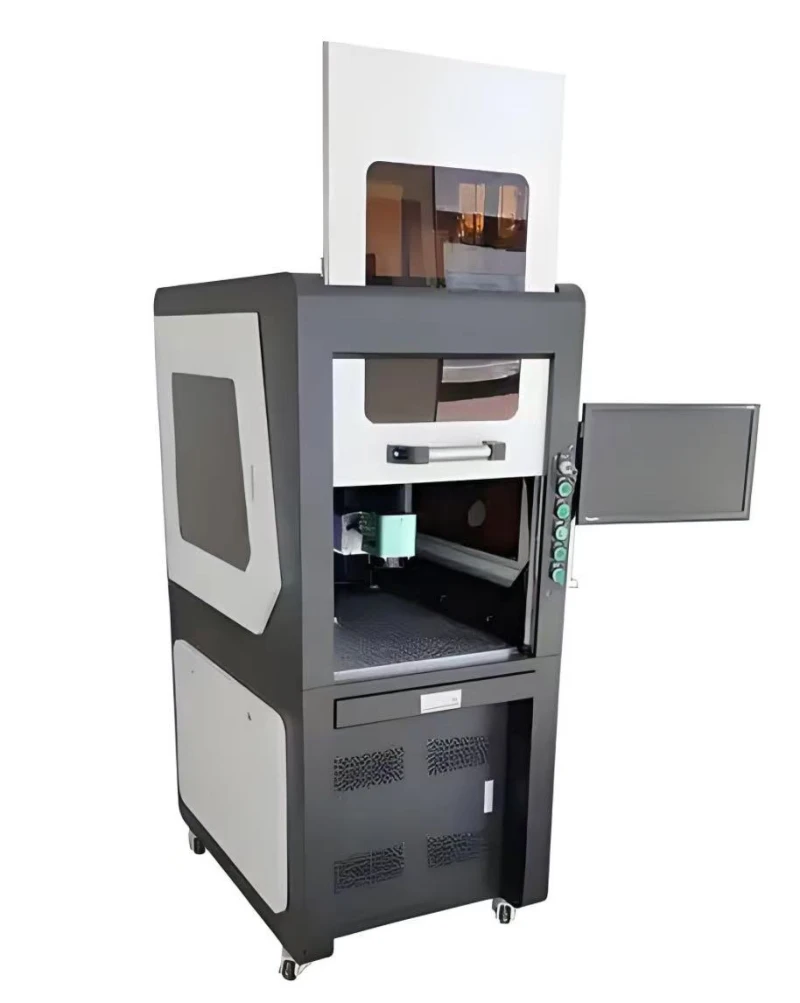

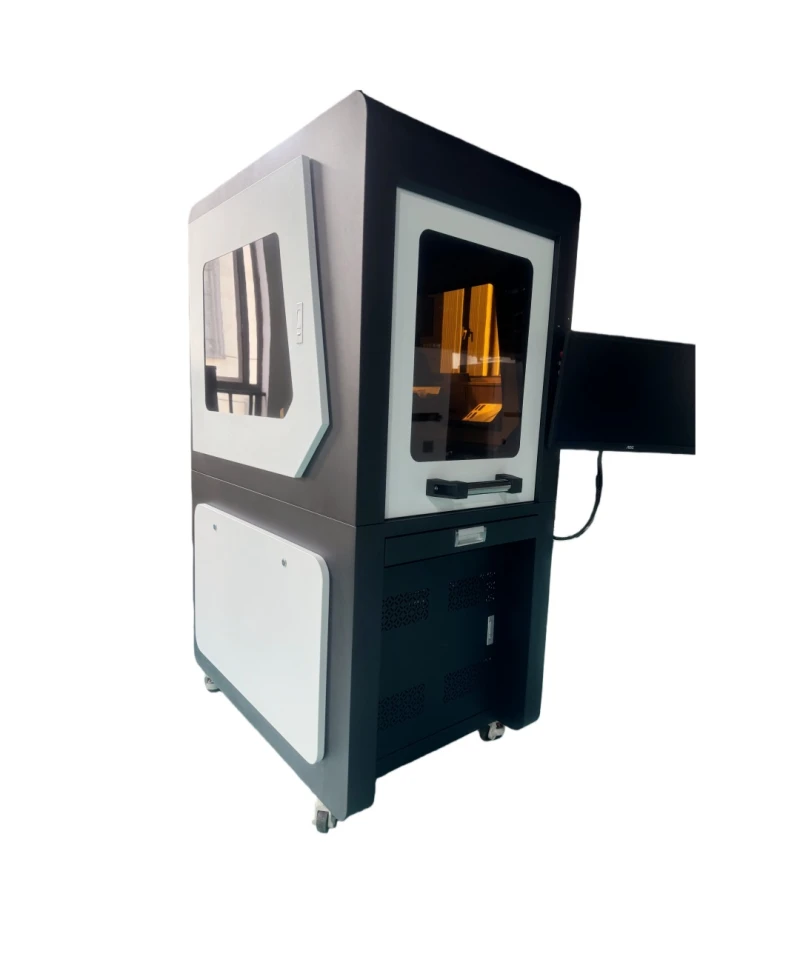

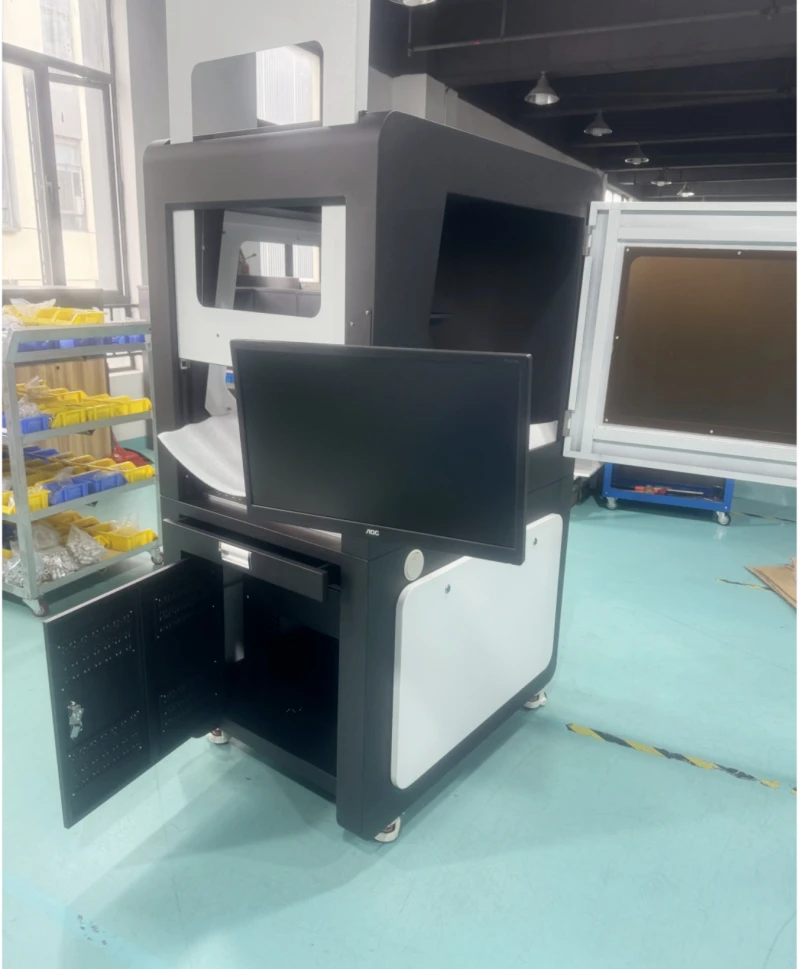

Customized UV Laser Marking Machine VIPin-FSD-SC05UV
Specifications
| Work Area X: | 200 mm |
|---|---|
| Work Area Y: | 200 mm |
| Beam Delivery: | Galvo |
| Laser Source: | Fiber |
| Laser Output Power: | 5 W |
| Laser Wavelength: | 355 nm (UV) |
| Voltage Requirement: | 220V - 50Hz |
| Materials: | Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Wood, Paper, Textile, Granite, Marble, Nylon, Acrylic, Plexiglass, Leather |
| Air Assist: | Included |
| Fume Extraction Unit: | Included |
| Safety Enclosure: | Included |
| Machine Size: | 1000mm*1200mm*1700mm |
| Style No.: | FSD-SC05UV |
| Laser Type: | UV/Fiber |
| Laser Power: | 5W/20W |
| Field Lens Range: | 100mm*100mm |
| Marking Range: | 200mm*200mm |
| Z Axis: | 0-300mm (Adjust Manually) |
| Focus: | Adjust Manually |
| Work Mode: | Laser Movable |
| Weight: | Approx 180KG |
| Positioning: | CCD Visual Marking Positioning(Optional) |
| Language: | Chinese, English |
| Software: | VIPin Laser System |
| Movement Control: | Unit/servo motor/stepping motor/electric relay |
| Work Table Height: | Customized as required |
| Marking Card: | JCZ Card |
| Light Source Control: | Digital Controller |
| Light Source: | Combo Strip Light/Ring Light |
| Repeating Accuracy: | ±0.03mm（Flat Surface） |
| Camera Lens: | 12mm |
Download Data Sheet
Features
- Easy to Operate: User-friendly interface for seamless operation.
- Precise Marking: Achieve high accuracy on various surfaces.
- Quick Production Line Switching: Save documents and switch lines efficiently.
- Versatile Application: Suitable for marking on PCB and diverse product surfaces.
- Customizable Software: Supports software development for tailored solutions.
- Eco-Friendly: No pollution and no consumables required.
- Intelligent Alerts: Alarm calls for missed markings and processing halts when NG.
Applications
- PCB Marking: Ideal for marking on printed circuit boards with precision.
- Product Surface Marking: Suitable for marking on the surface of various products, ensuring clear and durable marks.
- Custom Software Development: Supports customization with software development to meet specific marking requirements.
- Pollution-Free Operation: No pollution and no consumables required, making it environmentally friendly.
- Alarm and Safety Features: Equipped with an alarm system that alerts when marking is missed, and the process stops when there is a non-conformance (NG).
- Fast Production Line Switching: Documents can be saved, allowing for quick switching between production lines.
- CCD Visual Marking Positioning: Optional CCD visual marking positioning for enhanced accuracy.
- Versatile Marking Capabilities: Capable of marking characters, letters, barcodes, QR codes, and graphic data.
- Adjustable Work Table: Work table height can be customized as required for different applications.
Frequently Asked Questions
What types of lasers does the VIPin-FSD-SC05UV/20FB use?
What is the laser power of the VIPin-FSD-SC05UV/20FB?
What are the marking capabilities of the machine?
What is the marking range of the VIPin-FSD-SC05UV/20FB?
Does the machine support customization?
What is the repeating accuracy of the machine?
What languages does the VIPin Laser System software support?
