Description
The VESHAY VIPIN-4545AT-01 PCB Laser Marking Machine is a state-of-the-art solution designed for high-precision marking on printed circuit boards. This advanced machine is engineered to deliver unparalleled accuracy and efficiency, ensuring that each mark is clear and durable. With its robust construction and cutting-edge technology, the VIPin – 4545AT series is ideal for manufacturers looking to enhance their production line capabilities.
One of the standout features of this laser marking machine is its ability to operate continuously, making it a perfect fit for high-volume production environments. The machine's integration with Manufacturing Execution Systems (MES) allows for intelligent traceability, ensuring that every component is marked with precision and can be tracked throughout the production process. This capability not only enhances operational efficiency but also ensures compliance with industry standards.
The VIPin – 4545AT is equipped with multiple laser types, including UV, CO2, Green, and Fiber, offering versatility for various marking needs. Its laser lifespan exceeds 50,000 hours, providing long-term reliability and reducing the need for frequent maintenance. The machine's compact laser spot size and minimal marking dimensions make it suitable for intricate designs and small components, ensuring that even the most detailed markings are executed flawlessly.
In terms of cost-effectiveness, the VESHAY VIPin – 4545AT offers significant savings over traditional labeling methods. By eliminating the need for consumable labels and reducing manual labor costs, this laser marking machine provides a substantial return on investment. Its ability to replace high-temperature tags with permanent laser markings further underscores its value in modern manufacturing settings.
Overall, the VESHAY VIPin – 4545AT PCB Laser Marking Machine is a powerful tool for any production line seeking to improve efficiency, accuracy, and traceability. Its advanced features and robust performance make it an indispensable asset for manufacturers aiming to stay ahead in a competitive market.

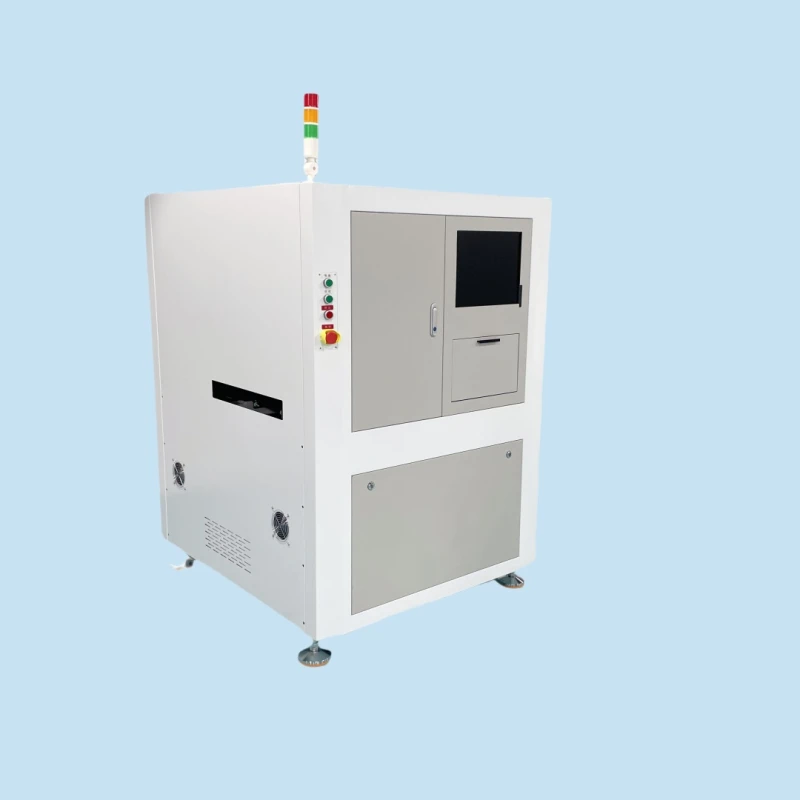

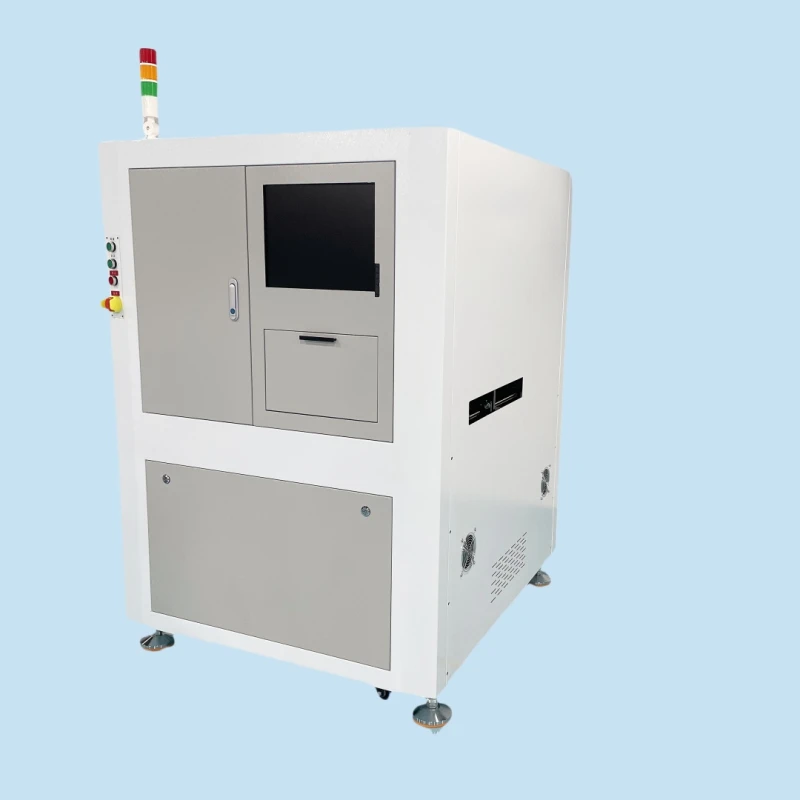

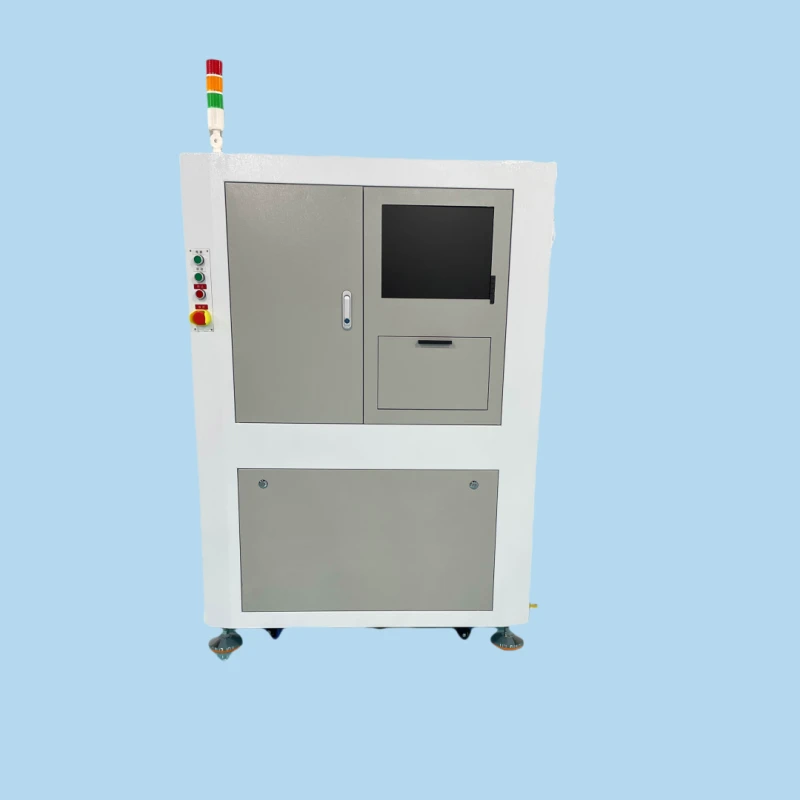

VESHAY VIPIN-4545AT-01 PCB Laser Marking Machine with UV Laser
Specifications
| Work Area X: | 450 mm |
|---|---|
| Work Area Y: | 450 mm |
| Beam Delivery: | Galvo |
| Laser Source: | Fiber |
| Laser Output Power: | 5 W |
| Laser Wavelength: | 355 nm (UV) |
| Marking Speed: | 7000 mm/sec |
| Voltage Requirement: | 220V - 50Hz |
| Materials: | Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Wood, Paper, Textile, Concrete, Granite, Marble, Nylon, Acrylic, Plexiglass |
| Air Assist: | Included |
| Fume Extraction Unit: | Included |
| Safety Enclosure: | Included |
| XY Axis Movement Speed: | 0-500mm/s |
| QR Code Size (minimum): | 1.5mm×1.5mm |
| Repeat Accuracy: | ±0.02mm |
| Engraving Angle: | 0-360° |
| Minimum Point Diameter: | 0.13mm |
| Laser Cooling Method: | Water Cooling/Air Cooling |
| Laser Wavelength: | 355nm/10640nm/532nm/1064nm |
| Output Fluctuation Rate: | <3% |
| Laser Power: | 5W/10W/5W/20W |
| Laser Type: | UV/CO2/GREEN/Fiber |
Download Data Sheet
Features
- Brand: VESHAY
- Model: VIPIN-4545AT-01
- High Contrast Marking: Ideal for contrasting labels on PCBs.
- Minimal Letter and QR Code Size: Capable of marking minimal QR codes and letters with precision.
- Durability: Laser marking is resistant to wear and tear, ensuring longevity.
- Cost Efficiency:
- 10*10mm labels: ￥0.015 per piece, 3 million pieces annually, total ￥45k
- 15*40mm labels: ￥0.05 per piece, 7 million pieces annually, total ￥350k
- Total annual label cost: ¥395k
- Total label cost for 5 years: ¥1975k
- Labor Cost:
- 2 manual labors: ¥4,500/month/person, ¥54,000/year/person
- Total annual labor cost: ¥108k
- Total labor cost for 5 years: ¥540k
- Total Cost for 5 Years: ¥2515k
- Output Efficiency:
- Average marking time: 6 seconds per mark
- Average speed: 360 components per hour
- Annual output: 2376k components
- 4-5 machines required for 10 million boards
- Machine Cost: Cost for 4 sets of laser marking machines: ￥1.1 million
- Laser Types and Specifications:
- CO2 Laser: 10W, lifespan ≥50000 hours, spot size 0.13mm, wavelength 10640nm
- UV Laser: 5W, lifespan ≥15000 hours, spot size 0.04mm, wavelength 355nm
- Green Laser: 5W, lifespan ≥15000 hours, spot size 0.06mm, wavelength 532nm
- Fiber Laser: 20W/30W (optional), lifespan ≥50000 hours, spot size 0.07mm, wavelength 1064nm
Applications
Ideal for marking QR codes, barcodes, characters, and other information on PCBs with different oil types and on reinforcement steel sheets and shielding covers.
