Description
The Automatic PCB Laser Marking Machine VIPIN-4545ATN-03 from Dongguan Veshay Laser Technology Co., Ltd. represents a significant advancement in the field of circuit board production. Unlike traditional printing methods, this laser marking machine offers a consumable-free solution that enhances precision while minimizing environmental impact. Its design eliminates the need for maintenance, making it an ideal choice for companies focused on efficiency and sustainability.
One of the standout features of the VIPIN-4545ATN is its ability to deliver high-quality marking with exceptional accuracy. This machine is engineered to operate seamlessly within production lines, ensuring that each circuit board is marked with precision. The integration with Manufacturing Execution Systems (MES) further streamlines operations, allowing for real-time tracking and management of production processes. This capability not only improves productivity but also enhances the overall quality control within manufacturing environments.
Furthermore, the VIPIN-4545ATN is designed to be versatile and user-friendly. It supports various laser configurations, including UV, Fiber, Green, and CO2 lasers, catering to diverse marking needs. The machine's intuitive software and robust permission management system ensure that it can be operated efficiently by administrators, technicians, and operators alike. Whether used inline or offline, this laser marking machine can be easily integrated into existing SMT production lines, offering flexibility and adaptability to meet the evolving demands of modern manufacturing.

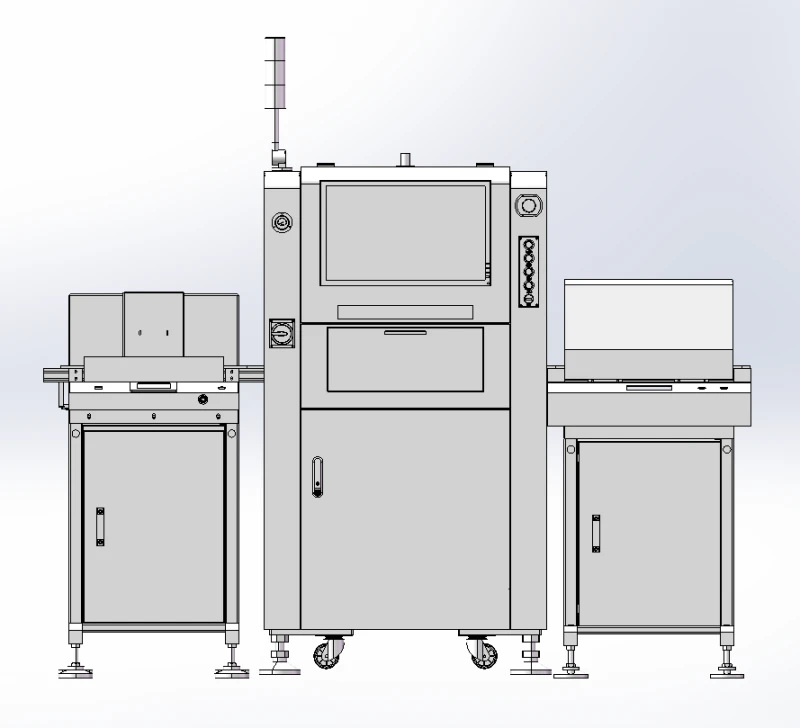

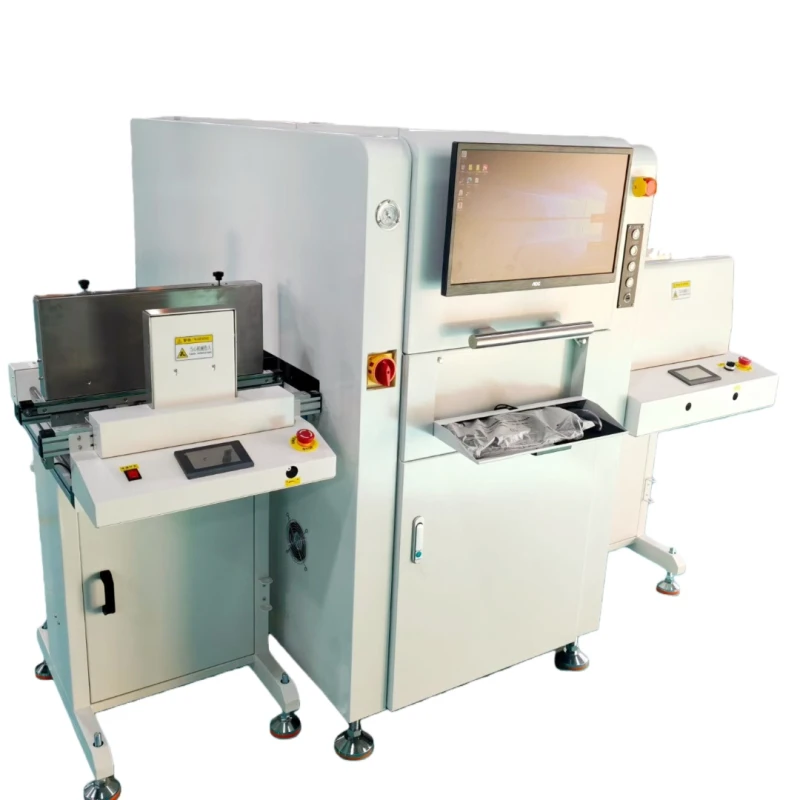

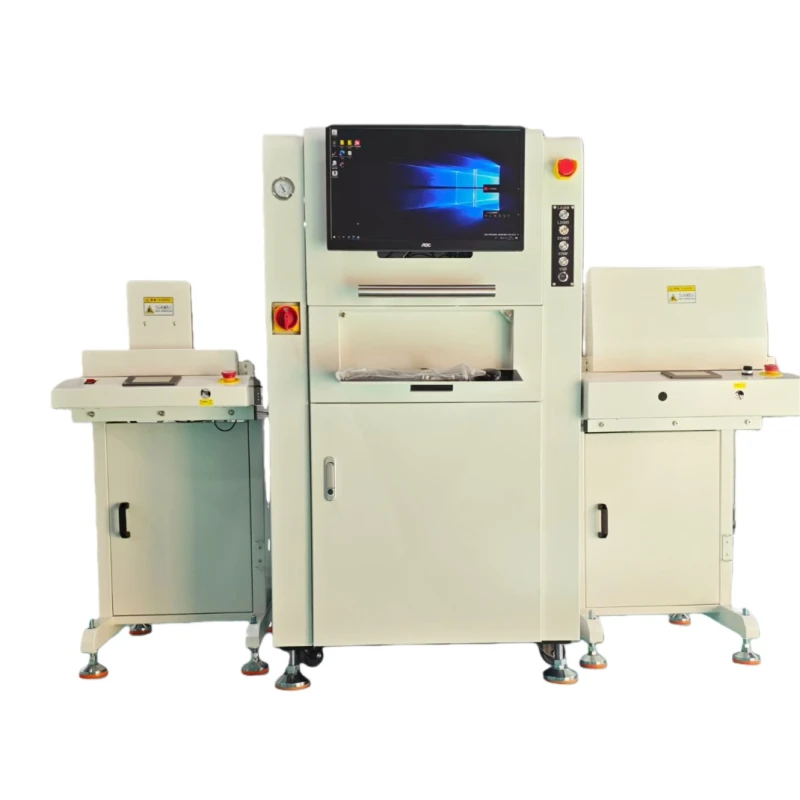

Automatic PCB Laser Marking Machine VIPIN-4545ATN-03 1064nm
Specifications
| Work Area X: | 450 mm |
|---|---|
| Work Area Y: | 450 mm |
| Beam Delivery: | Galvo |
| Laser Source: | Fiber |
| Laser Output Power: | 20 W |
| Laser Wavelength: | 1064 nm (IR) |
| Marking Speed: | 7000 mm/sec |
| Voltage Requirement: | 220V - 50Hz |
| Materials: | Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Wood, Paper, Textile, Granite, Marble, Nylon, Acrylic, Plexiglass |
| Air Assist: | Included |
| Fume Extraction Unit: | Included |
| Safety Enclosure: | Included |
| Repeatability: | ±0.02mm |
| Applicable PCB Size: | 50mm×50mm-450mm×450mm |
| PCB Thickness: | 0.5mm-3mm (Optional) |
| Upper Surface Height: | <25mm (Optional) |
| PCB Lower Surface Height: | <25mm |
| Marking Position Accuracy: | ±0.05mm (Optional) |
| Marking Speed: | Max: 7000mm/s |
| Marking Area: | 450mm×450mm |
| Laser Power: | 10W |
| Laser Wave Length: | 10640nm |
| Laser Type: | CO2 Synrad 10W (Optional: UV, Green & Fiber Laser) |
| Model: | VIPIN-4545ATN |
| Name: | PCB Laser Marking Machine |
Download Data Sheet
Features
- Supports Multiple Laser Types: Compatible with UV, Fiber, Green, and CO2 lasers, offering flexibility for various applications.
- Advanced Code Recognition: Features CCD Automatic Code Reading and optional QR Code Grade Recognition for enhanced precision.
- User-Friendly Software: Includes a Circuit Board Puzzle Function with simple and easy-to-use software for efficient operation.
- High-Speed Performance: Equipped with a high-speed galvanometer ensuring high accuracy and stable performance.
- Versatile Integration: Can be used both inline and offline, and is capable of linking with MES systems for seamless production integration.
- Flexible Production Line Placement: Can be placed at the forefront of the production line for marking incoming materials.
- Loader and Unloader Compatibility: Can work with loaders and unloaders as required, or be directly integrated into SMT production lines.
- Permission Management: Features Administrator, Technician, and Operator permissions for secure and controlled access.
- Optional Laser Configurations: Offers optional configurations with UV, Fiber, Green, and CO2 lasers, including CO2 Synrad 10W.
- High Precision Marking: Provides a marking area of 450mm×450mm with a maximum marking speed of 7000mm/s and position accuracy of ±0.05mm.
- Wide PCB Compatibility: Suitable for PCBs ranging from 50mm×50mm to 450mm×450mm, with thickness options from 0.5mm to 3mm.
Applications
- Electronics Manufacturing: Ideal for marking PCBs in electronics manufacturing, ensuring precise and permanent identification.
- Quality Control: Utilized for marking QR codes and other identifiers for quality tracking and traceability.
- Automotive Industry: Used for marking circuit boards in automotive electronics, providing durable and clear markings.
- Medical Devices: Suitable for marking PCBs used in medical devices, ensuring compliance with industry standards.
- Telecommunications: Applied in the production of telecommunications equipment for marking and tracking components.
- Consumer Electronics: Used in the production of consumer electronics for marking circuit boards with logos, serial numbers, and other identifiers.
- Industrial Equipment: Suitable for marking PCBs in industrial machinery and equipment, providing robust and reliable identification.
Frequently Asked Questions
What is the model name of the PCB Laser Marking Machine?
What types of lasers does the machine support?
What is the maximum marking speed of the machine?
What is the marking area size of the PCB Laser Marking Machine?
What is the lifespan of the CO2 laser used in the machine?
Can the machine be integrated into an SMT production line?
What is the marking position accuracy of the machine?
