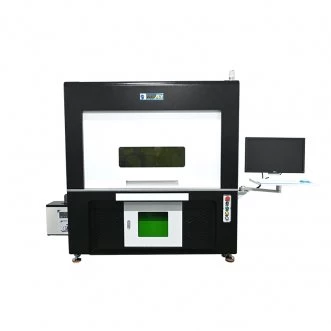

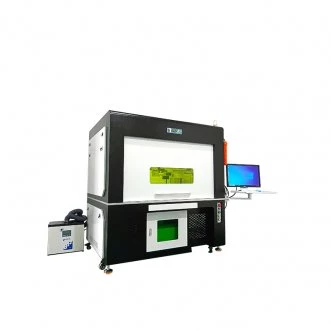

Gantry Automatic Laser Marking Machine 500x800x450mm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
SHENZHEN WISELY LASER MACHINERY CO., LIMITED -
On FindLight:
since 2020
Description
The Gantry 500x800mm Laser Marking Machine, model MY-M30F-V, is a state-of-the-art laser automation solution designed for efficiency and safety. Engineered with a protective laser cover, the machine ensures the utmost safety for operators by automatically halting marking operations when the door is opened. This feature is particularly beneficial for environments where operator safety is a priority. Ideal for marking large-sized products and batch marking, this machine is constructed with a high-precision X/Y ball screw slide and is powered by either a Stepper or Servo motor, optimizing the production line's efficiency. Furthermore, the working size of the machine can be customized to fit specific production needs.
The MY-M30F-V is built to last, boasting a fiber laser source with an impressive lifespan of 100,000 hours. Its energy-efficient design consumes less than 450W, making it both economical and environmentally friendly. With a high marking speed of 7000mm/s, it surpasses traditional machines, ensuring rapid processing without compromising on quality. The laser beam's superior definition, at 1 micron, provides precision that is ten times greater than conventional products, ensuring clear and precise markings. This machine is designed with user convenience in mind, featuring a high-stability controller with a USB interface for swift and stable data transmission. Its integrated air cooling system offers better cooling performance than traditional water-cooling systems, requiring no maintenance and ensuring long-term reliability.
The Gantry Laser Marking Machine is compatible with various file formats, including PLT, BMP, JPG, TTF, DXF, SHX, and AI, supporting outputs from popular software like CorelDraw, AI, PS, AutoCAD, and Solidworks. This versatility makes it an excellent choice for a wide array of marking needs across different industries.

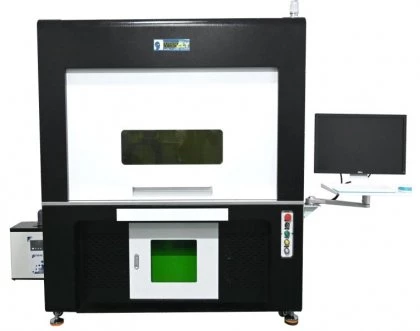

Gantry Automatic Laser Marking Machine 500x800x450mm
Specifications |
|
|---|---|
| Work Area X: | 500 mm |
| Work Area Y: | 800 mm |
| Beam Delivery: | Galvo, Large Platform, Other |
| Laser Source: | Fiber |
| Laser Output Power: | 20 W |
| Laser Wavelength: | 1064 nm (IR) |
| Marking Speed: | 7000 mm/sec |
| Voltage Requirement: | 110V - 60Hz, 220V - 50Hz |
| Materials: | Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Nylon, Ceramic |
| Air Assist: | Included |
| Fume Extraction Unit: | Included |
| Safety Enclosure: | Included |
| Fiber Laser Source: | Germany IPG / China JPT or Raycus |
| Scan Head: | Galvo-Tech / WISE SCAN from China |
| Controller (software): | JZC Controller & EzCAD2 Software from China (Optionlal EzCAD3 or SAMLight) |
| Dimension (L*W*H): | 1550*1220*1720mm |
| Package Size: | 1740*1370*1900mm |
Features
- Long Lifespan of Fiber Laser Source: 100,000 hours for extended durability and reliability.
- Low Energy Consumption: Consumes less than 450W, making it economical and environmentally friendly.
- High-Speed Performance: Achieves speeds of up to 7000mm/s, significantly faster than traditional machines.
- Superior Laser Beam Quality: Offers a definition of 1 micron, 10 times finer than traditional products.
- No Consumables Required: Operates for 8-10 years without the need for consumable materials.
- Direct Fiber Laser Beam: No need to adjust the laser beam path, simplifying operation.
- High-Precision and High-Speed Scan Head: Features a sealed design to prevent dust and water ingress, compact and efficient.
- High-Stability Controller: Equipped with a USB interface for swift and stable data transmission, and route optimization for easy operation.
- Strong Compatibility: Supports various file formats including PLT, BMP, JPG, TTF, DXF, SHX, AI from software like CorelDraw, AI, PS, AutoCAD, Solidworks, etc.
- Integrated Air Cooling System: Provides better cooling than water-cooling systems, with no maintenance required.
Applications
- Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.
- Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
- Instrument: Panel Board, Nameplates, Precision equipment, etc.
- Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
- Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
- Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Frequently Asked Questions
The auto stop feature ensures safety for the operator by automatically stopping the marking process when the door is opened.
Yes, the working size of the machine can be customized according to the specific needs of the customer.
The machine supports PLT, BMP, JPG, TTF, DXF, SHX, AI, and other format files output from CorelDraw, AI, PS, AutoCAD, SolidWorks, etc.
The fiber laser source has a lifespan of 100,000 hours, ensuring long-term usage without the need for frequent replacements.
The machine can work with various metal materials such as stainless steel, brass, aluminum, steel, iron, as well as nonmetallic materials like ABS, nylon, PES, PVC, Makrolon, etc.
