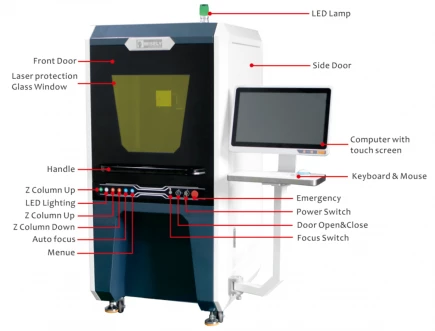

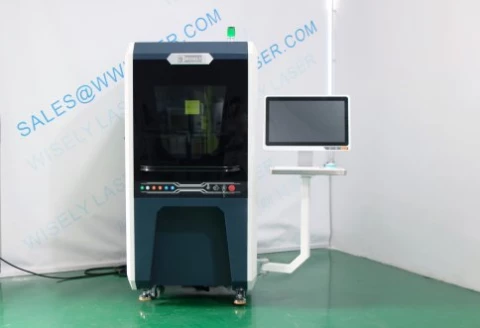

Fiber Laser Marking Machine with Enclosure Type V

SHENZHEN WISELY LASER MACHINERY CO., LIMITED

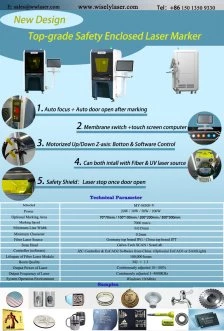

Specifications

Work Area X: 150 mm
Work Area Y: 150 mm
Beam Delivery: 3 Axes, Galvo, Large Platform
Laser Source: Fiber
Laser Output Power: 20 W
Laser Wavelength: 1064 nm (IR)
Marking Speed: 7000 mm/sec
Voltage Requirement: 110V - 60Hz, 220V - 50Hz
Materials: Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Plastic, Concrete, Granite, Marble, Nylon, Ceramic, Leather
Air Assist: Included
Fume Extraction Unit: Included
Safety Enclosure: Included
Model: MY-M20F-V
Power: 20W / 30W / 50W / 100W / 120W
Optional Marking Area: 70*70mm /100*100mm /200*200mm /300*300mm /400*400mm
Marking Depth: ≤2 mm
Minimum Line Width: 0.015 mm
Fiber Laser Source: JPT LP (Optionlal Raycus or IPG)
Scan Head: Galvo-Tech / WISE SCAN from China
Controller (software): JZC Controller & EzCAD2 Software (Optionlal EzCAD3 or SAMLight)
Life Span Of Fiber Laser Module: 100 000 hours
Dimension (L*W*H): 1070*770*1710 mm
Package Size: 178*118*92cm(Air shipping) / 118*88*186cm(Sea shipping)
Net Weight: 240 kg
Document icon Download Data Sheet Download icon

Features


  • Long Lifespan: Fiber laser source with a lifespan of 100,000 hours ensures durability and reliability.

  • Low Energy Consumption: Consumes less than 450W, making it economical and environmentally friendly.

  • High Speed: Marking speed of 7000mm/s, significantly faster than traditional machines.

  • Superior Laser Beam Quality: Definition of 1 micron, 10 times better than traditional products.

  • No Consumables Required: Operates for 8-10 years without needing consumables.

  • Direct Laser Beam: Beam comes directly from the fiber laser source, eliminating the need for adjustments.

  • High-Precision Scan Head: Sealed to prevent dust and water, compact design.

  • Stable Controller: USB interface for swift and stable data transmission, easy to operate with route optimization.

  • Strong Compatibility: Supports PLT, BMP, JPG, TTF, DXF, SHX, AI formats from CorelDraw, AI, PS, AutoCAD, Solidworks, etc.

  • Integrated Air Cooling System: Provides better cooling than YAG laser water-cooling systems, requires no maintenance.

Applications


  • Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.

  • Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.

  • Instrument: Panel Board, Nameplates, Precision equipment, etc.

  • Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.

  • Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.

  • Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
