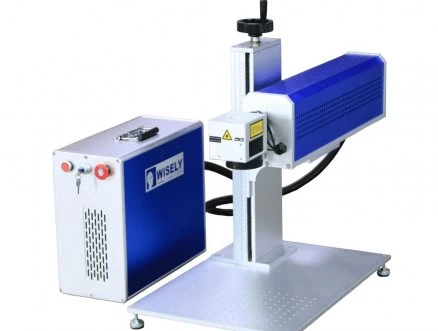

Portable CO2 Laser Marking Machine MY-M30C 30W-100W

SHENZHEN WISELY LASER MACHINERY CO., LIMITED

Specifications

Work Area X: 300 mm
Work Area Y: 300 mm
Beam Delivery: Galvo
Laser Source: CO2
Laser Output Power: 100 W
Laser Wavelength: 10.6 um (IR)
Marking Speed: 7000 mm/sec
Voltage Requirement: 110V - 60Hz, 220V - 50Hz
Materials: Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Nickel, Titanium, Wood, Textile, Nylon, Acrylic, Plexiglass, Ceramic, Leather
Air Assist: Not Specified
Fume Extraction Unit: Not specified
Safety Enclosure: Not Included
Laser Source: COHERENT / Synrad / CRD
Working Size: 70*70mm / 140*140mm / 200*200mm / 250*250mm / 300mm*300mm
Scan Head: GalvoTech
Document icon Download Data Sheet Download icon

Features


  • High-Quality Laser Source: Utilizes imported CO2 laser tube from USA SYNRAD / Coherent, ensuring superior beam quality, stable light, and low failure rate.

  • Fast and Precise Marking: Equipped with a high-speed scanning galvanometer and excellent servo motor for precise and rapid marking.

  • Robust Industrial Control: Features an industrial control computer with strong resistance to disturbances, ensuring stable operation in industrial environments.

  • User-Friendly Software: Comes with a powerful and intuitive controller and software to enhance working efficiency.

  • Durable and Reliable Design: The machine boasts a well-designed structure for better stability and reliability.

  • Long Lifespan: SYNRAD / COHERENT laser tube can be refilled, offering a lifespan of up to 45,000 hours without maintenance.

  • Compact and Sealed Scan Head: The high-precision scan head is compact, well-sealed to prevent dust and water ingress.

  • Wide Compatibility: Supports various file formats including TTF, SHX, BMP, DXF, AI, PLT, compatible with CorelDraw, PhotoShop, AutoCAD, etc.

  • Flexible Marking Areas: Offers multiple optional marking areas ranging from 70x70mm to 300x300mm.

  • Efficient Cooling System: Built-in air cooling system ensures optimal operation within 15℃ to 35℃.

  • Energy Efficient: Operates on 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH with a power consumption of 1.2KW.

  • Optional Accessories: Available add-ons include a rotary device, moving table, lens, fume purifier, and other customized systems.

  • Quick Shipment: Ships within 5-7 working days after payment.

  • Warranty: Comes with a 12-month warranty for the whole machine.

Applications


  • Woodworks: Ideal for engraving and marking wood materials.

  • Craft Gifts: Perfect for personalizing and designing unique craft items.

  • Electronic Components: Suitable for marking and labeling electronic parts.

  • Clothes: Can be used for marking designs or labels on fabric and clothing items.

  • Leather Products: Excellent for engraving on leather goods.

  • Paper: Suitable for marking on various types of paper products.

  • Medicines: Can mark packaging or labels for pharmaceutical products.

  • Food and Package: Useful for marking food packaging and related materials.
