iStar 334T Series Time-Resolved ICCD Camera
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2015
Description
The iStar 334T Series by Andor is a premier intensified CCD camera designed to deliver exceptional performance for high-resolution, nanosecond, time-resolved imaging. With its compact form factor of 13.3 x 13.3 mm, this series is engineered to meet the demands of advanced imaging applications requiring precise temporal resolution. The camera's 1024 x 1024 pixel array ensures detailed image capture, making it an ideal choice for a range of scientific and industrial applications.
One of the standout features of the iStar 334T Series is its ability to achieve Multi-MHz readout speeds, which facilitates rapid image acquisition. This capability is complemented by its USB 2.0 connectivity, providing a simple plug-and-play experience that is compatible with modern laptops and desktops. The integrated Digital Delay Generator (DDG™) enhances the camera's functionality by allowing users to control complex experimental setups through a user-friendly software interface.

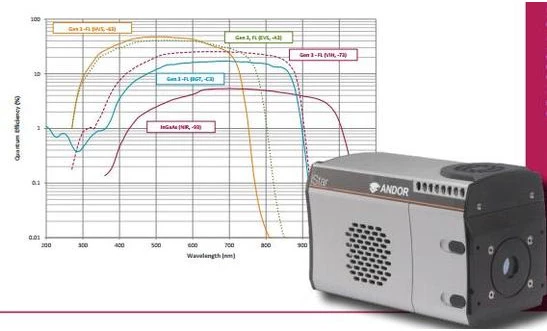

The iStar 334T Series also boasts industry-leading intensifier technology, with Generation 2 and 3 intensifiers offering high quantum efficiency and sensitivity across a broad spectral range of 120 to 1,100 nm. This makes the camera particularly effective for applications such as plasma analysis and laser-induced breakdown spectroscopy (LIBS). The camera's advanced gating capabilities, including close-coupled gating with optical gate widths of less than 2 ns, ensure ultimate temporal resolution for capturing fast transient phenomena.
Designed as an industry workhorse, the iStar 334T Series provides reliable performance in demanding environments. Its thermo-electric cooling system down to -40°C minimizes noise, making it suitable for low-light applications. Additionally, the camera's real-time control interface enables intuitive optimization of image acquisition, ensuring that users can achieve the highest quality results with ease.
iStar 334T Series Time-Resolved ICCD Camera
Specifications |
|
|---|---|
| Sensor Type: | iCCD |
| # Pixels (Width): | 1024 |
| # Pixels (Height): | 1024 |
| Pixel Size (Square): | 13.3 um |
| Peak Quantum Efficiency: | 50 % |
| Full Frame Rate: | 4 fps |
| Bit Depth: | 16 bit |
Features
- USB 2.0 Connection: Simple Plug & Play connectivity for ease of use.
- Multi-MHz Readout Speeds: Enables rapid image capture for fast transition phenomena analysis and focusing mode.
- Integrated Digital Delay Generator: Comprehensive software controls for seamless experiment integration.
- Close-Coupled Gating: Achieves < 2 ns true optical gating speeds for ultimate temporal resolution.
- Lowest Insertion Delay: As low as 19 ns for precise timing control.
- Fibre-Optic Coupling: High optical throughput without vignetting for superior image quality.
- IntelliGate™ MCP Gating: On/Off ratios >108 in the UV for enhanced control.
- Photocathode Gating Rate: Up to 500 kHz for increased Signal to Noise ratio in high-speed experiments.
- Cropped Sensor Mode: Specialized acquisition mode for the fastest image acquisition rate.
- High Resolution Gen 2 and 3 Intensifiers: Offers QE up to 50% and sensitivity options from 120 nm to 1,100 nm.
- Thermo-Electric Cooling: Cools down to -40°C, ideal for low-light applications.
- Real-Time Control: Intuitive Windows user interface for real-time acquisition optimization.
- Photocathode Dry Gas Purge Port: Provides further EBI reduction for low-light applications.
Applications
- Time-Resolved Imaging: Ideal for high-resolution, nanosecond-scale imaging applications.
- Plasma Analysis: Perfect for fast photography of plasma plume emissions.
- LIBS (Laser-Induced Breakdown Spectroscopy): Enhanced performance when used with Andor Mechelle spectrograph.
- Fast Transient Phenomena: Capture rapid transitions with Multi-MHz readout speeds.
- High-Speed Laser-Based Experiments: Photocathode gating rate up to 500 kHz for increased signal-to-noise ratio.
- Low-Light Applications: Thermo-electric cooling down to -40°C and photocathode dry gas purge port for reduced EBI.
- Real-Time Control: Intuitive Windows user interface for real-time acquisition optimization.
- Seamless Experiment Integration: Fully integrated, software-controlled Digital Delay Generator (DDG™) for complex experiments.
Frequently Asked Questions
It is designed for high resolution, ns-scale time-resolved Imaging, and is ideally suited for a wide variety of time-resolved applications including Plasma analysis, LIBS, or fast transient phenomena.
The effective active area of the CCD is 13.3 x 13.3 mm.
The read noise can be as low as 4 e-.
The useful photocathode spectral range is from 120 - 1,100 nm.
The highest available intensifier resolution is Gen 2 and 3, with QE up to 50% and sensitivity options from 120 nm to 1,100 nm.
