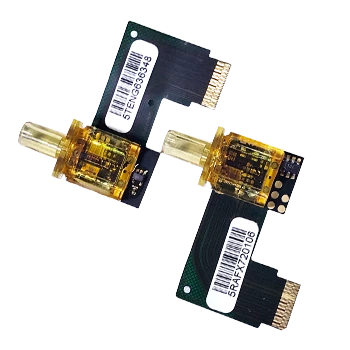

Thumbnail of SX51-01 Optical Subsystem photo 1

Description

The SX51-01 is an optical subsystem with bi-directional capabilities. The subsystems are available as either the transmitter or receiver subassembly supporting up to 14 Gbps using four video- or data-lanes (4 x 3.5 Gbps) along with a simultaneous bi-directional 5 Mbps data and communication channel, all on just one multimode fiber.

The subsystems feature integrated driver/receiver electronics so the need for handling complex optoelectronics in the system design is eliminated and faster design-in times can be achieved. The subsystem includes a ZIF-terminated flex circuit to allow for fast assembly and test during manufacturing without the need for any optical alignment. The SX51 optical subsystem makes it simple to add the benefits of optical interconnects to any data, DVI, or HDMI 1.4 application.

SX51-01 Optical Subsystem

Visit the Inneos Store

Specifications

Signaling Rate Per Lane (Transmitter): 3.5 Gb/s
Signaling Rate Per Lane (Receiver): 3.5 Gb/s
Lane Center Wavelength: 860 nm
Storage Temperature: -40 to 85 °C
Supply Voltage: -0.3 to 3.6 V
Operating Ceramic (substrate) Temperature: 0 to 70 °C
Operating Humidity: 80 %
Average Optical Power, Per Lane: -3.0 to 0.0 dBm
Optical Modulation Amplitude: -6.25 dBm
Center Wavelength – Lane 0: 778 nm
Center Wavelength – Lane 1: 800 nm
Center Wavelength – Lane 2: 825 nm
Center Wavelength – Lane 3: 850 nm
Optical Rise/Fall Time: 100 Ps

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 14 Gbps high-speed data and a 5 Mbps bi-di link over one multimode fiber
  • DVI and HDMI™ 1.4-capable
  • On-board driver/receiver electronics control all transmitter/receiver settings for simple plug-and-play operation
  • Low-stress, highly flexible ZIF connection provides a robust mechanical design
  • Standard SC optical interface
  • Allows for high-speed, long-distance, EMI-immune optical links
  • Single fiber solution reduces cost and complexity of fiber interface

Applications

  • High-speed Optical Links
  • DVI Optical Extenders
  • DVI Switches
  • HDMI Matrix Switches
  • HDMI Optical Extenders

Frequently Asked Questions

What is the SX51-01 optical subsystem?
The SX51-01 is an optical subsystem with bi-directional capabilities that supports up to 14 Gbps using four video- or data-lanes along with a simultaneous bi-directional 5 Mbps data and communication channel, all on just one multimode fiber.
What are the features of the SX51 optical subsystem?
The features of the SX51 optical subsystem include 14 Gbps high-speed data and a 5 Mbps bi-di link over one multimode fiber, DVI and HDMI 1.4 capability, on-board driver/receiver electronics for simple plug-and-play operation, a low-stress ZIF connection for a robust mechanical design, and a standard SC optical interface.
What applications can the SX51 optical subsystem be used for?
The SX51 optical subsystem can be used for high-speed optical links, DVI optical extenders, DVI switches, HDMI matrix switches, and HDMI optical extenders.
What is the part number for the 4-ch Transmitter Optical Subassembly with 5 Mbps Bi-di channel?
The part number for the 4-ch Transmitter Optical Subassembly with 5 Mbps Bi-di channel is TX6F-SX51D-01.
What is the maximum storage temperature for the SX51 optical subsystem?
The maximum storage temperature for the SX51 optical subsystem is 85°C.
