Description
STC-110XGE is a 10G N-Base-T (10M/100M/1G/2.5G/5G/10G) to 10GBase-R media converter.
It helps realize 10 Gigabit Ethernet communication across fiber via the SFP or SFP+ port and extend transmission distance to
- Servers
- Switches
- Patch panels for Data Center 10G N-Base-T to 10GBase-R conversion
- ISP Mobile DU and enterprise broadband service
Marvell based 1G/10G Ethernet Fiber Media Converter
Specifications
Model Name: | STC-110XGE |
---|---|
Port: | 1 Copper, 1 SFP slot |
Fiber Speed: | 10G Based |
Ethernet Speed: | 100M/1000M/2500M/10G |
Mounting Method: | Desktop, 14-slot chassis |
Input Voltage: | DC 5-12V, DC Jack |
Dimension: | 95*71*27mm |
Weight: | 0.2Kg |
Feature: | Unmanaged, Non-PoE |
Operation Temperature: | -20℃~70℃ |
Features
- 1*10M/100M/1G/2.5G/5G/10G BASE-T RJ45 port, 1*10GBASE-X SFP+ slot
- IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
- Support auto MDI/MDI-X function
- Support auto-negotiation and 100Mbps half/full duplex and 1G/2.5G/5G/10Gbps full duplex mode
- Fan-less design, support plug and play installation
- Support watchdog function, which can restart the equipment automatically when it is frozen
- Wide range input voltage: DC5-12V

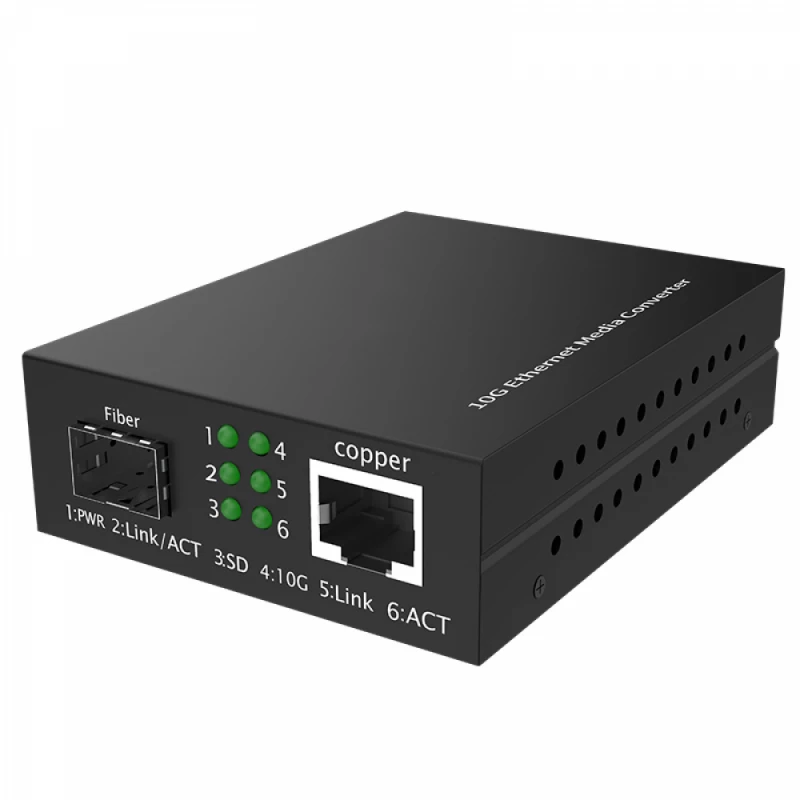

- Full-positioned LEDs to indicate power and network status
- 4KV surge protection; ESD: 8KV/contact, 15KV/air protection
Frequently Asked Questions
Does the optical port support Gigabit module?
No, the fiber port is 10G based and only supports SFP+ module.
Does it support chassis mounting?
Yes, it is compatible with standard 14-slot rack installation.
The chassis can be from any brand.
Is the copper port auto-sensing?
Yes, it is 10M/100M/1000M/2.5G/5G/10G auto-adaptive.
Do your media converters support PoE or Management?
NO.
For PoE function, there are many PoE switches with more ports available.
For management, we do not see a huge demand, it is now NOT available on our product line, but we can develop it if it is about a bulk order.
