Description
STC-28GPM has 8*10/100/1000 adaptive electrical ports, 2*1G SFP ports and 1 console port enjoying
- black iron shell design, internal AC-DC power supply, light weight
- high-quality Network and POE Chip
- seamless connection for 10/100/1000M Ethernet
- with LED indicators to display the connection and operation of equipment
- redundant ring network, VLAN, QoS, speed control, fault alarm and firmware online upgrade
- easy to manage and maintain
- 802.3af and 802.3at standard for each POE port
- intelligent detection of powered devices
- power the devices that comply with the IEEE802.3af or IEEE802.3at standards
- transmit only data to non-POE devices
- The adaptive Ethernet ports automatically adapt to the full duplex or half duplex mode
- The MAC address self-learning function ensures error free data transmission
- The store and forward mode prevents the damaged packets from flooding in the network
- The flow control function can prevent the impact of a large amount of instantaneous data on the network
- The port supports MDI/ MDIX auto flip function, non-blocking line speed transmission of all ports

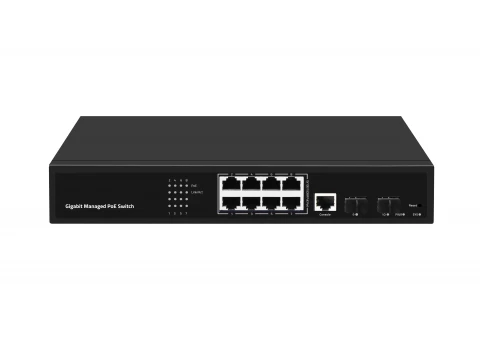

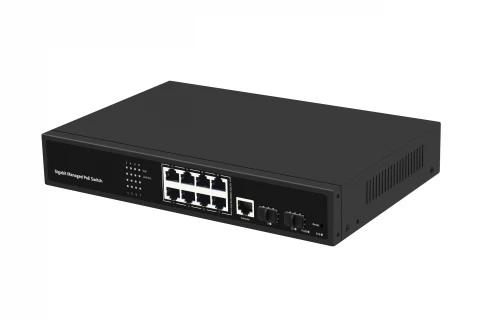

8 port PoE Gigabit Based Vlan ERPS Ring managed Ethernet Switch
Specifications
Model Name: | STC-28GPM |
---|---|
Port: | 8 Copper, 2 SFP slots |
Speed: | 10/10/1000Mbps |
PoE Standard: | PoE af/at |
PoE Budget: | 240W |
Power Input Voltage: | AC100-240V |
Internal Power Adapter: | 52V2.3A, 120W |
Management Features: | VLAN, ERPS, STP, MRP, PoE management |
Dimension: | 268*181*44mm |
Weight: | 1.08Kg net weight |
Features
- 8 x 10/100/1000Mbps auto-sensing Ports, 2x 1000Mbps SFP Ports, 1 x Console Port
- Support IEEE802.3/IEEE802.3i/IEEE802.3u/IEEE802.3ab/IEEE802.3z, store-and-forward
- Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Support port auto flip (Auto MDI/MDIX)
- Panel indicator monitoring the status and help failure analysis
- Fan-less design, Natural Cooling, Compatible with 1U Rack Mount
- Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication
- Support WEB, TELNET, CLI, SSH, SNMP, RMON management
- Support POE Power Management, POE watch dog
- Surge Protection: General 6KV, Differential 2KV(level B), ESD 8KV air, 6KV contact(level B)
Applications
STC-28GPM can be widely used industrial parks, buildings, factories and mines, government agencies, community broadband, etc.
Frequently Asked Questions
Do you do firmware upgrading?
Yes, when there is a new version, we will send customers a zip file for uploading and upgrading.
