Description

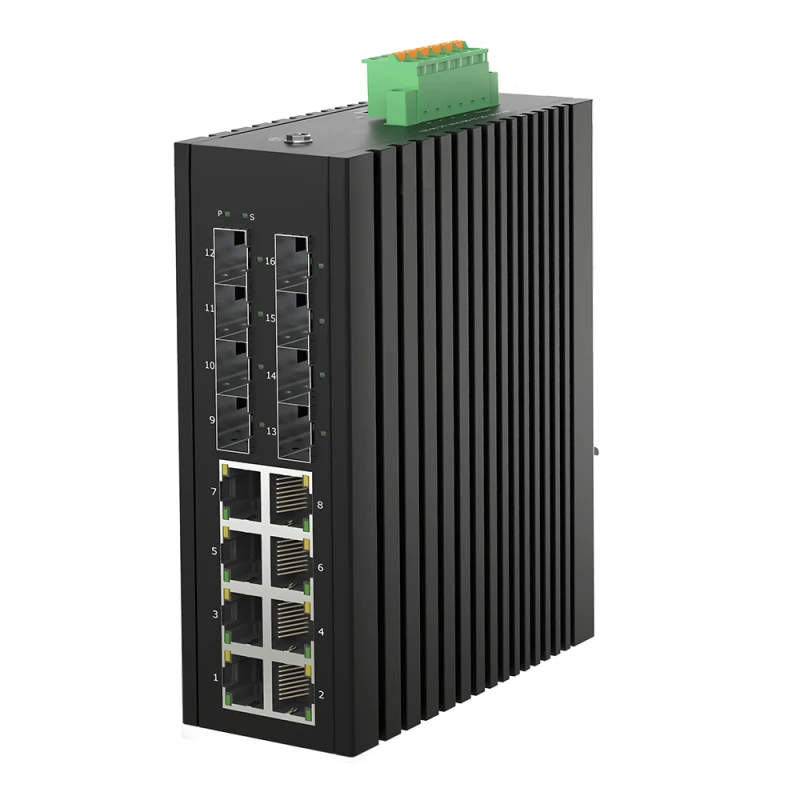

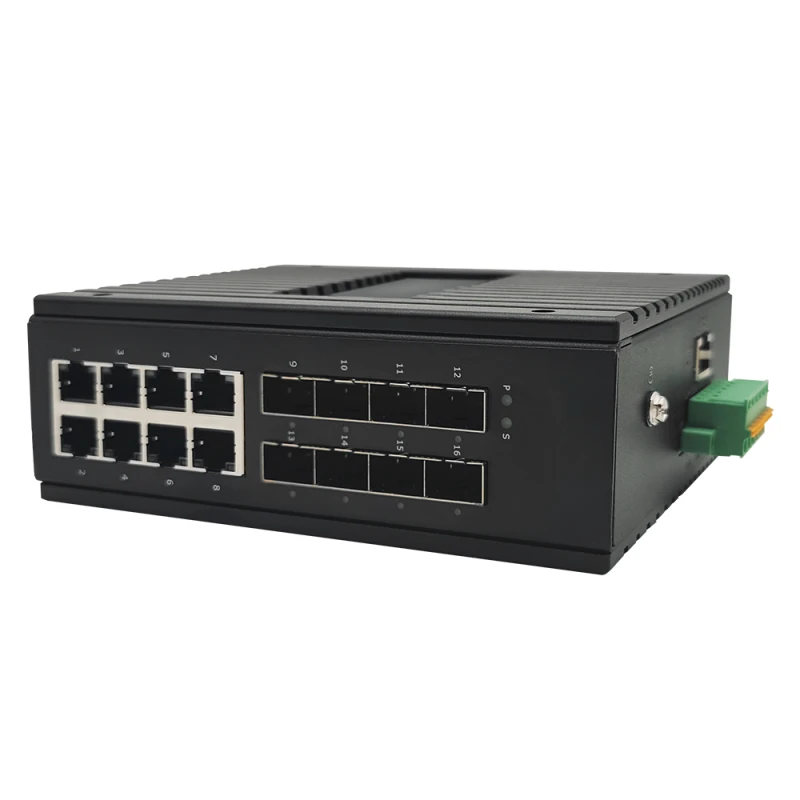

- 8*10/100/1000Base-T RJ45, 4*100/1000Base-X SFP, 4*1G/2.5G/10GBase-X SFP+ slots

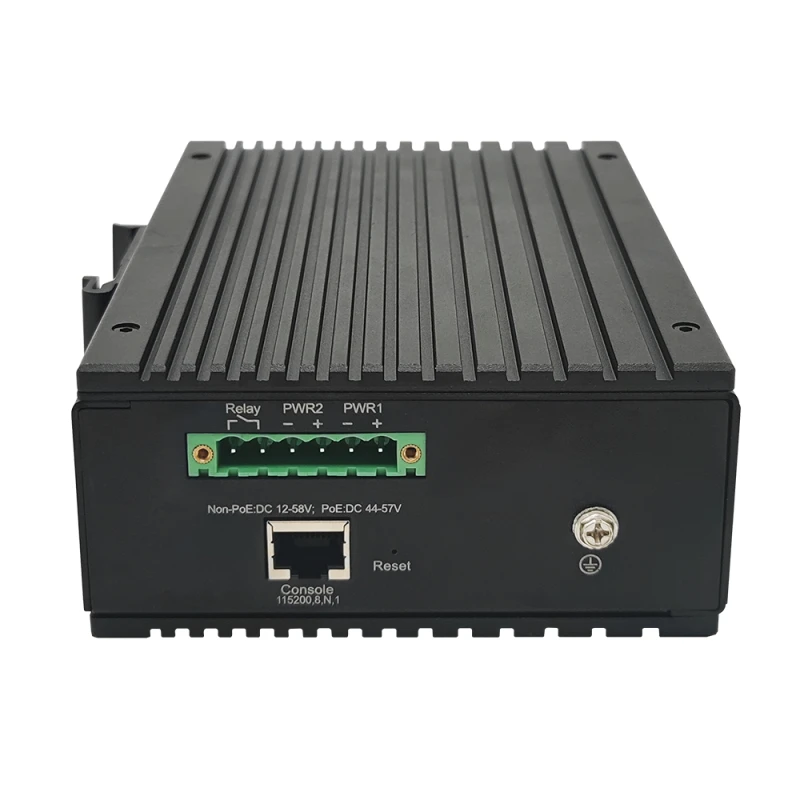

- Redundant power 12-58V input with polarity reverse/over-voltage/over-current protection
- Support one digital output for relay alarm (terminal block Pin 5/6)
- Layer 3 features: Supports static and dynamic routing, RIP, OSPF, BGP4, ECMP, VRRP
- Layer 2 features: VLAN/VLAN Classification/QinQ/STP, RSTP, MSTP
- Port Mirroring/DHCP/Multicast/ACL/IGMP/QoS/LLDP/802.1X/Dying Gasp/SFP DDM
- IPV6 management/Web/SNMP/Telnet/TFTP/Web upgrading
- Support G.8032 ERPS protocol, recovery time ≤20ms
- Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection

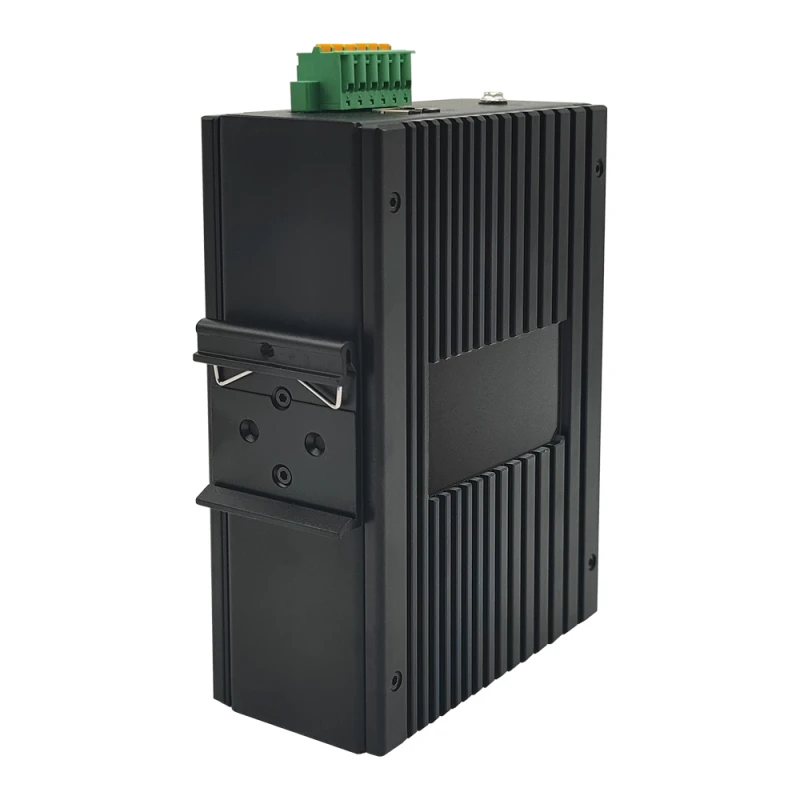

- IP40 fan-less and Din-rail hardware design
- Operation temperature: -40 ℃ ~+75℃

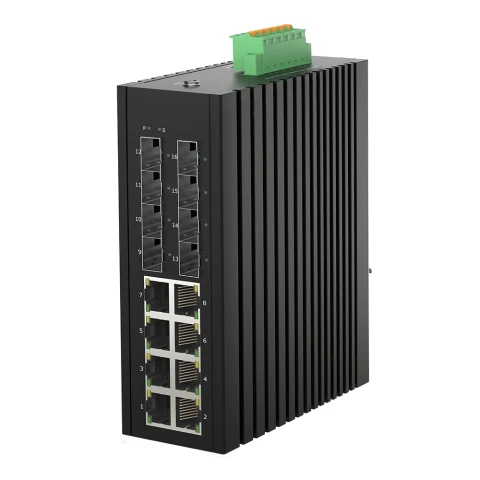

16 port Layer 3 Managed 10G SFP+ Industrial Network Switch
Specifications
| Switching Capacity: | 104 Gbps |
|---|---|
| Throughput: | 154.7 Mpps |
| Packet Buffer: | 12 M |
| Jumbo Frame: | 10 Kb |
| MTBF: | 200000 hours |
| Model Name: | STI-448XGGGM |
| Port: | 4 SFP+ slots, 4 SFP slots, 8 Copper |
| Fiber Speed: | 1G, 2.5G, 10G |
| Ethernet Speed: | 10/100/1000Mbps |
| Management Features: | ARP, RIP, OSPF, BGP, ECMP, Ring, VLAN, STP |
| Power Input: | Dual DC12V~DC58V |
| Dimension: | 158*115*54mm |
| Weight: | 1.2Kg net weight |
| Mounting Method: | Din rail, Wall mounting |
| ERPS Recovery Time: | ≤20ms |
Download Data Sheet
Applications
It is an ideal solution for IP Surveillance, wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries.
- Any network utilizing a mixture of copper and fiber
- IP connectivity and communication
- CCTV system such as network camera, access control
Frequently Asked Questions
What chip is it?
It is Marvell based and highly programmable.
We design the firmware and software.
Does it support CLI?
Yes, it supports. There is CLI manual and web manual available. An admin can realize command line or IP address management.
Can I customize the Web GUI?
Yes, we support Web GUI change(Logo, model name, MAC, SN, SNMP, OID).
It is free of cost.
