Description

  • 4*10/100/1000Base-T RJ45 PoE port, 2*1000Base-X SFP fiber port

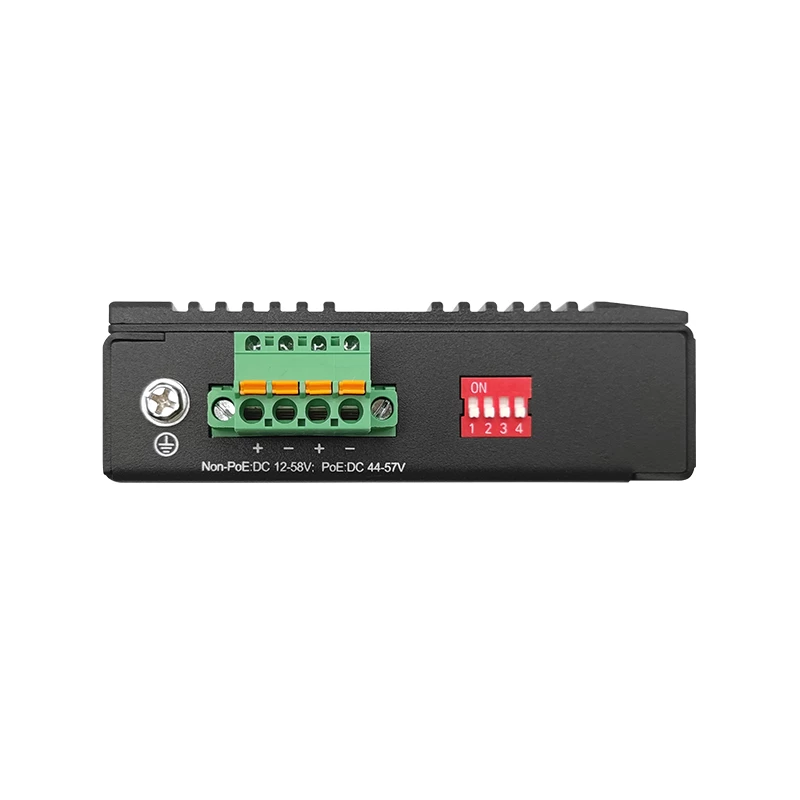

  • DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection
  • Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
  • Powerful Dip switch function(on the top panel) 1. Port isolation; 2. 250m long distance; 3. QoS; 4. PoE watchdog
  • Support 10K Bytes Jumbo frame
  • Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection

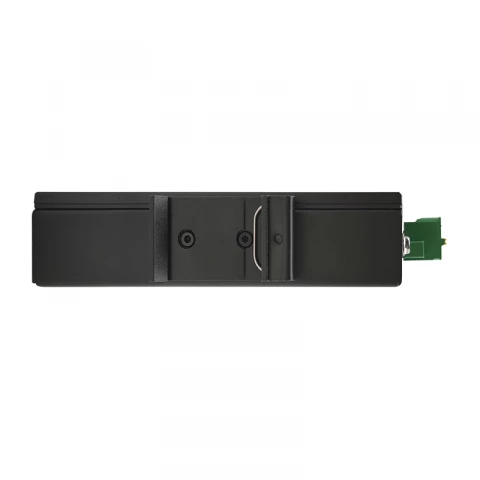

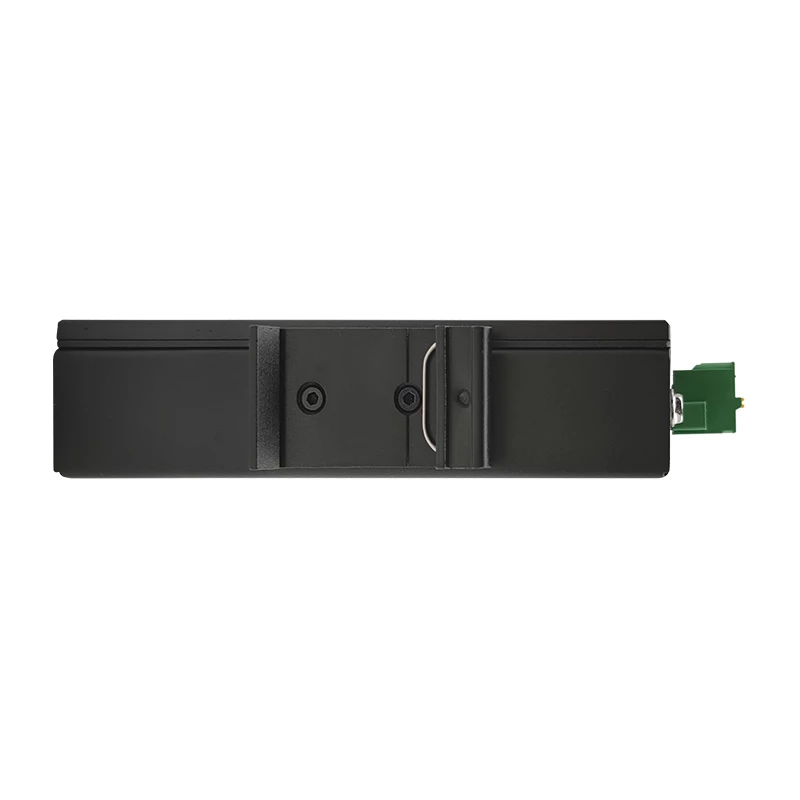

  • IP40 fan-less and Din-rail design
  • Operation temperature: -40 ℃ ~+75℃

4 port PoE Industrial Gigabit Unamanged Network Switch

Specifications

Switching Capacity: 12 Gbps
Throughput: 17.856 Mpps
Packet Buffer: 3 M
Jumbo Frame: 10 Kb
MTBF: 200000 hours
Model Name: STI-244GP
Port: 4 Copper, 2 SFP slots
Speed: 10/100/1000Mbps
PoE Protocol: IEEE802.3af, IEEE802.3at
PoE Budget: 120W
Power Voltage: Dual DC44V-57V
Dimension: 130*98*30mm
Weight: 550g net weight
PoE Distance: 100-meter, 250-meter
Operation Temperature: -40℃ ~+75℃

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Applications

It is an ideal solution for IP Surveillance, wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries.

1. Any network utilizing a mixture of copper and fiber

2. IP connectivity and communication

3. CCTV system such as network camera, access control

Frequently Asked Questions

Is it managed?
No, this is an unmanaged PoE switch. We also have a managed version, that is STI-244GPM.
What is the PoE output?
It is DC48V output, active PoE.
