Description

  • 16*10/100/1000Base-TX RJ45 port

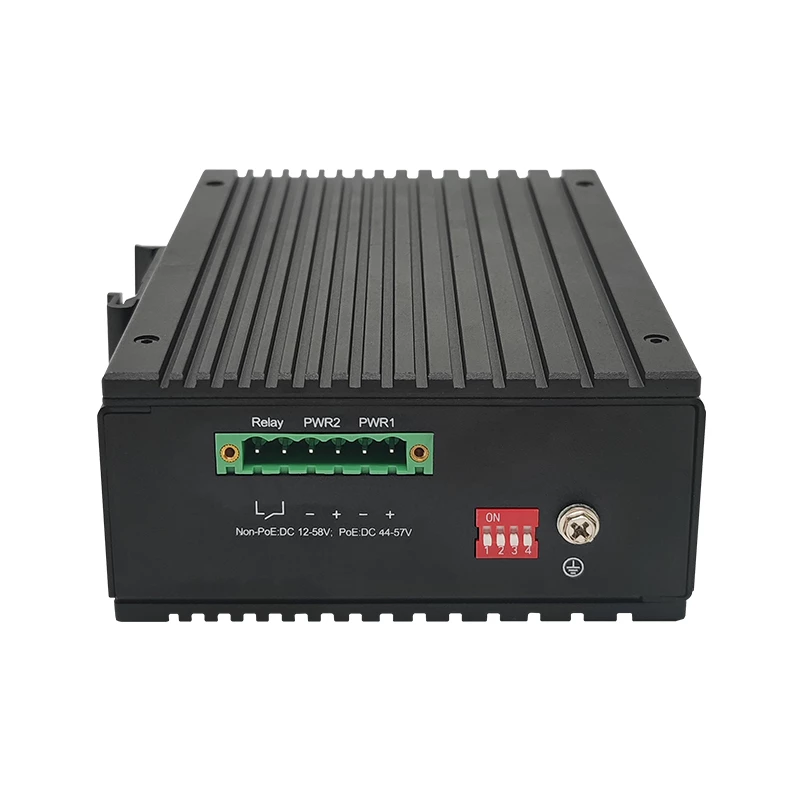

  • DC 12~58V input, redundant power supply with polarity reverse/over-voltage/over-current protection
  • Support one output relay alarm(terminal block Pin 5/6) for DC power failure
  • Powerful Dip switch function(on the top panel) 1. Port isolation; 2. Flow control; 3. QoS; 4. Broadcast storm restrain
  • Support 10K Bytes Jumbo frame
  • Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection

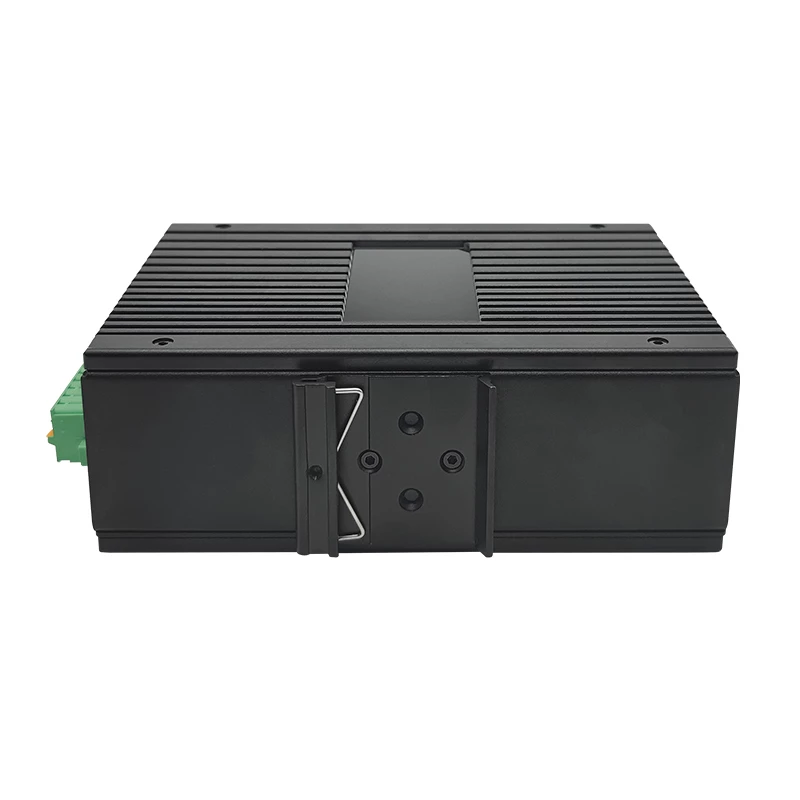

  • IP40 fan-less and Din-rail design
  • Operation temperature: -40 ℃ ~+75℃

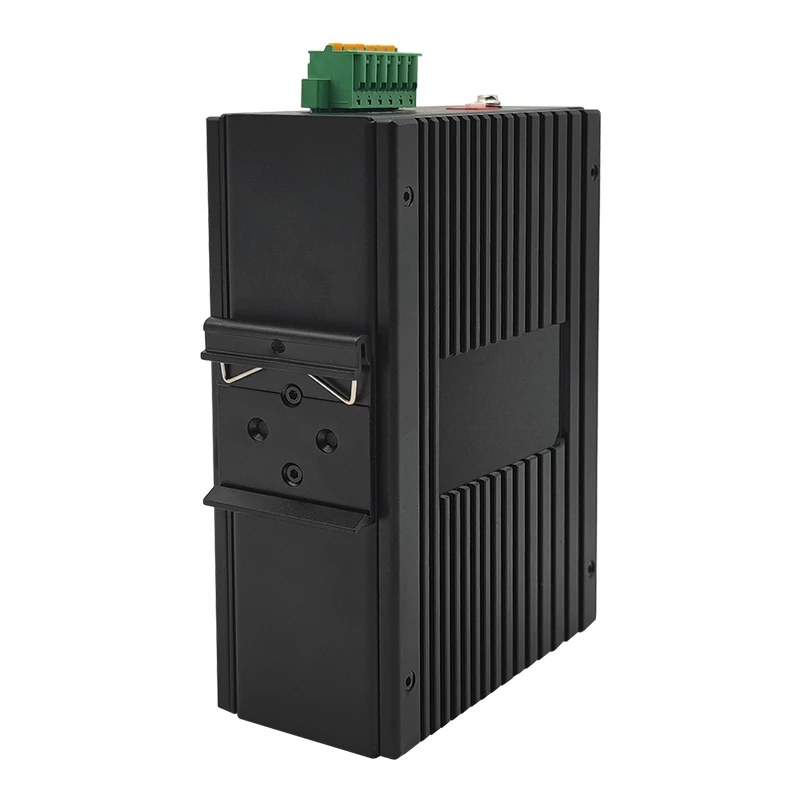

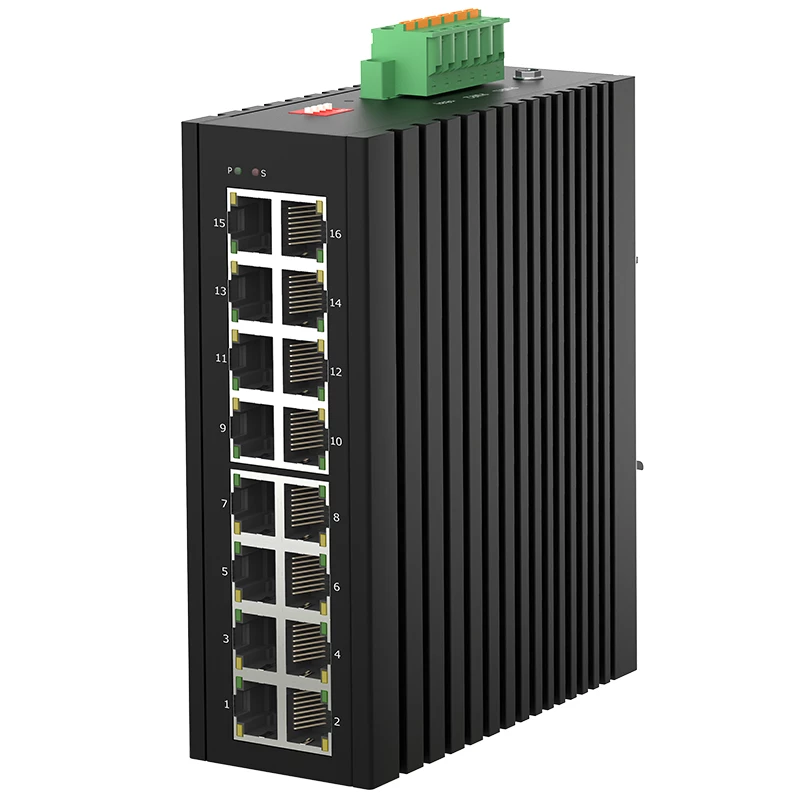

16 port Gigabit Industrial Din Rail Unmanaged Ethernet Switch

Specifications

Switching Capacity: 32 Gbps
Throughput: 47.6 Mpps
Packet Buffer: 2 M
Jumbo Frame: 10 Kb
MTBF: 200000 hours
Model Name: STI-0160GE
Port: 16 Copper
Speed: 10/100/1000Mbps
Dimension: 158*115*54mm
Weight: 1.2kg net weight
Feature: Unmanaged, Non-PoE
Protection Level: IP40
Mounting Method: Din rail or wall mounted
Power Input: Redundant DC12V~58V
Operation Temperature: -40℃ ~+75℃

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Applications

It is an ideal solution for IP Surveillance, wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries.

1. Industrial Automation

2. IP-based Communication

3. Vehicle Network Solution

Frequently Asked Questions

What are the variants?

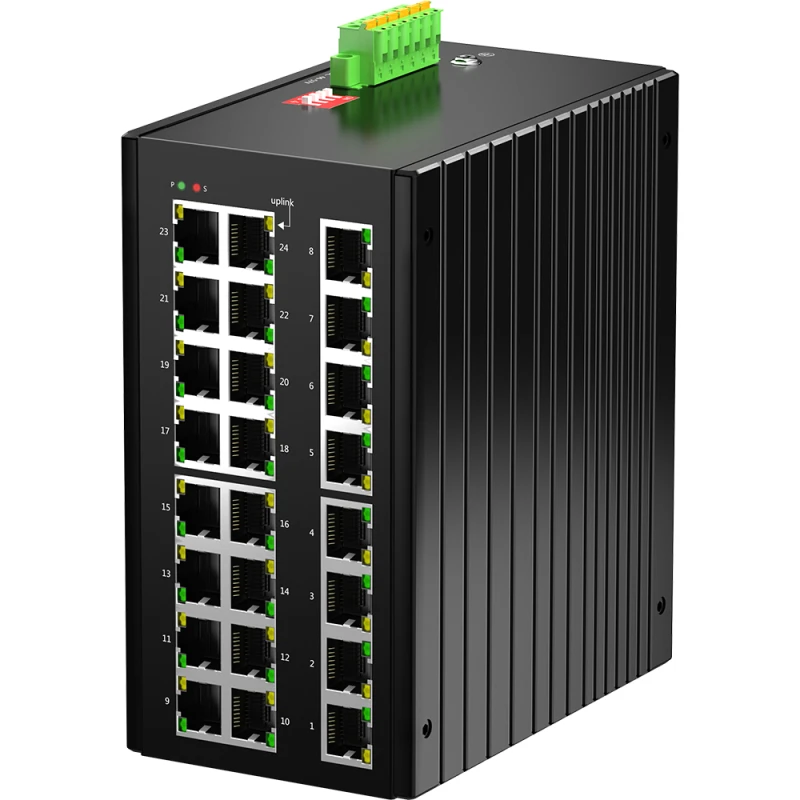

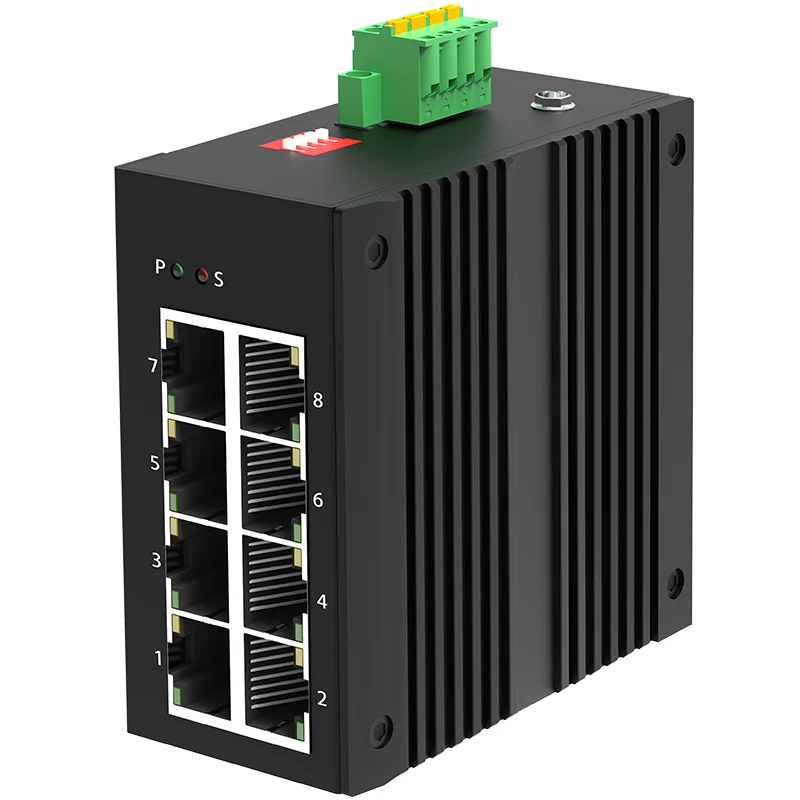

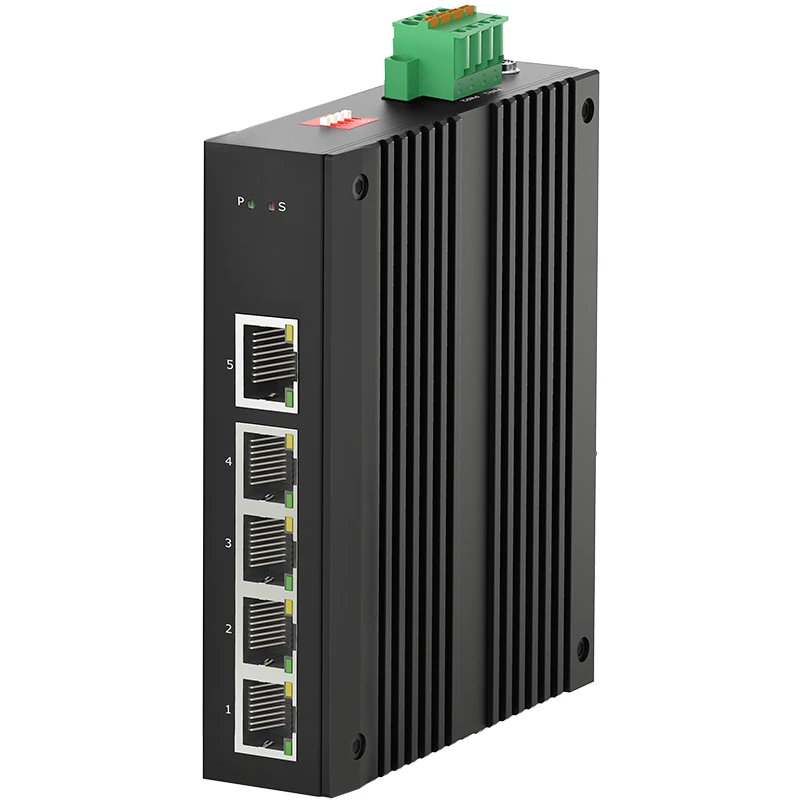

We have 5/8/16/24 port Gigabit network switches. Their model names are STI-050FE, STI-050GE, STI-080FE, STI-080GE and STI-0240GE. PoE version is also available.
Can I use a battery to start your device?
Yes, as long as the voltage stands in DC12V~DC58V and the power Pins are properly connected.

Got more questions? Use the inquiry form to ask the supplier directly.
