Description

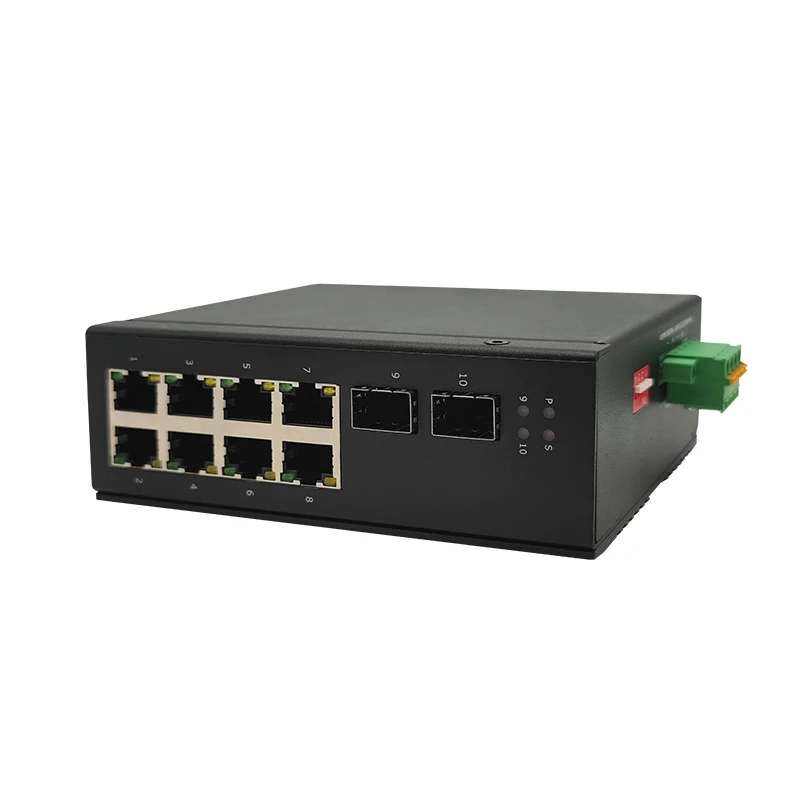

- 8*10/100/1000Base-T RJ45 PoE port, 2*1000Base-X fiber port(SFP/SC/ST/FC optional)
- Redundant DC44-57V power input with polarity reverse protection
- Comply with IEEE802.3af PoE and IEEE802.3at PoE+ standard

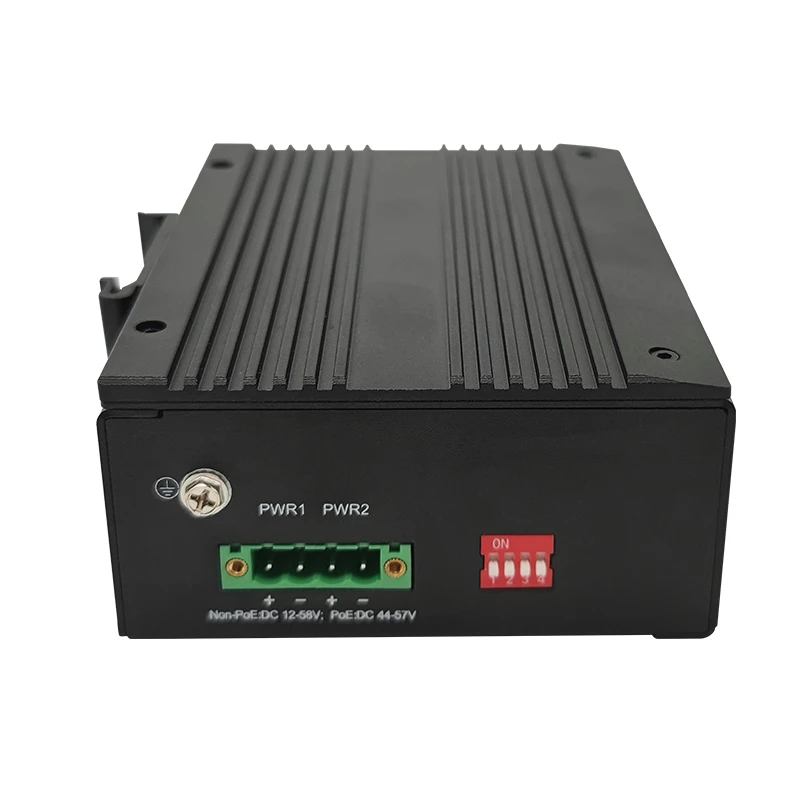

- Powerful DIP switch function(on the top panel)
1. Port isolation; 2. 250m long distance; 3. QoS; 4. PoE watchdog
- Support 10K bytes jumbo frame
- Support 4KV surge protection and ESD: Air-15KV, Contact-8KV protection

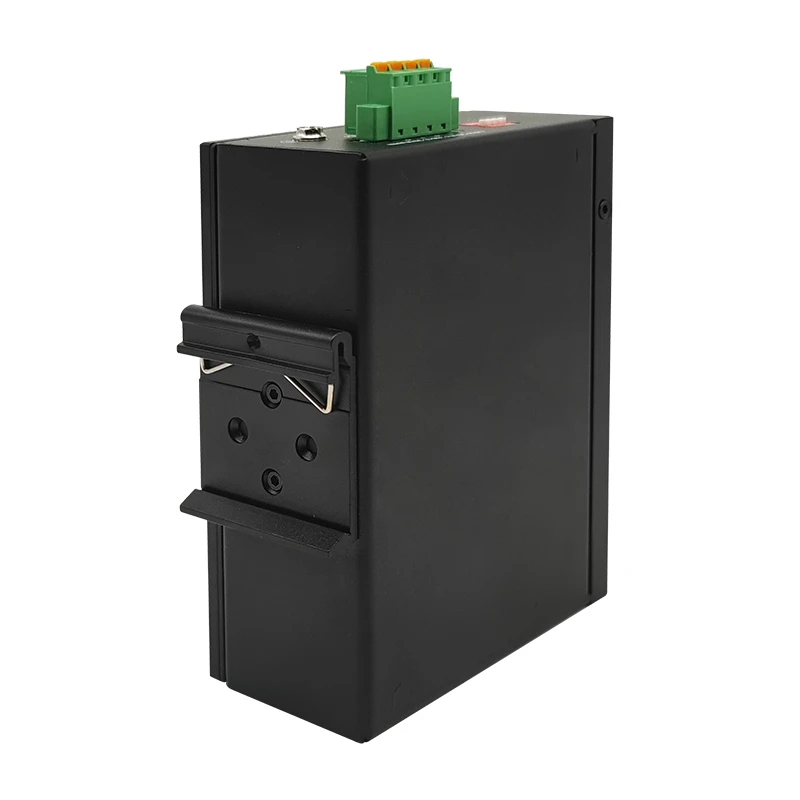

- IP40 fan-less and Din-rail design
- Operation temperature: -40℃~+75℃

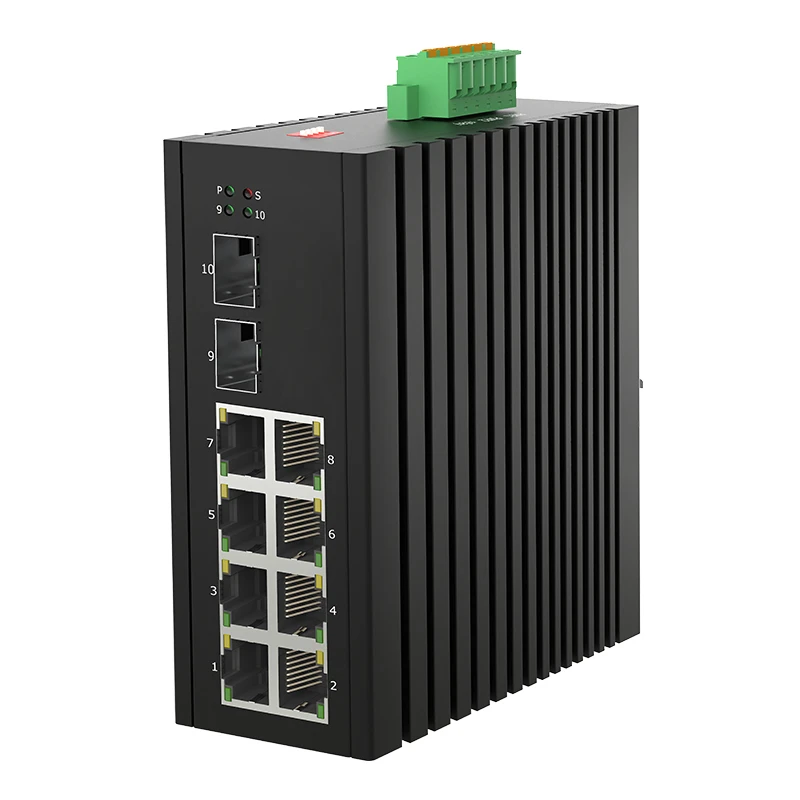

Hardened Unmanaged Gigabit Network 8 Port DIN PoE Switch
Specifications
| Model Name: | STI-288GP |
|---|---|
| Fiber Port: | 2*SFP slot, 1G based |
| Ethernet Speed: | 10/100/1000Mbps |
| Power Input: | Dual DC44V~57V |
| PoE Output: | DC48V active PoE |
| PoE Protocol: | 802.3af, 802.3at |
| PoE Distance: | 100-meter or 250-meter |
| PoE Budget: | Max 240W |
| PoE Wiring: | 1/2(+), 3/6(-) |
| Certification: | CE/FCC/RoHS/Reach/UKCA |
Download Data Sheet
Applications
With above features, it is an ideal solution for IP Surveillance, wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries
- Any network utilizing a mixture of copper and fiber
- IP connectivity and communication
- CCTV system such as network camera, access control
Frequently Asked Questions
Is it managed?
No, it is unmanaged.
We have a managed model available, that is STI-288GPM.
What power supply should I use?
This is an 8-port PoE switch, please make sure that the power input range stands in DC44V~DC57V.
Mean Well NDR-240-48 is a good option.
Can your switches work with other brand switches?
Yes, it is unmanaged and about the universal networking protocols, so there will not be incompliances.
What is the PoE distance?
100-meter or 250-meter.
This PoE switch supports 250-meter PoE transmission distance for port 1~4, please dial on DIP 2.
What is the fiber speed?
It is 1000M based(1.25Gb/s)and NOT supporting 100M(155Mb/s)or 2.5G optical modules.
