Description

  • 2*10/100/1000Base-T RJ45 PoE port, 2*100/1000Base-X SFP fiber port
  • Redundant DC44-57V power input with polarity reverse protection
  • Comply with IEEE802.3af PoE and IEEE802.3at PoE+ standard

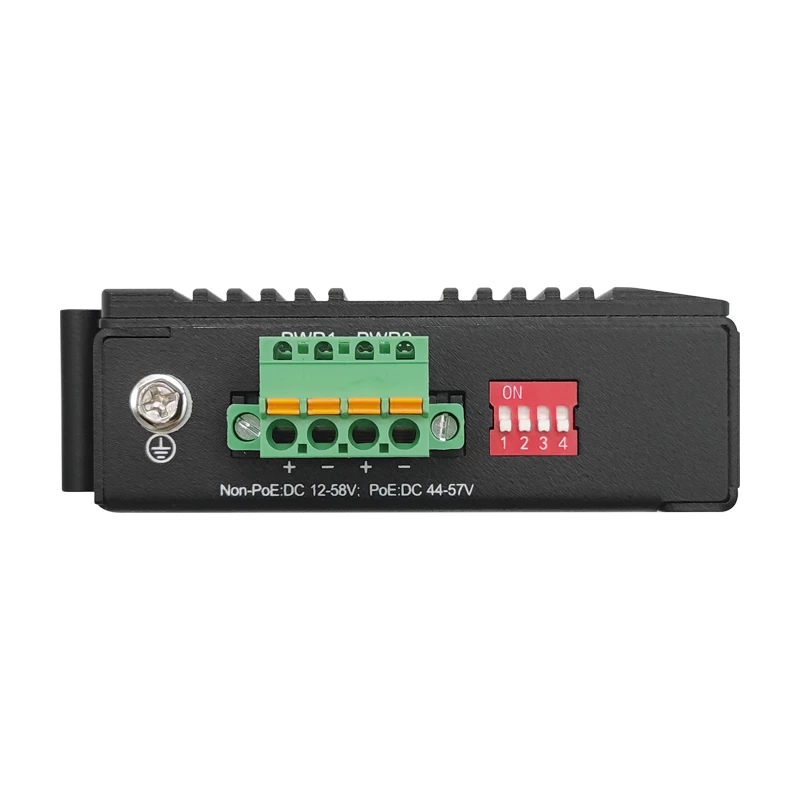

  • Powerful DIP switch function(on the top panel)

1. Fiber redundant; 2. Fiber ports 100/1000M selection; 3. 250m long distance; 4. PoE watchdog

  • Support 10K Bytes Jumbo frame
  • Support 1M large buffer
  • Support 4KV surge protection and ESD: Air-15KV, Contact-8KV protection

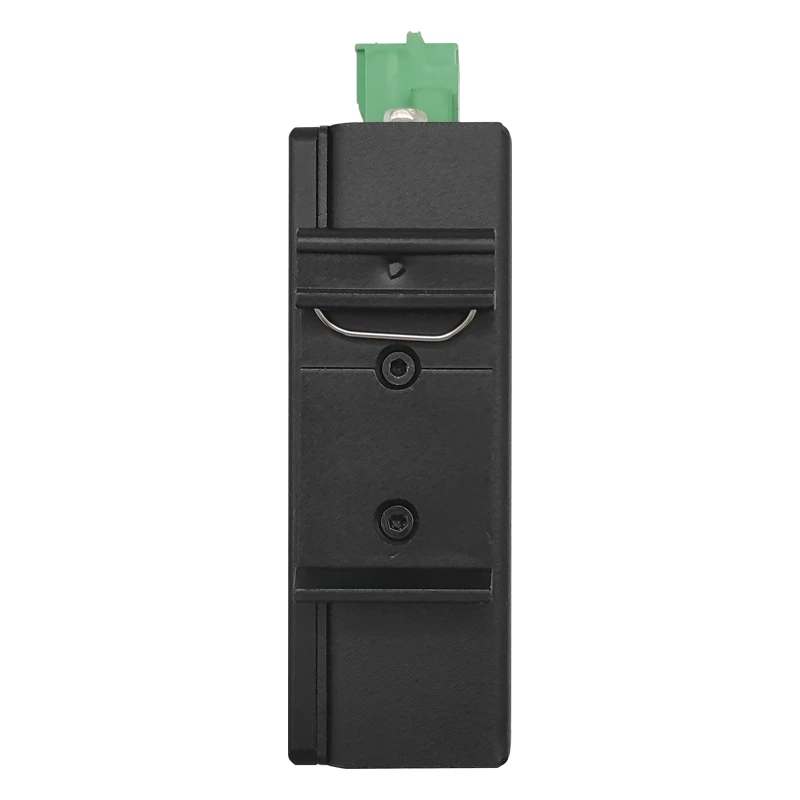

  • IP40 fan-less and Din-rail design with compact size(85*85*30mm)
  • Operation temperature: -40℃~+75℃

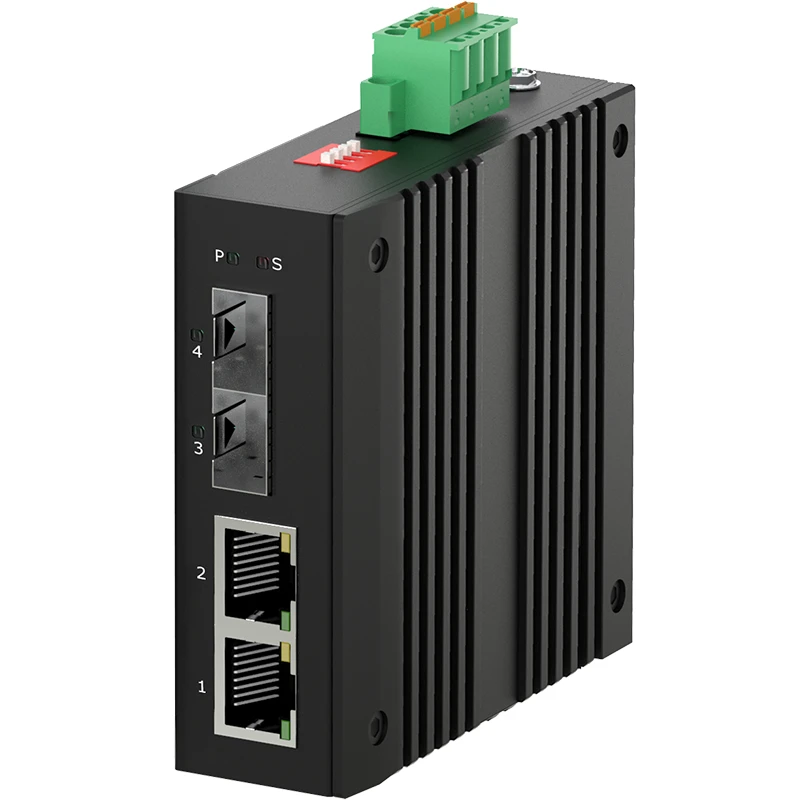

Mini Din Gigabit Industrial Unmanaged PoE Fiber Switch

Specifications

Switching Capacity: 8 Gbps
Throughput: 11.9 Mpps
Packet Buffer: 1 M
Jumbo Frame: 10 Kb
MTBF: 200000 hours
Model Name: STI-222GP
Port: 1 Copper, 1 SFP slot
Fiber Speed: Support 100/1000M selection
Ethernet Speed: 10/100/1000Mbps
Dimension: 85*85*30mm
Weight: 300g net weight
Input Voltage: Redundant 44V-57VDC
Output Voltage: DC48V
PoE Budget: 60W max
Operation Temperature: -40℃ ~+75℃

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Applications

With above features, it is an ideal solution for IP Surveillance, wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries.

  1. Any network utilizing a mixture of copper and fiber
  2. IP connectivity and communication
  3. CCTV system such as network camera, access control

Frequently Asked Questions

What are its bullet points?
It is popular for its compact size, rich LED indicators and DIP functions.
What is the price?
33usd/pc STI-222GP Industrial PoE Switch 2*100M/1000M SFP+2*10/100/1000M RJ45, PoE af/at, 60W, Unmanaged, Support DIP function DC44V~DC57V(Removable 4 PIN Industrial Terminal Block) , -40℃ to 75℃, Din mounted Without optical module, Without Power adapter

Got more questions? Use the inquiry form to ask the supplier directly.
