Description
OTS3000-MSTP is a kind of optical communication integrated platform, GLsun independently research, develops and designs it. Its high density and high integration enable the system to provide rich functions and flexible configurations. Otherwise, it provides LCD GUI user interface and rich network management functions. OTS3000 adopts the standard 19 inches chassis design, with the size of 1U, 2U,4U etc.

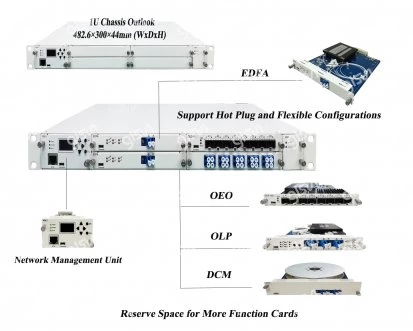

The redundant power and pluggable design support dual AC, dual DC, and AC&DC power supply mode. This equipment provides 20 pieces functional plug-in module slots maximum, supports two kinds of NMU and 50W,100W,200W power module, and supports DWDM, CWDM, OADM, OTU, OEO, EDFA, SOA, OSW, OPD, LSU, VOA, and TMUX functional plug-in module, thus it is widely used in optical transmission, optical protection, fiber cable monitoring and data safety field.
OTS3000-MSTP Transmission Equipment
Specifications

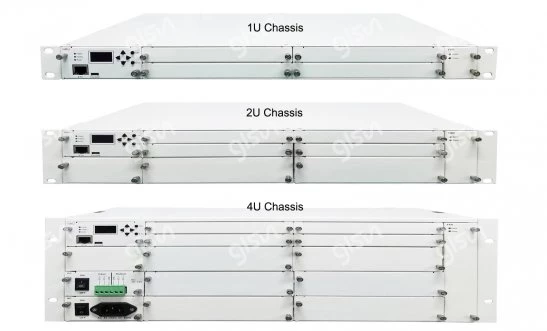

Chassis Size: | 1U, 2U, 4U |
---|---|
4U Dimension: | 482.6×300×178 mm |
1U Dimension: | 482.6×300×44 mm |
2U Dimension: | 482.6×300×89 mm |
Maximal Device Power: | 100 W |
Power Supply: | 100-240 V |
Device Weight: | 6 kg |
Fan Type: | Plug-in module |
Features
- Modularized design of the function card flexible networking of CWDM, DWDM transmission, protection and monitoring.
- Configuration, performance, alarm and safety management etc.
- Pluggable 1+1 redundant power provide stable power supply for the equipment.

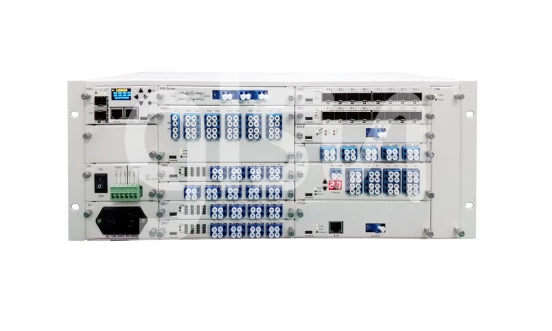

- 4U equipment provides 19 function card slots maximum, to enrich the function for network.
- Web based GUI user interface management, easy for engineering installation.
- Support SNMP, WEB, TELNET and SSH network protocol remote management.
Applications
- CWDM, DWDM Optical Transmission Network
- Optical Protection Network
- Cable Monitoring Network
Frequently Asked Questions
What is the OTS3000-MSTP?
The OTS3000-MSTP is an optical communication integrated platform developed by GLsun. It is a high-density and high-integration system that provides rich functions and flexible configurations.
What are the power supply options for the OTS3000-MSTP?
The OTS3000-MSTP supports dual AC, dual DC, and AC&DC power supply modes. It has redundant power and a pluggable design for stable power supply.
How many functional plug-in module slots does the OTS3000-MSTP support?
The OTS3000-MSTP supports a maximum of 20 functional plug-in module slots.
What types of plug-in modules are supported by the OTS3000-MSTP?
The OTS3000-MSTP supports various plug-in modules, including DWDM, CWDM, OADM, OTU, OEO, EDFA, SOA, OSW, OPD, LSU, VOA, and TMUX functional modules.
What are the network management options for the OTS3000-MSTP?
The OTS3000-MSTP supports SNMP, WEB, TELNET, and SSH network protocol remote management. It also has a web-based GUI user interface for easy engineering installation.
