Description
STC-624XGDGPM has 24*10/100/1000/2500M adaptive electrical ports, 6*10G SFP+ ports and 1 console port enjoying
- black iron shell design, internal AC-DC power supply
- seamless connection for 10/100/1000/2500M Ethernet
- with LED indicators to display the connection and operation of equipment
- support automatic DoS attack prevention, SNMP, IEEE 802.1, spanning tree and rapid spanning tree protocol, link aggregation
- easy to manage and maintain
- The adaptive Ethernet ports automatically adapt to the full duplex or half duplex mode
- The MAC address self-learning function ensures error free data transmission
- The store and forward mode prevents the damaged packets from flooding in the network
- The flow control function can prevent the impact of a large amount of instantaneous data on the network
- The port supports MDI/MDIX auto flip function, non-blocking line speed transmission of all ports

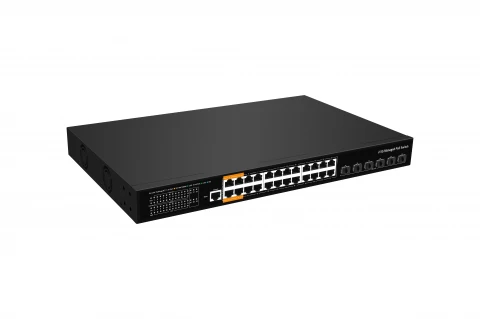

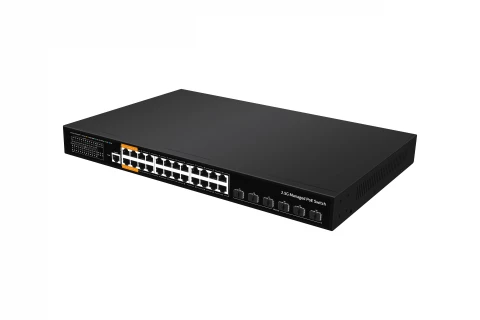

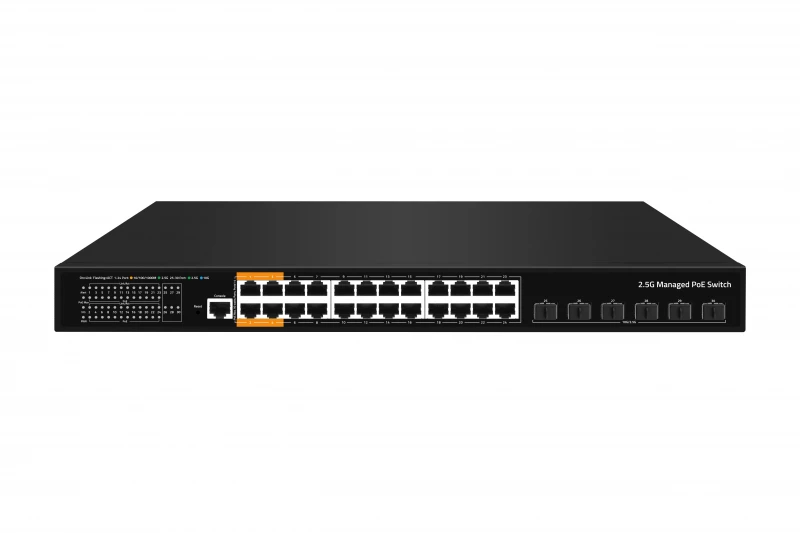

24 Port 2.5G Ethernet PoE 10G SFP+ Commercial Rack Managed Switch for WIFI 5 WIFI 6
Specifications
Model Name: | STC-624XGDGPM |
---|---|
Port: | 24 Copper, 6 SFP+ slots |
Ethernet Speed: | 10/100/1000/2500Mbps |
Fiber Speed: | 1G/2.5G/10G |
POE Budget: | 400W |
POE Protocol: | 15.4W, 30W, 60W, 90W |
Power Input Voltage: | AC100-240V |
Internal Power Supply: | DC54V7.69A, 12V5A |
Management Features: | MRP, STP, ERPS, OSPF, IPV6, DDM, PoE management |
Dimension: | 440*281*44mm |
Features
- Compatible with IEEE 802.1d/IEEE 802.1w/IEEE 802.1s/IEEE 802.1p/IEEE 802.3/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z/IEEE 802.3ab/IEEE 802.3ae standards
- L3 Management, support DHCP Server, QoS, ACL control, SNMP V1/V2/V3, IGMP Snooping v1/v2
- Support Spanning Tree Protocol STP/RSTP/MSTP (ERPS), Support loop detection and self-healing
- Support remote loopback monitoring and control(802.3ah OAM)
- Support IPV4/IPV6, RIP v1/v2, OSPF v2
- Support multiple VLAN divisions, mac VLAN, protocol VLAN, private VLAN
- Support IP address + MAC address + VLAN+Port binding, DHCP Snooping
- Support IP source and DAI protection
- Support IEEE802.3af(15.4W), IEEE802.3at (30W) and IEEE802.3bt (90W)
- Support WEB, TELNET, CLI, SSH, SNMP, RMON management
- Support PoE watchdog, PoE Port power supply, Power configuration and PoE time management
- Surge Protection: General 4KV, Differential 2KV(level B), ESD 12KV air, 6KV contact(level B)
Applications
STC-624XGDGPM can be used as core layer, distribution layer, and access layer switch for various business network applications.
Frequently Asked Questions
Is the speed auto-adaptive?
Yes, the optical ports support 1G/2.5G/10G fiber modules, the copper port speed is auto-sensing.
What chip does it use?
It is Realtek based. We will do regular upgrading to fix bugs and offer stronger functions.
