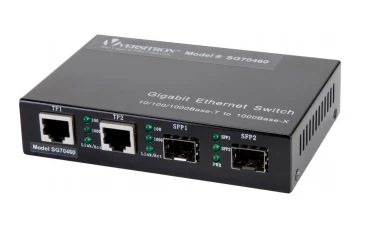

SG70460 4-Port 10/100/1000 Ethernet Switch
Description
Need to extend your Ethernet network to a remote location that has only one or two LAN devices? Need to create a LAN using a daisy-chain link with f.o. cable? The SG70460 mini-switch may be just what you're looking for. The SG70460 is unmanaged and offers 2 ports of 10/100/10000M with RJ45 connectors and 2 slots for 1G f.o. SFP modules. This product is ideal for those applications where a linear bus topology is desired. The 2 slots for 1G SFP fiber modules (sold separately) readily support a "drop-and-add" configuration at each node along the f.o. cable bus. The use of f.o. cable in this type of application can significantly improve overall network speed, while providing security and immunity to EMI/RFI. As with all VERSITRON products, the SG70460 carries a lifetime warranty.
SG70460 4-Port 10/100/1000 Ethernet Switch
Specifications |
|
|---|---|
| Number Of Ports: | 2-4 |
| Wavelength Range: | 1000-1600nm |
| Insertion Loss (typical): | - dB |
| Return Loss: | - dB |
Features
(2) 1000Base SFP Slots
(2) 10/100/1000Mbps Copper Ports
Supports Auto Negotiation
Supports MDI/MDI-X
Supports 802.3x Flow Control and Back-Pressure
Supports VLAN and QoS
Supports Broadcast Storm Protection
Supports Jumbo Frames
Low power consumption (3W)
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
External Vendor
Claim Versitron Page to edit and add data
Frequently Asked Questions
Yes, the SG70460 supports auto negotiation.
The SG70460 has 4 ports, including 2 ports of 10/100/1000M with RJ45 connectors and 2 slots for 1G f.o. SFP modules.
The SG70460 has low power consumption of 3W.
The SG70460 mini-switch is used to extend Ethernet networks to remote locations with only one or two LAN devices or to create a LAN using a daisy-chain link with fiber optic cable.
The SG70460, like all VERSITRON products, carries a lifetime warranty.
