Description

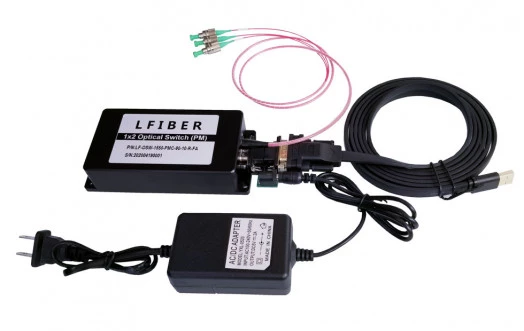

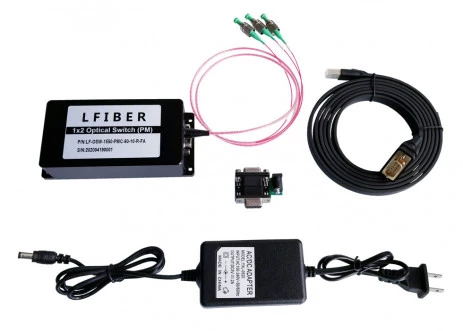

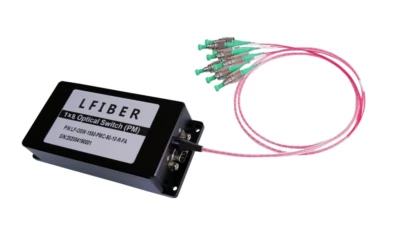

Redirects or blocks optical signals from a given input port to a given output port in an optical fiber transmission line. At the same time, by using Panda PM fibers it’s able to maintain a well-defined state of polarization (SOP) of the light. Lfiber’s polarization maintaining (PM) fiber optical switch features less than 0.8 dB insertion loss, high extinction ratio, very low crosstalk, and fast switching time. These PM fiber switches have been widely used in a variety of fiber-optic applications, including protection, restoration, testing & measurement, and monitoring in telecom applications and many PM fiber-optic systems.
Notes:
- Unless otherwise specified, the slow axis of the fiber is aligned with the key of the PM fiber connector.
- The PM fiber optical switch is powered by a universal AC/DC adaptor that is able to convert 100-250 VAC to 5 VDC.
- Lfiber can offer a plug and play solution for programming (RS232 control) the switch via USB upon request. If there is a need,
we can offer software solutions (based on Microsoft Windows OS) so that users can easily control the PM fiber switches. - This PM fiber switch can be installed in 1U units on standard 19-inch racks. We offer customization upon request if needed.
- The polarization-maintaining (PM) fiber switch is customizable and above specifications are subject to change without notice.
- For product customization or special requirements, please contact Lfiber’s sales representative.
Polarization Maintaining Fiber Optical Switch
Specifications
Number Of Ports: | 1 – 256 |
---|---|
Wavelength Range: | 400 – 2000 nm |
Insertion Loss (typical): | 0.6 dB |
Return Loss: | 50 dB |
Fiber Type: | Panda PM fibers |
Connector: | FC/UPC, FC/APC, LC/UPC, LC/APC, SC/UPC, SC/APC, MPO Male, MPO Female, etc. |
Extinction Ratio (dB): | ≥ 20 dB (standard) or better |
Lifetime (cycles): | ≥ 10 million |
Features
- Low Insertion Loss and High Reliability
- Serial Interface (RS-232)
- Modularized Design
- Epoxy-free on Optical Path
Applications
- Optical Signal Switching and Routing
- Optical Network Monitoring
- Testing of Fiber Optic Component
- Military Communications
Frequently Asked Questions
What is the purpose of the Polarization Maintaining Fiber Optical Switch?
The switch redirects or blocks optical signals from an input port to an output port while maintaining a well-defined state of polarization (SOP) of the light.
What are the key features of the PM fiber optical switch?
The PM fiber optical switch features less than 0.8 dB insertion loss, high extinction ratio, very low crosstalk, and fast switching time.
What applications can the PM fiber optical switch be used for?
The switch can be used in a variety of fiber-optic applications, including protection, restoration, testing & measurement, and monitoring in telecom applications and PM fiber-optic systems.
Can the PM fiber optical switch be customized?
Yes, the switch is customizable and Lfiber offers customization upon request if needed.
How is the PM fiber optical switch powered?
The switch is powered by a universal AC/DC adaptor that can convert 100-250 VAC to 5 VDC.
