Fiber Fabry-Perot Tunable Filter - 2,000 Finesse - Wide Range - Get a price quote from Luna Innovations

Name: Fiber Fabry-Perot Tunable Filter - 2,000 Finesse - Wide Range
Brand: Luna Innovations
Availability: InStock

Description

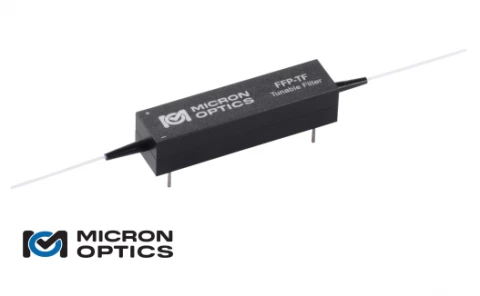

Micron Optics’ patented FFP-TF, fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction. There are no collimating optics or lenses, thus with the FFP tunable filter Micron Optics has eliminated the pitfalls of other Fabry-Perot component technologies, including misalignment, environmental sensitivity, and extraneous modes.

Specifications

Operating Wavelength Range:	1460 – 1620 nm
Free Spectral Range:	27500 GHz
Finesse:	2000
Bandwidth:	13.8 GHz
Insertion Loss:	3 dB
Input Power:	15 mW

Download Data Sheet

Features

All-fiber platform

High resolution and low loss design

Super-cavity finesse

Vibration and shock resistant

Thermally stable

Fast scanning permits fast, accurate measurements

Applications

Optical Coherence Tomography

Optical performance monitoring

Spectrum analysis

Tunable optical noise filtering

Tunable channel drop for ultra DWDM

Tunable sources

Optical sensing

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

Luna Innovations

On FindLight:

since 2016

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are the applications of the Fiber Fabry-Perot Tunable Filter?

The applications of the Fiber Fabry-Perot Tunable Filter include optical coherence tomography, optical performance monitoring, spectrum analysis, tunable optical noise filtering, tunable channel drop for ultra DWDM, tunable sources, and optical sensing.

What are the key features of the Fiber Fabry-Perot Tunable Filter?

The key features of the Fiber Fabry-Perot Tunable Filter include an all-fiber platform, high resolution and low loss design, super-cavity finesse, vibration and shock resistance, and thermal stability.

Is the Fiber Fabry-Perot Tunable Filter customizable?

Yes, the Fiber Fabry-Perot Tunable Filter is customizable with a customizable center wavelength, free spectral range, finesse, and bandwidth.

What is the Fiber Fabry-Perot Tunable Filter?

The Fiber Fabry-Perot Tunable Filter is a patented all-fiber platform that achieves high finesse and maintains low loss in a rugged package.

What is the operating wavelength range of the Fiber Fabry-Perot Tunable Filter?

The operating wavelength range of the Fiber Fabry-Perot Tunable Filter is 1520-1570 nm.
