Description

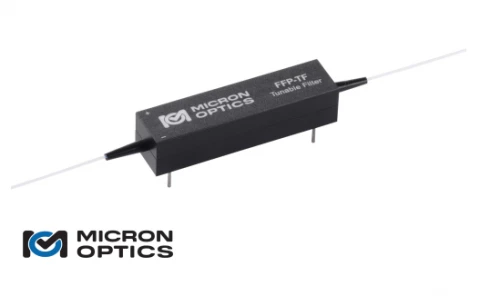

Micron Optics’ patented FFP-TF, fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction. There are no collimating optics or lenses, thus with the FFP tunable filter Micron Optics has eliminated the pitfalls of other Fabry-Perot component technologies, including misalignment, environmental sensitivity, and extraneous modes.
Fiber Fabry-Perot Tunable Filter - 650 Finesse
Specifications
| Operating Wavelength Range: | 1520 – 1570 nm |
|---|---|
| Free Spectral Range: | 12500 GHz |
| Finesse: | 650 |
| Bandwidth: | 19 GHz |
| Insertion Loss: | 2.5 dB |
| Input Power: | 50 mW |
Download Data Sheet
Features
- All-fiber platform
- High resolution and low loss design
- Super-cavity finesse
- Vibration and shock resistant
- Thermally stable
- Fast scanning permits fast, accurate measurements
Applications
- Optical Coherence Tomography
- Optical performance monitoring
- Spectrum analysis
- Tunable optical noise filtering
- Tunable channel drop for ultra DWDM
- Tunable sources
- Optical sensing
Frequently Asked Questions
What are the key features of the Fiber Fabry-Perot Tunable Filter?
The key features of the Fiber Fabry-Perot Tunable Filter include an all-fiber platform, high resolution and low loss design, super-cavity finesse, vibration and shock resistance, thermally stable, and fast scanning that permits fast, accurate measurements.
What are the applications of the Fiber Fabry-Perot Tunable Filter?
The applications of the Fiber Fabry-Perot Tunable Filter include Optical Coherence Tomography, Optical performance monitoring, Spectrum analysis, Tunable optical noise filtering, Tunable channel drop for ultra DWDM, Tunable sources, and Optical sensing.
What are the optical properties of the Fiber Fabry-Perot Tunable Filter?
The optical properties of the Fiber Fabry-Perot Tunable Filter include operating wavelength range, free spectral range, finesse, bandwidth, insertion loss, and polarization dependent loss.
What is the Fiber Fabry-Perot Tunable Filter?
The Fiber Fabry-Perot Tunable Filter is a patented, lensless all-fiber construction that achieves high finesse and maintains low loss in a rugged package.
What are the environmental properties of the Fiber Fabry-Perot Tunable Filter?
The environmental properties of the Fiber Fabry-Perot Tunable Filter include operating temperature, change in voltage, and change in insertion loss.
