Fiber Fabry-Perot Tunable Filter 2 - 2,000 Finesse
Description

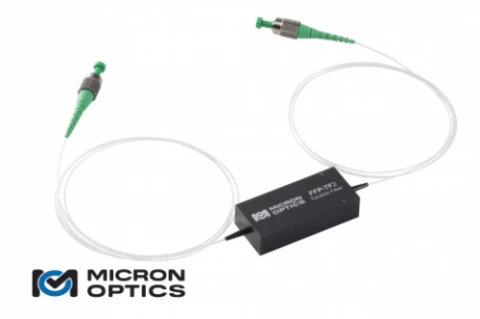

Micron Optics’ patented FFP-TF2, Fiber Fabry-Perot (FFP) Tunable FilterFFP-TF2, Fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction.
There are no collimating optics or lenses, thus with the FFP tunable filter Micron Optics has eliminated the pitfalls of other Fabry-Perot component technologies, including misalignment, FFP tunable filter is the lensless all-fiber construction. There are no collimating optics or lenses, thus with the FFP tunable filter Micron Optics has eliminated the pitfalls of other Fabry-Perot component technologies, including misalignment, environmental sensitivity, and extraneous modes.
The FFP tunable filter follows the Airy function so closely that engineers can design it into the optoelectronic OEM systems knowing that it will provide results very close to the theoretical mathematical model. The FFP-TF2 design provides improved etalon alignment for stable long-term, high reliability, and Telcordia-qualified performance at a more attractive price. Several standard low cost configurations are readily available for quick delivery. Custom high performance multi-band configurations are also available for special uses including sensing, biotech, and scientific applications.
Fiber Fabry-Perot Tunable Filter 2 - 2,000 Finesse
Specifications |
|
|---|---|
| Operating Wavelength Range: | 1,520-1,570nm |
| Free Spectral Range: | 15,000 GHz |
| Finesse: | 2,000 |
| Bandwidth: | 7.5 GHz |
| Insertion Loss: | 3.0 dB |
| Input Power: | 15 mW |
Features
- Optical Performance Monitoring
- Spectrum Analysis
- Tunable Optical Noise Filtering
- Tunable Channel Drop for Ultra DWDM
- Tunable Sources
- Optical Sensing
Applications
- Optical Performance Monitoring
- Spectrum Analysis
- Tunable Optical Noise Filtering
- Tunable Channel Drop for Ultra DWDM
- Tunable Sources
- Optical Sensing
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The key features of the FFP-TF2 Fiber Fabry-Perot Tunable Filter include optical performance monitoring, spectrum analysis, tunable optical noise filtering, tunable channel drop for ultra DWDM, tunable sources, and optical sensing applications.
Several standard low-cost configurations are readily available for quick delivery, and custom high-performance multi-band configurations are also available for special uses including sensing, biotech, and scientific applications.
The lensless all-fiber construction of the FFP-TF2 Fiber Fabry-Perot Tunable Filter eliminates the pitfalls of other Fabry-Perot component technologies, including misalignment, environmental sensitivity, and extraneous modes.
The FFP-TF2 Fiber Fabry-Perot Tunable Filter provides improved etalon alignment for stable long-term, high reliability, and Telcordia-qualified performance at a more attractive price.
The FFP-TF2 Fiber Fabry-Perot Tunable Filter is a patented all-fiber platform that achieves high finesse and maintains low loss in a rugged package.
