Description

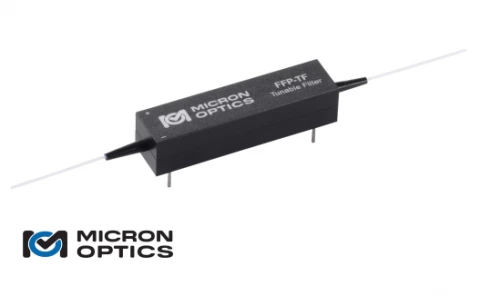

Micron Optics’ patented FFP-TF, fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction. There are no collimating optics or lenses, thus with the FFP tunable filter Micron Optics has eliminated the pitfalls of other Fabry-Perot component technologies, including misalignment, environmental sensitivity, and extraneous modes.
Fiber Fabry-Perot Tunable Filter - 2,000 Finesse
Specifications
Operating Wavelength Range: | 1520 – 1570 nm |
---|---|
Free Spectral Range: | 15000 GHz |
Finesse: | 2000 |
Bandwidth: | 7.5 GHz |
Insertion Loss: | 3 dB |
Input Power: | 15 mW |
Features
- All-fiber platform
- High resolution and low loss design
- Super-cavity finesse
- Vibration and shock resistant
- Thermally stable
- Fast scanning permits fast, accurate measurements
Applications
- Optical Coherence Tomography
- Optical performance monitoring
- Spectrum analysis
- Tunable optical noise filtering
- Tunable channel drop for ultra DWDM
- Tunable sources
- Optical sensing
Frequently Asked Questions
What is the Fiber Fabry-Perot Tunable Filter?
The Fiber Fabry-Perot Tunable Filter is a patented all-fiber platform that achieves high finesse and low loss in a rugged package. It is designed for optical coherence tomography, optical performance monitoring, spectrum analysis, tunable optical noise filtering, tunable channel drop for ultra DWDM, tunable sources, and optical sensing.
What are the optical properties of the Fiber Fabry-Perot Tunable Filter?
The optical properties of the Fiber Fabry-Perot Tunable Filter include an operating wavelength range of 1520-1570 nm, a free spectral range of 15,000-27,500 GHz, a finesse of 650-10,000, a bandwidth of 2.8-319 GHz, an insertion loss of <2.5-<4 dB, and a polarization dependent loss of <0.2 dB.
What are the key features of the Fiber Fabry-Perot Tunable Filter?
The key features of the Fiber Fabry-Perot Tunable Filter include an all-fiber platform, high resolution and low loss design, super-cavity finesse, vibration and shock resistance, thermal stability, and fast scanning that permits fast and accurate measurements.
What are the environmental properties of the Fiber Fabry-Perot Tunable Filter?
The Fiber Fabry-Perot Tunable Filter has an operating temperature range of -20 to 80 C, a change in voltage of <12 V, and a change in insertion loss of <0.5 dB. It is Telcordia GR 2883 qualified and has proven reliability over decades of use.
What are the applications of the Fiber Fabry-Perot Tunable Filter?
The Fiber Fabry-Perot Tunable Filter is used in optical coherence tomography, optical performance monitoring, spectrum analysis, tunable optical noise filtering, tunable channel drop for ultra DWDM, tunable sources, and optical sensing.
