Description
Aoshi Control – Advanced Fiber Optic Gyroscope (FOG) and Inertial Navigation Solutions
Aoshi Control specializes in the research, development, production, and sales of advanced navigation and sensing technologies, including fiber optic gyroscopes (FOG), inertial navigation systems (INS), special optical fibers, precision fiber coils, and Y-waveguide components.
Through years of dedicated research, we have developed a comprehensive range of high-, medium-, and low-precision FOG series and north-seeking systems, recognized for their superior quality, reliable performance, and cost-effectiveness.
Looking forward, Aoshi Control aims to expand market reach, broaden application areas, and develop ultra-high-precision FOGs. We are also establishing China’s largest production line for inertial products and optoelectronic devices, targeting an annual production capacity of 100,000–300,000 FOG axes.

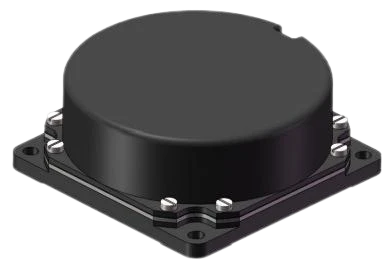

AF-1070B Enhanced Performance Single-Axis FOG
Specifications |
|
|---|---|
| Angular Rate: | -500 – 500 deg/sec |
| Bandwidth (min): | 300 Hz |
| Turn-on Time: | ≤3 S |
| Dynamic Range: | -500～+500 /s |
| Bias: | ≤0.5 /h |
| Bias Stability: | ≤0.05 °/h |
| Bias Repeatability: | ≤0.05 °/h |
| Scale Factor Nonlinearity: | ≤100 ppm |
| Scale Factor Asymmetry: | ≤100 ppm |
| Scale Factor Repeatability: | ≤100 ppm |
| Random Walk Coefficient: | ≤0.003 °/ √h |
| Threshold: | ≤0.1 °/h |
| Power Supply: | ±5 V |
| Power Consumption: | ≤6 W |
| Dimensions: | 70×70×28 mm |
Applications
Our products are widely applied across multiple industries, including:
- Aerospace & Aviation – flight navigation, satellite attitude control, and aircraft stabilization
- Maritime Navigation & Deep-Sea Exploration – ship guidance, dynamic positioning, subsea navigation, and offshore operations
- Underground Mining & Tunneling – heading control and orientation in GPS-denied environments
- Vehicle Control & Autonomous Systems – robotics, defense systems, driverless vehicles, and precision navigation
- Surveying & Geophysical Exploration – directional drilling, borehole orientation, and geophysical surveys
- Railway & Transportation – train positioning, track monitoring, and automated transit systems
