Description
Aoshi Control – Expert in Fiber Optic Gyroscopes (FOG) and Inertial Navigation Systems (INS)
Aoshi Control specializes in the research, development, production, and sales of advanced navigation and sensing technologies, including fiber optic gyroscopes (FOG), inertial navigation systems (INS), special optical fibers, precision fiber coils, and Y-waveguide components.
Through years of dedicated research, we have developed a complete range of high-, medium-, and low-precision FOG series and north-seeking systems, known for their superior quality, reliable performance, and cost-effectiveness.
Looking ahead, Aoshi Control plans to expand market reach, broaden application fields, and develop ultra-high-precision FOGs. The company is also establishing China’s largest production line for inertial products and optoelectronic devices, targeting an annual production capacity of 100,000–300,000 FOG axes.

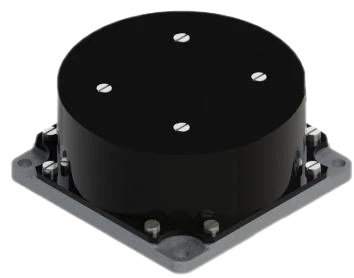

AF-1070A High-Reliability Single-Axis FOG for Harsh Environments
Specifications |
|
|---|---|
| Angular Rate: | -300 – 300 deg/sec |
| Turn-on Time: | ≤5 S |
| Dynamic Range: | -300～+300 °/s |
| Bias: | ±0.5 °/h |
| Bias Stability(10s, Smooth, 1σ): | ≤0.03 °/h |
| Bias Repeatability(10s, Smooth, 1σ): | ≤0.03 °/h |
| Scale Factor: | 12000000 LSB/(/s) |
| Scale Factor Non Linearity: | ≤30 ppm |
| Scale Factor Asymmetry: | ≤30 ppm |
| Scale Factor Repeatability: | ≤50 ppm |
| Scale Factor Range: | ≤150 ppm |
| Random Walk Coefficient: | ≤0.002 / √h |
| Threshold: | ≤0.08 °/h |
| Power Supply: | ±5 V |
| Power Consumption: | ≤6 W |
| Dimensions: | 70×70×32 mm |
Applications
Our products are widely applied in a variety of industries and applications, including:
- Aerospace & Aviation – aircraft navigation, satellite attitude control, and flight stabilization
- Maritime Navigation & Deep-Sea Exploration – ship guidance, dynamic positioning, and subsea navigation
- Underground Mining & Tunneling – heading control and orientation in GPS-denied environments
- Vehicle Control & Autonomous Systems – robotics, defense vehicles, and driverless navigation
- Surveying & Geophysical Exploration – borehole orientation, directional drilling, and geological surveys
- Railway & Transportation – train positioning, track monitoring, and automated transit systems
