Description
Aoshi Control – Advanced Fiber Optic Gyroscope (FOG) and Inertial Navigation Solutions
Aoshi Control specializes in the research, development, production, and sales of advanced navigation and sensing technologies, including fiber optic gyroscopes (FOG), inertial navigation systems (INS), special optical fibers, precision fiber coils, and Y-waveguide components.
Over years of dedicated research, we have developed a complete range of high-, medium-, and low-precision FOG series and north-seeking systems, recognized for their superior quality, reliable performance, and cost-effectiveness.
Looking ahead, we plan to expand market reach, broaden application fields, and develop ultra-high-precision FOGs. Additionally, we are building China’s largest production line for inertial products and optoelectronic devices, with a projected annual production capacity of 100,000–300,000 FOG axes.

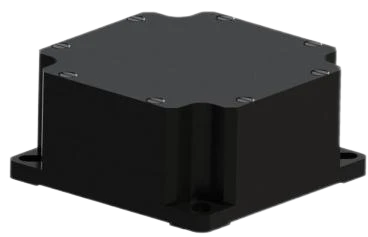

AF-1060F High-Fidelity Single-Axis FOG for Precision Measurements
Specifications |
|
|---|---|
| Angular Rate: | -400 – 400 deg/sec |
| Bandwidth (min): | 200 Hz |
| Dynamic Range: | -400～+400 /s |
| Bias: | ±0.5 °/h |
| Bias Stability: | ≤0.05 /h |
| Bias Repeatability(10s, Smooth, 1σ): | ≤0.05 °/h |
| Scale Factor Nonlinearity: | ≤50 ppm |
| Scale Factor Asymmetry: | ≤50 ppm |
| Scale Factor Repeatability: | ≤50 ppm |
| Random Walk Coefficient: | ≤0.003 °/ √h |
| Power Supply: | ±5 V |
| Power Consumption: | ≤4 W |
| Dimensions: | 60×60×28 mm |
Applications
Our products are widely applied across a broad range of industries and scenarios, including:
- Aerospace & Aviation – aircraft navigation, attitude control, satellite systems, and flight stabilization
- Maritime Navigation & Offshore Operations – ship guidance, dynamic positioning, underwater navigation, and deep-sea exploration
- Underground Mining & Tunneling – heading control, orientation tracking, and GPS-denied navigation
- Vehicle Control & Autonomous Systems – robotics, defense systems, driverless vehicles, and precision vehicle navigation
- Surveying & Geophysical Exploration – borehole orientation, geological surveys, and directional drilling
- Railway & Transportation – train positioning, track monitoring, and automated transportation systems
