Description
Aoshi Control – Leader in Fiber Optic Gyroscopes (FOG) and Inertial Navigation Systems (INS)
Aoshi Control specializes in the research, development, production, and sales of advanced navigation and sensing technologies, including fiber optic gyroscopes (FOG), inertial navigation systems (INS), special optical fibers, precision fiber coils, and Y-waveguide components.
Through years of focused research, we have developed a complete range of high-, medium-, and low-precision FOG series and north-seeking systems, renowned for their superior quality, reliable performance, and cost-effectiveness.
Looking forward, Aoshi Control aims to expand market reach, broaden application fields, and develop ultra-high-precision FOGs. The company is also establishing China’s largest production line for inertial products and optoelectronic devices, targeting an annual production capacity of 100,000–300,000 FOG axes.

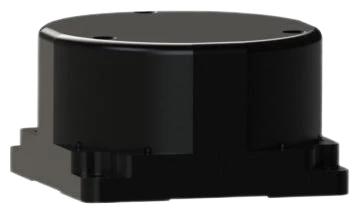

AF-1050Y Rapid Response Single-Axis Fiber Optic Gyroscope
Specifications |
|
|---|---|
| Angular Rate: | -400 – 400 deg/sec |
| Bandwidth (min): | 300 Hz |
| Turn-on Time: | ≤3 S |
| Dynamic Range: | -400～+400 °/s |
| Bias: | ≤1.5 °/h |
| Bias Stability(10s, Smooth, 1σ): | ≤0.15 °/h |
| Bias Repeatability(10s, Smooth, 1σ): | ≤0.15 °/h |
| Scale Factor Nonlinearity: | ≤50 ppm |
| Scale Factor Asymmetry: | ≤50 ppm |
| Scale Factor Repeatability: | ≤50 ppm |
| Data Stable Output Time: | ≤5 S |
| Bias Stability Over Temperature(10s, Smooth, 1σ): | ≤0.4 °/h |
| Random Walk Coefficient: | ≤0.01 °/ √h |
| Threshold: | ≤0.5 °/h |
| Power Supply: | ±5 V |
| Dimensions: | 50×50×28 mm |
Applications
Our products are widely applied in:
- Aerospace & Aviation – aircraft navigation, satellite attitude control, and flight stabilization
- Maritime Navigation & Deep-Sea Exploration – ship guidance, dynamic positioning, and subsea navigation
- Underground Mining & Tunneling – heading control and orientation in GPS-denied environments
- Vehicle Control & Autonomous Systems – robotics, defense vehicles, and driverless navigation
- Surveying & Geophysical Exploration – directional drilling, borehole orientation, and geological surveys
- Railway & Transportation – train positioning, track monitoring, and automated transit systems
