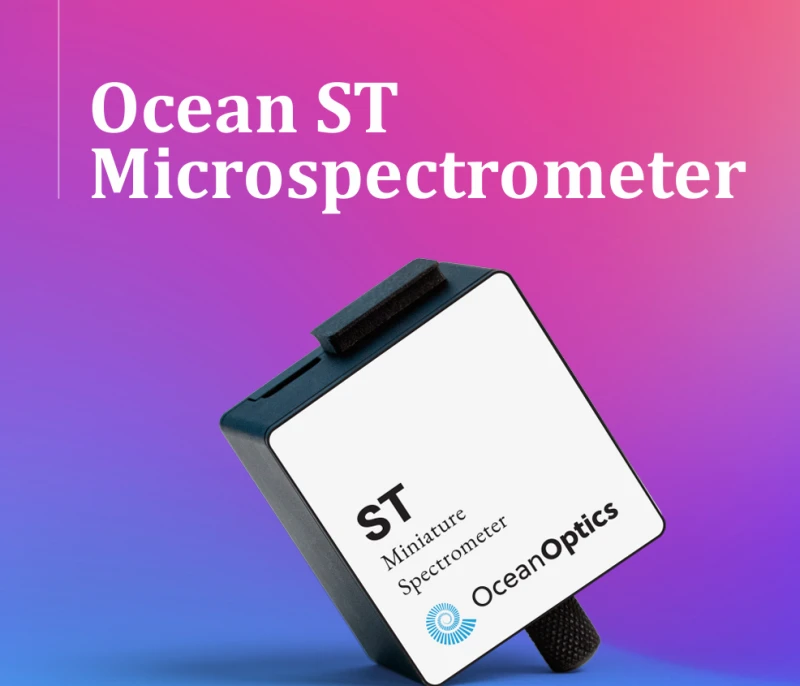

Ocean ST Vis Microspectrometer

Name: Ocean ST Vis Microspectrometer
Brand: Ocean Optics
Availability: InStock

Description

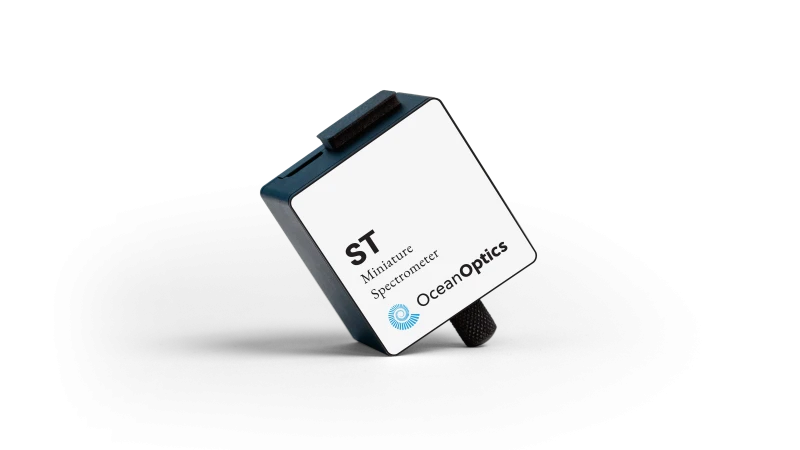

Ocean ST-VIS Ultra-Compact Microspectrometer (350–810 nm)

The Ocean ST-VIS microspectrometer is an ultra-compact visible-light spectral analysis system designed for OEM integration, embedded instrumentation, and space-constrained optical measurement applications. Covering the 350–810 nm wavelength range, it delivers high-fidelity spectral performance in an extremely small footprint of just 42 × 40 × 26 mm.

Despite its miniature size, the ST-VIS provides high signal-to-noise performance and stable spectral output, making it suitable for both laboratory-grade measurements and embedded industrial systems. Its replaceable slit architecture allows users to optimize the trade-off between optical resolution and throughput depending on application requirements.

The spectrometer is built for seamless system integration, featuring USB-C connectivity, RS-232 support, and full compatibility with the OceanDirect SDK for custom software development, automation, and OEM deployment.

Typical applications include:

LED color and spectral characterization
display and lighting quality control
colorimetry and reflectance measurement
thin film and coating analysis
OEM embedded spectroscopic instrumentation
inline industrial optical monitoring

Specifications

Wavelength Range (reflectance):	350 – 810 nm
Resolution:	2.2 nm
Minimum Scan Time:	Not Specified
Wavelength Range:	350-810 nm (Vis-NIR)
Optical Resolution (w/25 µm Slit):	2.2 nm (FWHM)
Signal To Noise Ratio:	190:1 (single scan @ 10 ms)
Minimum Integration Time:	3.8 ms
Integration Time:	3.8 ms - 6 s
Stray Light:	2.0 AU
Scan Rate:	160 Hz (non-buffered)
A/D Resolution:	14-bit
Thermal Wavelength Drift:	0.02 nm/°C
Temperature (operation):	0 °C to 55 °C
Temperature (storage):	-30 °C to 70 °C
High Speed Average Mode:	Yes
Interfaces:	USB, RS-232
Connector:	USB Type-C, Samtec™ TFM-108-02-L-DH
Dimensions:	42.1 mm (w) x 40.3 mm (d) x 26.6 mm (h)
Weight:	70.4 g

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Wavelength coverage: 350–800 nm (visible) for color measurement, LED characterization, and reflectance studies.
Ultra-compact footprint: 42 × 40 × 26 mm, 70 g.
High SNR: Up to 2250:1 (in high-speed averaging mode).
Connectivity: USB-C interface for fast, reliable data transfer.
Thermal stability: Minimal drift supports reproducible visible-light measurements.
Software & integration: Cross-platform OceanDirect™ SDK with API access for custom development.
OEM-friendly: Ideal for integration into compact VIS instruments, QA stations, and portable analyzers.

Applications

The Ocean ST-VIS Microspectrometer is ideal for compact, high-fidelity spectral measurements in the visible range, supporting research, industrial, and OEM environments. Common applications include:

LED color and intensity measurement – Accurate spectral profiling of LEDs and displays in the 350–800 nm range.
Colorimetry and reflectance analysis – Quantify color, brightness, and reflectivity in materials and surfaces.
Thin film thickness and uniformity analysis – Evaluate coatings and layers using visible light signatures.
Quality control in manufacturing – Monitor product consistency and detect defects.
OEM integration into analytical instruments – Compact visible-light detection for embedded systems.
General VIS spectroscopy for research and industry – Versatile, compact measurements in the visible spectrum.

Why Choose the Ocean ST-VIS Microspectrometer?
With its compact form factor, 350–800 nm spectral coverage, and high signal fidelity, the Ocean ST-VIS is an excellent choice for engineers, researchers, and OEM developers who require reliable and space-efficient visible-light spectroscopy. Whether used in laboratory testing, quality assurance, or integrated into custom devices, it delivers precision and reproducibility where space and stability matter most.

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Ships from:: United States
Sold by:: Ocean Optics ✓ Verified Supplier
On FindLight:: since 2017

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the Ocean ST Vis microspectrometer?

The Ocean ST is a powerful microspectrometer that provides excellent Vis response, high-speed spectral acquisition, and high signal to noise ratio performance in an ultra-compact footprint.

What applications is the Ocean ST compact spectrometer suitable for?

The Ocean ST is ideal for everyday lab use and integration into other devices and setups where space is limited. Applications range from DNA absorbance to color characterization.

What wavelength ranges does the Ocean ST cover?

The Ocean ST covers UV-Vis (185-650 nm), Vis-NIR (350-810 nm), and NIR (645-1085 nm) wavelength ranges.

What is the optical resolution of the Ocean ST spectrometer?

The optical resolution of the Ocean ST with a 25 µm slit is 2.2 nm (FWHM), depending on the configuration.

How can the Ocean ST be customized for different applications?

The Ocean ST features a replaceable slit design, allowing users to choose a narrow slit width for light-rich applications or a wider entrance slit for low-light applications to optimize optical resolution and throughput.

What software is compatible with the Ocean ST microspectrometer?

The Ocean ST is compatible with Ocean Optics light sources, accessories, and OceanView software. It also comes with OceanDirect, a cross-platform Software Developers Kit (SDK) with an Application Programming Interface (API).

What are the dimensions and weight of the Ocean ST microspectrometer?

The dimensions of the Ocean ST are 42.1 mm (w) x 40.3 mm (d) x 26.6 mm (h), and it weighs 70.4 g.
