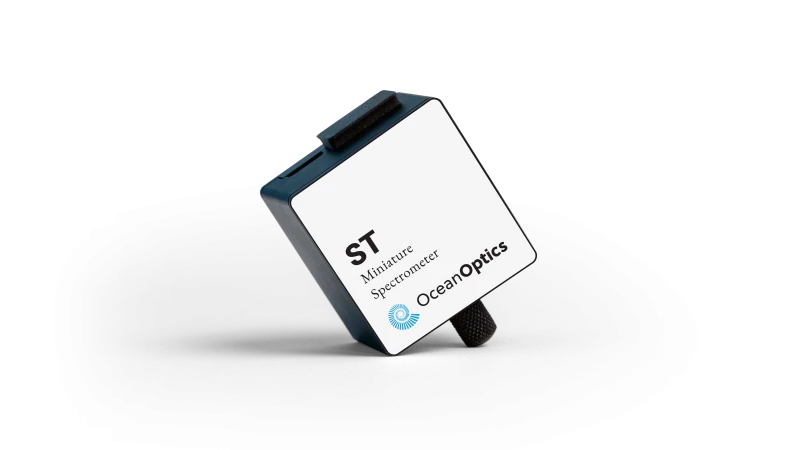

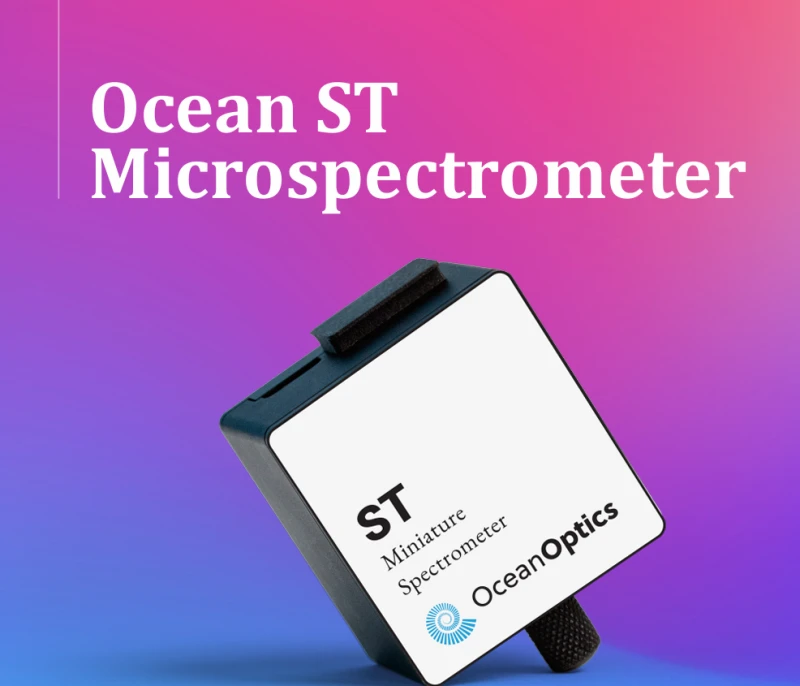

Ocean ST Microspectrometer: Compact, High-Performance UV-Vis-NIR Analysis
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Description
The Ocean ST Microspectrometer is a compact yet powerful solution for those seeking exceptional spectral performance in a small package. Despite its ultra-compact footprint, the Ocean ST delivers full spectral analysis with a performance level comparable to larger and more expensive spectrometers. This makes it an ideal choice for everyday laboratory use as well as integration into devices and setups where space is at a premium.
Designed for versatility, the Ocean ST offers options for UV, visible, and shortwave NIR wavelength coverage, providing great flexibility for a wide range of applications. Its replaceable slit design allows users to optimize optical resolution and throughput, catering to both light-rich and low-light applications. This adaptability ensures that users can achieve the best possible results for their specific needs.
Compatibility with Ocean Optics light sources, accessories, and OceanView software further enhances the utility of the Ocean ST microspectrometer. Its rugged design, thermal stability, and unit-to-unit reproducibility make it an attractive option for embedding into other instrumentation, as well as for use in inline process operations and at-line quality control stations.
Each Ocean ST microspectrometer comes with OceanDirect, a comprehensive Software Developers Kit (SDK) that includes an Application Programming Interface (API). This powerful tool allows users to optimize spectrometer performance and access critical data for analysis, adding significant value to the overall package.
Ocean ST Microspectrometer: Compact, High-Performance UV-Vis-NIR Analysis
Specifications |
|
|---|---|
| Wavelength Range (reflectance): | 185 – 1085 nm |
| Resolution: | 2.2 nm |
| Minimum Scan Time: | 0.0038 sec |
| Wavelength Range: | 185-650 nm (UV-Vis); 350-810 nm (Vis-NIR); 645-1085 nm (NIR) |
| Optical Resolution: | 2.2 nm (FWHM) |
| Signal To Noise Ratio: | 190:1 (single scan @ 10 ms); 2250:1 (1 second average, non-buffered) |
| Integration Time: | 3.8 ms-6 s |
| Dynamic Range: | 1000:1 (single scan) |
| Stray Light: | 2.0 AU |
| Scan Rate: | 160 Hz (non-buffered) |
| A/D Resolution: | 14-bit |
| Thermal Wavelength Drift: | 0.05 pixels/° C |
| Interfaces: | USB, RS-232 |
| Connector: | USB Type-C, Samtec™ TFM-108-02-L-DH |
| Dimensions: | 42.1 mm (w) x 40.3 mm (d) x 26.6 mm (h) |
| Weight: | 70.4 g |
Features
- Compact and Powerful: The Ocean ST Microspectrometer offers enhanced spectral performance in a compact footprint, delivering full spectral analysis comparable to larger and more expensive spectrometers.
- Versatile Applications: Ideal for everyday lab use and integration into other devices, it supports a range of applications from DNA absorbance to color characterization.
- Flexible Wavelength Coverage: Available options for UV, visible, and shortwave NIR wavelength coverage provide great application flexibility.
- Replaceable Slit Design: Optimize optical resolution and throughput with interchangeable slit widths. Choose narrow slits for high-resolution needs or wider slits for low-light applications.
- Compatibility: Works seamlessly with Ocean Optics light sources, accessories, and OceanView software to customize setups for various applications.
- Robust Design: Features rugged construction, thermal stability, and unit-to-unit reproducibility, making it suitable for embedding into instrumentation, inline processes, and at-line quality control stations.
- Software Developers Kit (SDK): Includes OceanDirect, a cross-platform SDK with an API, allowing users to optimize performance and access critical data for analysis.
Applications
- DNA Absorbance: Ideal for measuring DNA concentrations and purity through UV absorbance.
- Color Characterization: Useful for analyzing and characterizing colors in various materials and products.
- UV, Visible, and NIR Spectroscopy: Offers flexibility with options for UV, visible, and shortwave NIR wavelength coverage.
- Lab Use and Device Integration: Suitable for everyday laboratory use and integration into devices where space is limited.
- Light-Rich Applications: Use a narrow slit width for applications where high resolution is essential.
- Low-Light Applications: Opt for a wider entrance slit to allow more light into the spectrometer.
- Compatibility with Ocean Optics Accessories: Works seamlessly with Ocean Optics light sources, accessories, and OceanView software.
- Inline Process Operations: Ideal for embedding into instrumentation for continuous process monitoring.
- At-Line Quality Control: Suitable for quality control stations where space is a constraint.
Frequently Asked Questions
The Ocean ST is a powerful microspectrometer that provides excellent UV response, high-speed spectral acquisition, and high signal to noise ratio performance in an ultra-compact footprint. It offers full spectral analysis comparable to larger and more expensive spectrometers.
The Ocean ST microspectrometer covers the following wavelength ranges: 185-650 nm (UV-Vis), 350-810 nm (Vis-NIR), and 645-1085 nm (NIR).
The Ocean ST is ideal for everyday lab use and integration into other devices and setups where space is limited. Applications range from DNA absorbance to color characterization.
Key features include UV, visible, and shortwave NIR wavelength coverage, replaceable slit design for optimizing optical resolution and throughput, compatibility with Ocean Optics components and OceanView software, and a rugged design with thermal stability and unit-to-unit reproducibility.
The replaceable slit design allows users to choose a narrow slit width for light-rich applications where resolution is most important, or a wider entrance slit for low-light applications to allow more light into the spectrometer.
OceanDirect is a powerful, cross-platform Software Developers Kit (SDK) with an Application Programming Interface (API) included with each Ocean ST microspectrometer. It provides a library of functions to optimize spectrometer performance and access critical data for analysis.
The Ocean ST microspectrometer has dimensions of 42.1 mm (width) x 40.3 mm (depth) x 26.6 mm (height) and weighs 70.4 grams.
