Description

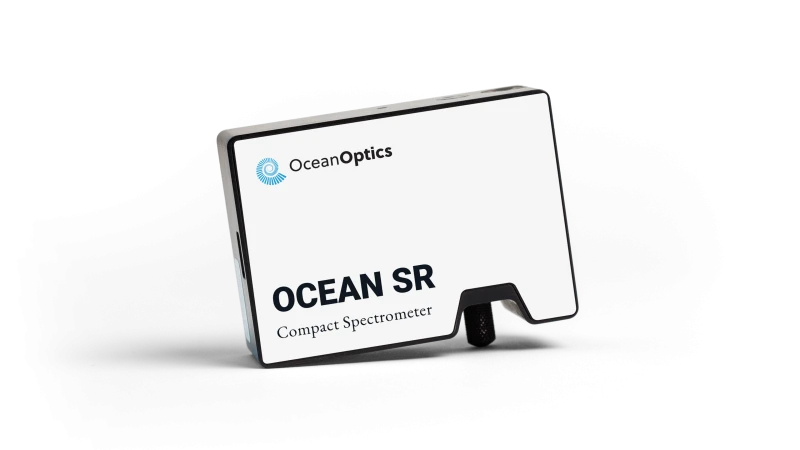

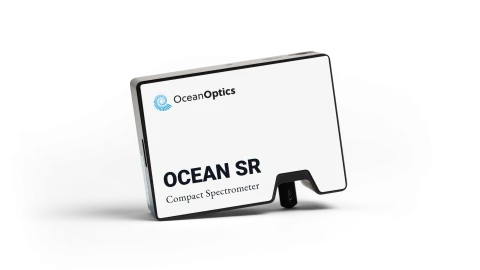

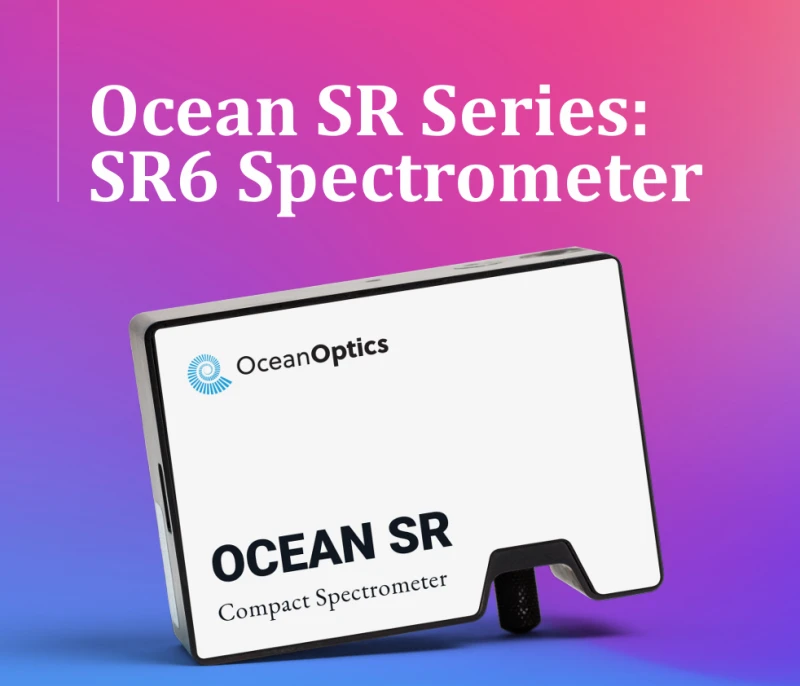

The Ocean SR Series SR6 Spectrometer is a compact and versatile spectrometer designed to deliver high spectral response, high optical resolution, and excellent thermal wavelength stability in a single, efficient package. Anchored by a 2048-element CCD-array detector and powerful electronics, the SR6 is an ideal choice for a wide range of applications, from controlled lab environments to industrial locations where temperature fluctuations can impact instrument performance. This adaptability makes the SR6 a valuable tool for both researchers and industry professionals alike.
One of the standout features of the SR6 is its versatility. It serves as both a standalone setup for laboratory use and a customizable system for high-volume industrial and OEM applications. The spectrometer is available in models covering wavelength ranges from approximately 180 to 1100 nm, with entrance slit options ranging from 5 µm to 200 µm. This flexibility allows users to optimize configurations by coupling the spectrometer with light sources, optical fibers, and sampling optics, tailoring it to meet the specific needs of their applications.
The SR6 spectrometer operates seamlessly with OceanView spectroscopy software and includes OceanDirect, a powerful cross-platform Software Developers Kit with an Application Programming Interface. OceanDirect provides a library of functions that enable users to write custom software solutions, optimize spectrometer performance, and access critical data for analysis. The High Speed Averaging Mode, a hardware-accelerated signal averaging tool included in OceanDirect, significantly enhances the spectrometer's signal-to-noise ratio (SNR) per unit time, promoting higher quality spectra and more accurate results.
Additional functionality of the SR6 includes trigger mode options that enable actions such as synchronizing spectral acquisition to external events or timing spectral acquisition to meet specific sampling conditions. This feature provides accurate timing and synchronization between the SR6 spectrometer and other devices, adding another layer of versatility to your spectral measurements. The SR6's compact dimensions and lightweight design further enhance its usability, making it a practical choice for a variety of settings.
Ocean SR6 Spectrometer: Compact, High-Resolution UV-Vis-NIR Instrument
Specifications |
|
|---|---|
| Wavelength Range (reflectance): | 180 – 1100 nm |
| Resolution: | 0.5 nm |
| Minimum Scan Time: | 0.0072 sec |
| Wavelength Range: | ~180-1100 nm |
| Optical Resolution: | ~0.50-2.03 |
| Optical Resolution (w/25 µm Slit): | ~0.60-2.03 |
| Dynamic Range (Single Scan): | 1300:1 |
| Dynamic Range: | 12000:1 (single scan) |
| Integration Time: | 7.2 ms-5 s |
| Signal-to-noise Ratio: | 3500:1 (per second, with High Speed Averaging Mode) |
| Stray Light: | 2.3 AU |
| Stray Light: | 1.7 AU (w/UV-visible model) |
| Thermal Stability: | 0.03 pixels/° C |
| Interfaces: | USB, RS-232, Ethernet |
| Connector: | USB Type-C, Samtec™ TFM-108-02-L-DH, RJ45 |
| A/D Resolution: | 16-bit |
| High Speed Average Mode: | Yes |
| Dimensions: | 88.1 mm x 63.5 mm x 31.4 mm |
| Weight: | 254 g |
Features
- Wide Wavelength Range: Covers ~180-1100 nm, making it suitable for a variety of applications in UV-Vis-NIR spectroscopy.
- High Optical Resolution: Offers an optical resolution of ~0.50-2.03 nm, ensuring precise spectral data.
- Dynamic Range: Features a dynamic range of 12000:1 (single scan), allowing for detailed and accurate measurements.
- High Sensitivity: Equipped with a 2048-element CCD-array detector for high spectral response and sensitivity.
- Excellent Thermal Stability: Maintains stability with 0.03 pixels/°C, ensuring consistent performance even with temperature fluctuations.
- Versatile Configurations: Offers entrance slit options from 5 µm to 200 µm, and interfaces with light sources, optical fibers, and sampling optics for tailored setups.
- Advanced Software Integration: Operates with OceanView spectroscopy software and includes OceanDirect SDK, allowing custom software solutions and optimized performance.
- High Speed Averaging Mode: Enhances signal-to-noise ratio (SNR) to 3500:1 per second, providing higher quality spectra and more accurate results.
- Trigger Mode Options: Enables synchronization of spectral acquisition with external events for precise timing and coordination.
- Compact and Lightweight: Measures 88.1 mm x 63.5 mm x 31.4 mm and weighs 254 g, making it easy to integrate into various setups.
- Multiple Interface Options: Includes USB, RS-232, and Ethernet interfaces for flexible connectivity.
- High A/D Resolution: Features a 16-bit A/D resolution for detailed and accurate data acquisition.
Applications
- Laboratory Research: The SR6 spectrometer is ideal for controlled lab environments, providing high spectral response and resolution.
- Industrial Applications: Suitable for use in industrial settings where temperature fluctuations may occur, thanks to its excellent thermal wavelength stability.
- OEM Applications: The SR6 can be customized for high-volume industrial and OEM applications, offering flexibility in design and configuration.
- Wavelength Range: Covers a wide range from ~180-1100 nm, making it versatile for various applications.
- Optical Resolution: Offers resolution ranging from ~0.50-2.03, providing detailed spectral data.
- Dynamic Range: Features a dynamic range of 12000:1 (single scan), allowing for a wide range of light intensity measurements.
- Integration Time: Adjustable integration time from 7.2 ms to 5 s, suitable for different measurement needs.
- Signal-to-Noise Ratio: High SNR of 3500:1 per second with High Speed Averaging Mode, ensuring clear and accurate spectral data.
Frequently Asked Questions
The SR6 Spectrometer has a wavelength range of approximately 180-1100 nm.
The SR6 uses a 2048-element CCD-array detector.
The SR6 Spectrometer operates with OceanView spectroscopy software and includes OceanDirect, a cross-platform Software Developers Kit.
The dynamic range of the SR6 is 12000:1 in single scan mode.
The SR6 offers excellent thermal wavelength stability with a thermal stability of 0.03 pixels/°C, making it suitable for environments with temperature fluctuations.
The SR6 offers USB, RS-232, and Ethernet interfaces, with connectors including USB Type-C, Samtec™ TFM-108-02-L-DH, and RJ45.
The High Speed Averaging Mode is a hardware-accelerated signal averaging tool that enhances the spectrometer's signal-to-noise ratio, promoting higher quality spectra and more accurate results.
