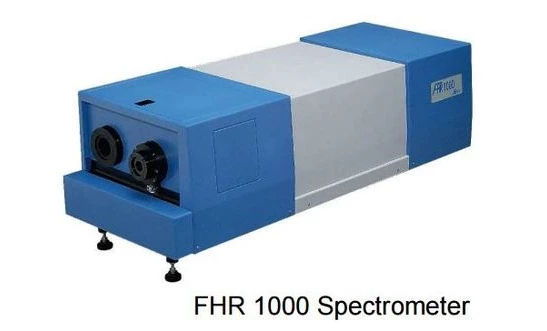

FHR 1000 Spectrometer

Name: FHR 1000 Spectrometer
Brand: HORIBA
Availability: InStock

Description

The new FHR 640 and FHR 1000 spectrometers offer a unique combination of drive speed, precision and high resolution, completely revolutionizing the large spectrometer market. The latest modifications in FHR technology are based on over ten years of testing by industrial and analytical systems specialists at HORIBA Jobin Yvon.

Designed for researchers who require high accuracy with immediate results, the versatility of the FHR allows for utilization over a wide spectral range, extending from the UV to the IR. The instrument’s cast body design accounts for temperature induced stress and expansion, preventing any significant wavelength shifts or signal loss and allowing for optimal performance.

Specifications

Monochromator Type:	Czerny-Turner
Effective Focal Length:	1000 mm
Diffraction Grating:	1200 lines/mm
Grating Blaze Wavelength:	Not Specified
Spectral Range:	150 – 1500 nm
Linear Dispersion (Avg):	0.8 nm/mm
Spectral Resolution (Avg):	0.01 nm

Download Data Sheet

Features

Spectrometry

Spectroscopy

Imaging

Applications

The direct grating drive features a grating speed of greater than 300 nm/second, offering users significantly reduced experiment times. Equipped with a fully automated wavelength drive and automated slits, the FHR is available in multiple monochromator and spectrograph configurations, offering a dual field at the exit for array detectors and compatibility with HORIBA Jobin Yvon’s full line of accessories. Superior in design, the FHR is the ideal long focal length spectrometer for performing fast acquisitions with high quality results.

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

HORIBA

On FindLight:

since 2016

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are the benefits of the FHR 1000 spectrometer's cast body construction?

The FHR 1000 spectrometer's cast body construction provides optimal performance without wavelength shifts and signal loss, even in the presence of temperature induced stress and expansion.

What software is compatible with the FHR 1000 spectrometer?

The FHR 1000 spectrometer is compatible with HORIBA Jobin Yvon SynerJY® Software, and LabVIEW VIs are available for simple and complete instrument control with full analysis capabilities.

What is the grating speed of the FHR 1000 spectrometer?

The FHR 1000 spectrometer features a direct grating drive with a grating speed of greater than 300 nm/second, offering users significantly reduced experiment times.

What is the FHR 1000 spectrometer?

The FHR 1000 spectrometer is a high-performance instrument designed for researchers who require high accuracy with immediate results.

What is the spectral range of the FHR 1000 spectrometer?

The FHR 1000 spectrometer can be utilized over a wide spectral range, extending from the UV to the IR.
