Description
easyLIGHT VUV is an intuitive and compact spectrograph for the VUV spectral range with competitive pricing. Spectral coverage extends from 80nm to 300nm. The aberration-corrected grating provides best-in-class efficiency of up to 43%.
The combined spectrograph and monochromator functionality gives highest flexibility. Entrance and/or exit slits are continuously adjustable manually or motorized.
Detector options include
- VUV CCDs for highest resolution and dynamic range
- MCP/CMOS detectors for broadest wavelength coverage and gated / intensified detection
- Photomultiplier detectors for scanning applications

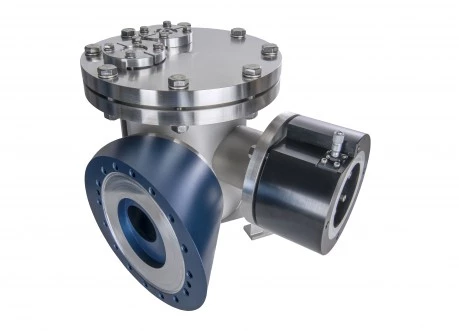

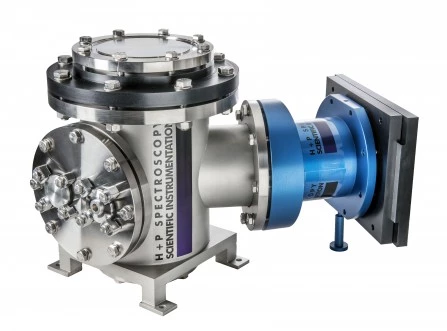

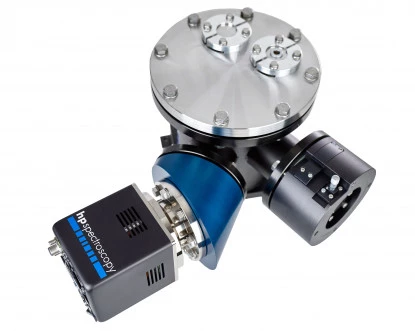

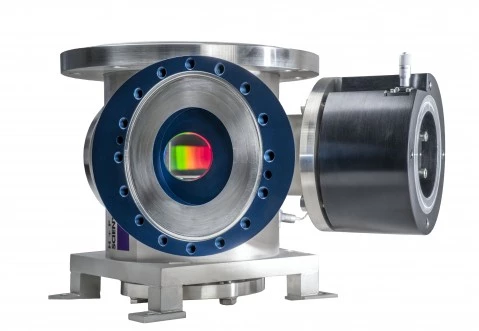

easyLIGHT - VUV Spectrometer
Specifications
| Monochromator Type: | Other |
|---|---|
| Effective Focal Length: | Not Specified |
| Diffraction Grating: | Not Specified |
| Grating Blaze Wavelength: | Not Specified |
| Spectral Range: | 80 – 300 nm |
| Linear Dispersion (Avg): | 2.5 nm/mm |
| Spectral Resolution (Avg): | 0.1 nm |
Download Data Sheet
Features
Versatile VUV spectrometer
- Spectrograph and monochromator functionality in the 80-300nm spectral range in one device
- Slits continuously adjustable manually or motorized
- Most compact spectrometer in its spectral range
Efficiency and accuracy
- Aberration-corrected grating with best-in-class efficiency
- High accuracy wavelength setting by closed loop micro-precision grating actuator
- Grating and slit positions controlled by software
- Stray-light suppression by double filter and anti-reflection chamber coating
- Wavelength selection with <0.05nm accuracy at the exit slit in monochromator mode
Frequently Asked Questions
Is the easyLIGHT VUV spectrometer customizable?
Yes, all spectrometers by HP Spectroscopy can be customized to match the desired application, with options such as interfacing to experimental chambers, adaption of the source distance, and integration of customer-supplied detectors.
What are the control interfaces for the easyLIGHT VUV spectrometer?
The control interfaces for the easyLIGHT VUV spectrometer are USB or Ethernet, with software options including Windows UI/Labview, C, and C++ SDK.
What are the operating pressure requirements for the easyLIGHT VUV spectrometer?
The operating pressure for the easyLIGHT VUV spectrometer is 1E-6mbar, with a UHV version being available.
What is the accuracy of wavelength selection at the exit slit in monochromator mode?
The wavelength selection accuracy at the exit slit in monochromator mode is <0.05nm.
What is the wavelength range of the easyLIGHT VUV spectrometer?
The easyLIGHT VUV spectrometer has a wavelength range of 80-300nm.
